9 - 28 Section 9-14 - Operator Panel
9-14-2 Operator Panel–Version 3
NOTE: Operation Panel, Version 3 (OP–3) was phased into production late 2005 for use on BT’05 and
newer systems.

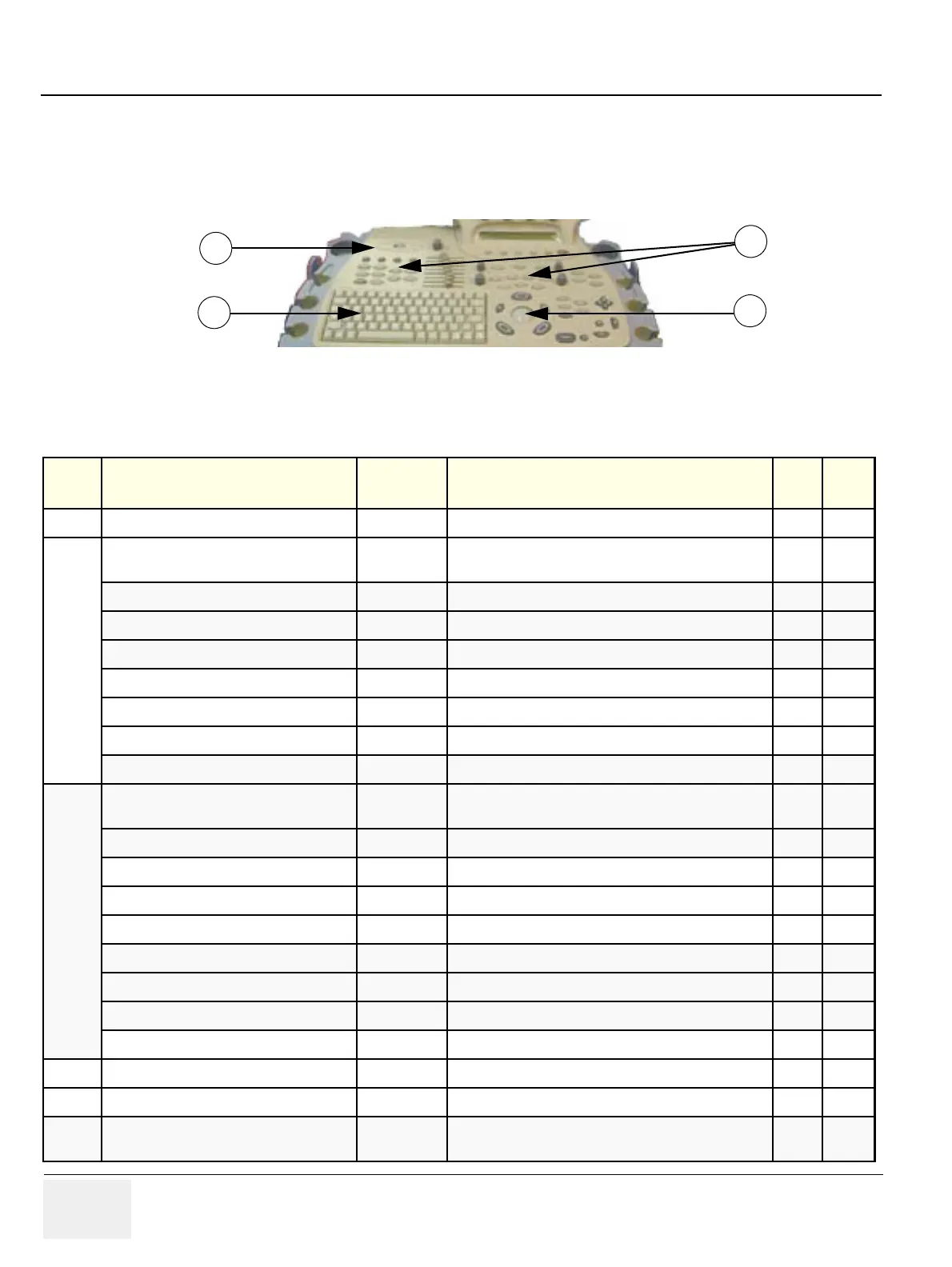

Figure 9-10 Operator Panel Parts
Table 9-22 OP–3 FRU Parts
ITEM PART NAME
PART
NUMBER DESCRIPTION QTY FRU
1 OPERATOR PANEL - ENGLISH FC200680 1Y
2
KEY TOPS FOR ALPHANUMERIC KEY-
BOARD
SEE
BELOW
--
UNIVERSAL 066E3101 ENGLISH 1 Y
FRENCH 066E3102 1 Y
GERMAN 066E3103 1 Y
SPANISH 066E3104 1 Y
ITALIAN 066E3106 1 Y
SWEDISH 066E3107 1 Y
NORWEGIAN 066E3108 1 Y
3
KEYTOPS FOR OPERATOR PANEL
SEE BE-
LOW
- -
KEYTOPS ENGLISH 066E2201 1 Y
KEYTOPS FRENCH 066E2202 1Y
KEYTOPS GERMAN 066E2203 1Y
KEYTOPS SPANISH 066E2204 1Y
KEYTOPS PORTUGUESE 066E2205 1 Y
KEYTOPS ITALIAN 066E2206 1 Y
KEYTOPS SWEDISH 066E2207 1 Y
KEYTOPS NORWEGIAN 066E2208 1Y
4 TRACKBALL 2404652-5 1Y
RING-OF-KEYS FD200113 1 N
V7 OP MAIN CONTROLLER BOARD
VER.2
066E2311 1 Y
1
2
3
4
To Next Page
