D2 Series Servo Drive User Manual Drive Tuning
HIWIN MIKROSYSTEM CORP. 6-15
Figure6.5.1.4
(5) Zoom in/out on the Y axis
To zoom in on the Y axis, press and hold the “Ctrl” button and the left mouse button to move the red
solid-line cursor or the right mouse button to move the dotted-line cursor to frame a suitable interval,
as shown in figure 6.5.1.5. Then, click
at the upper right corner of window to zoom in on the
graph within the selected interval on the Y axis, as shown in figure 6.5.1.6. At this time, the Y-axis
value of graph is locked and shown in red. Dragging the horizontal scroll bar does not dynamically
adjust the vertical display range, as shown in figure 6.5.1.7. Finally, if the icon of
is clicked, it will
return to the original graph of Y axis before the zoom-in, as shown in figure 6.5.1.5.

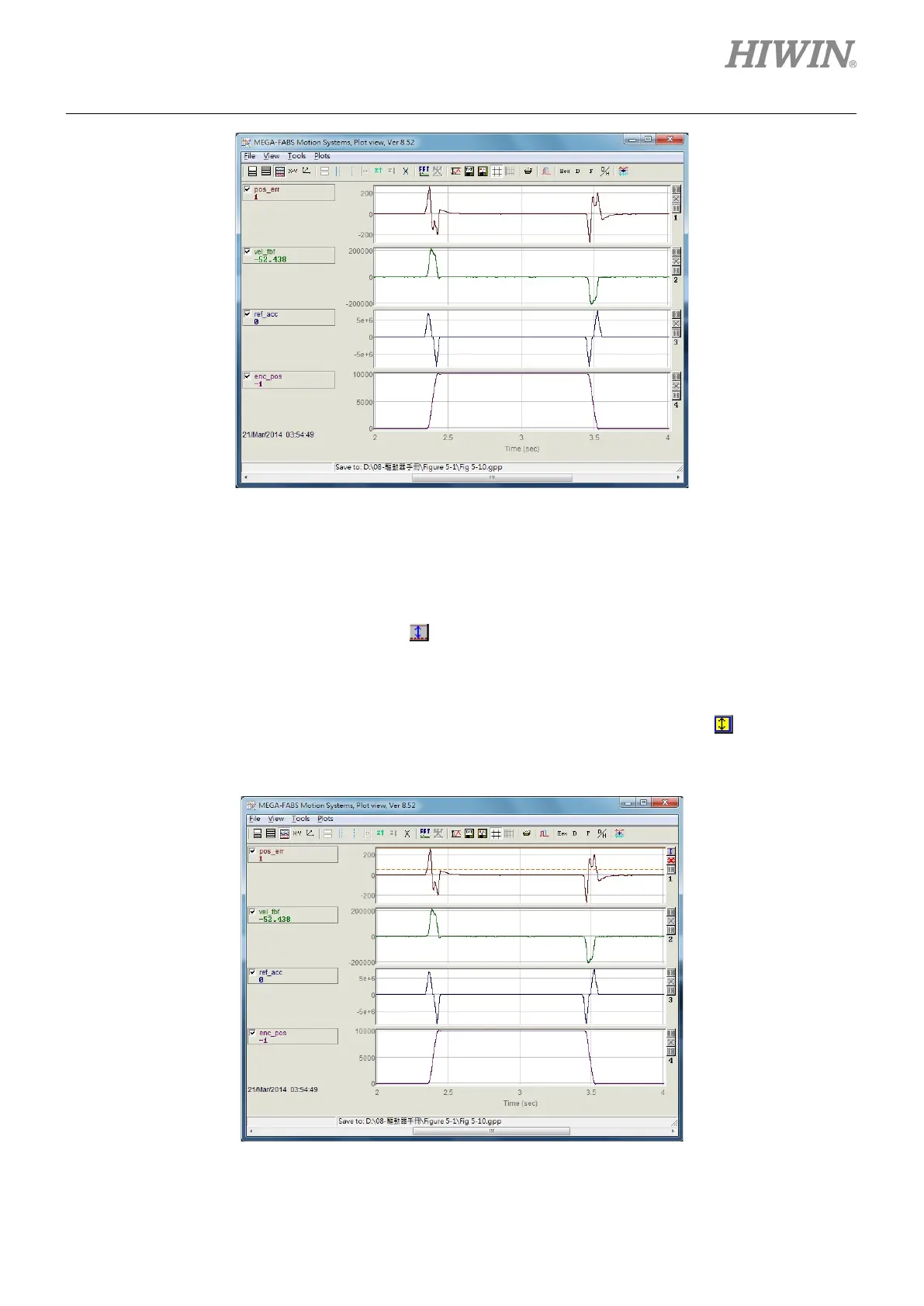

Figure6.5.1.5
