Air baffle
2
Fan 3
6. Remove the air baffle (
2
in Figure 210 on page 193).
AIRFLOW
AIRFLOW
AIRFLOW
AIRFLOW
AIRFLOW
svc00277
AIRFLOW
A
I
R
F
L
O
W
1
2

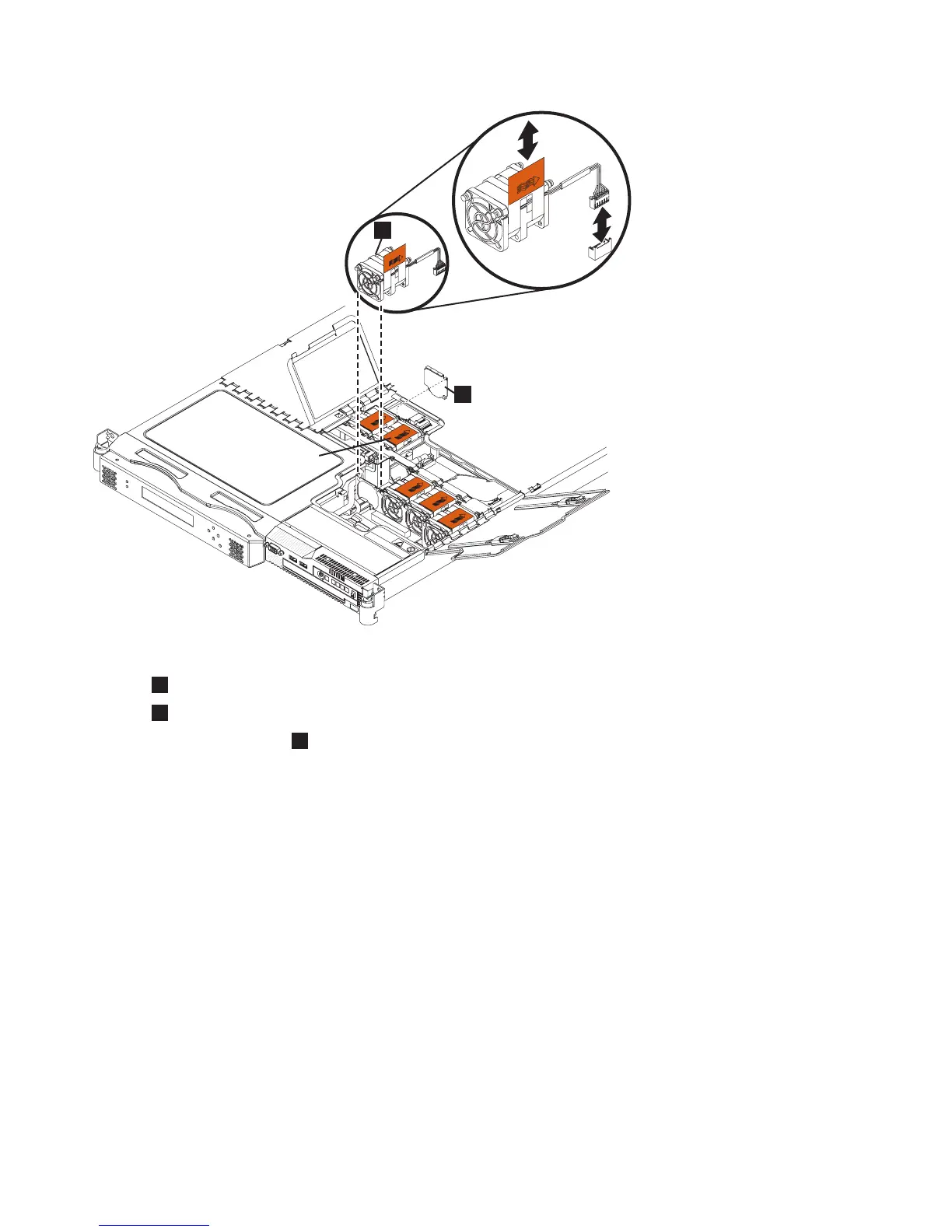

Figure 209. SAN Volume Controller 2145-8G4 fan 3
192 IBM SAN Volume Controller Hardware Maintenance Guide
