1
Cable routing slot
2
Air baffle
3
Baffle pins
4
Baffle mounting holes
7. Unplug the video cable
8
, the USB cable
7
and the CD/DVD cable
9
from the system board.
There is no need to completely remove these cables. Unplugging them makes it easier to maneuver
the light path ribbon cable
4
. In Figure 211 on page 194, the front of the node is at the bottom of
the illustration.
1
2
3
4
svc00250

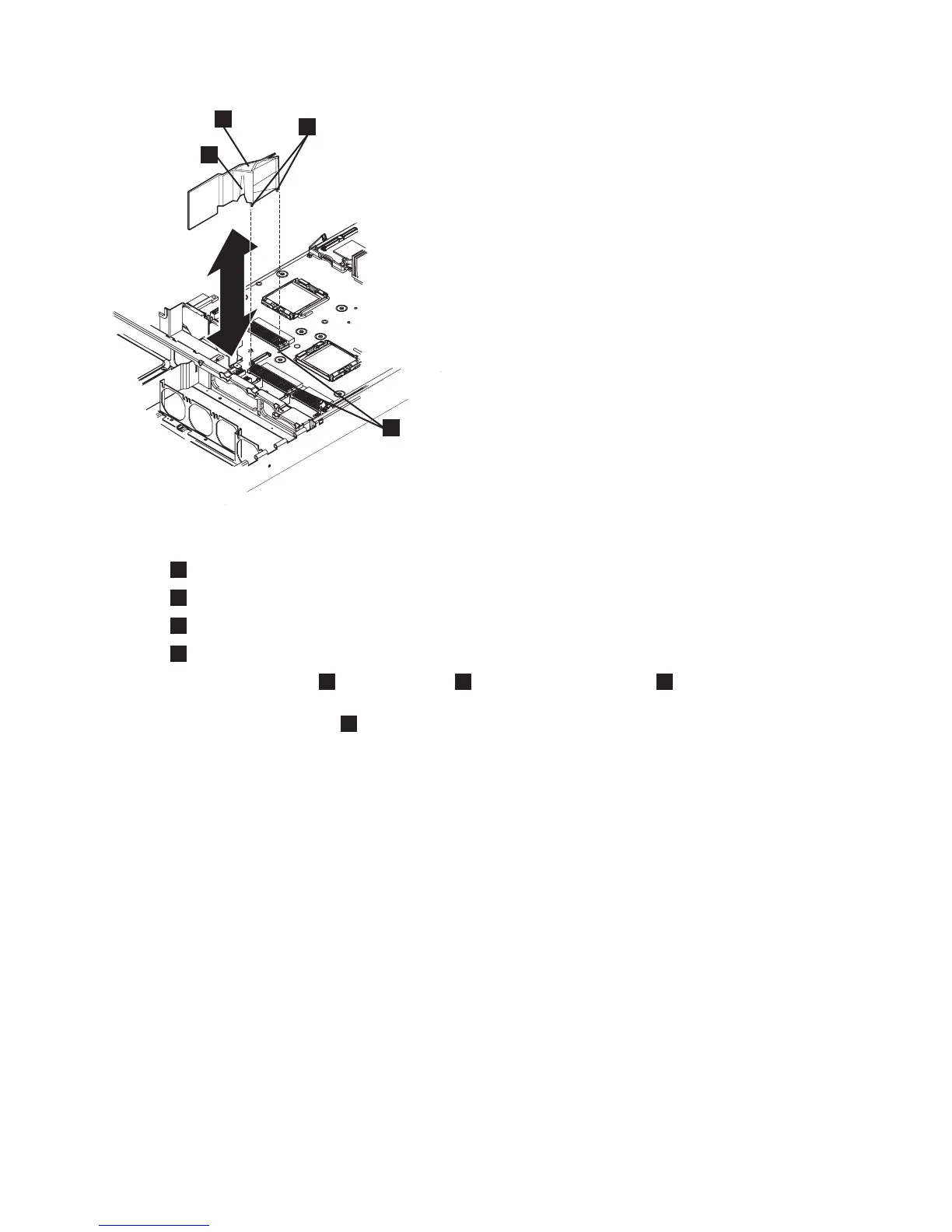

Figure 210. SAN Volume Controller 2145-8G4 air baffle
Chapter 2. Removing and replacing parts 193
