Programming Examples 5
Keysight Models 6811C, 6812C, and 6813C Programming Guide 245
Output trigger system model

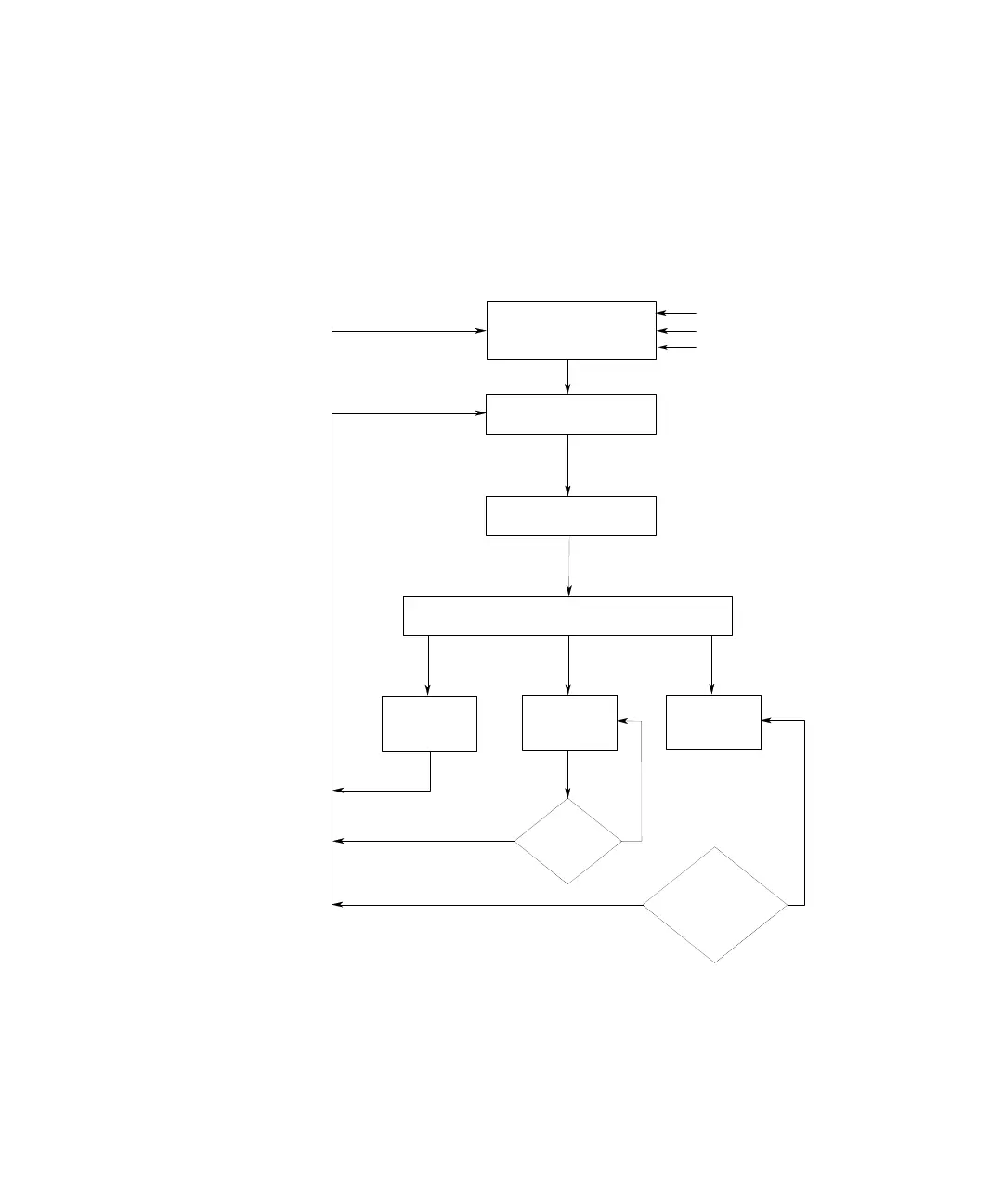

Figure 5-2 is a model of the output trigger system. The rectangular boxes
represent states. The arrows show the transitions between states. These are
labeled with the input or event that causes the transition to occur.
Figure 5-2 Model of output triggers
DELAYING STATE
STEP
INITIATED STATE
IDLE STATE
ABOR
*RCL
*RST
TRIGGER RECEIVED
DELAY COMPLETED
INIT[: IMM]
WAIT F OR SYNC STATE
INIT:CONT OF F
INIT:CONT ON
PULSE
COUNT
YES
NO
DONE?
CHANGE
PULSE
CHANGES
LIST
CHANGES
YES
NO
LIST
SYNC COMPLETED
OR
LIST:STEP ONCE
COMPLETE?
?
OR
LIST NOT COMPLETE &
LIST:STEP ONCE
OUTPUT
OUTPUT
OUTPUT
