Measurement trigger system model

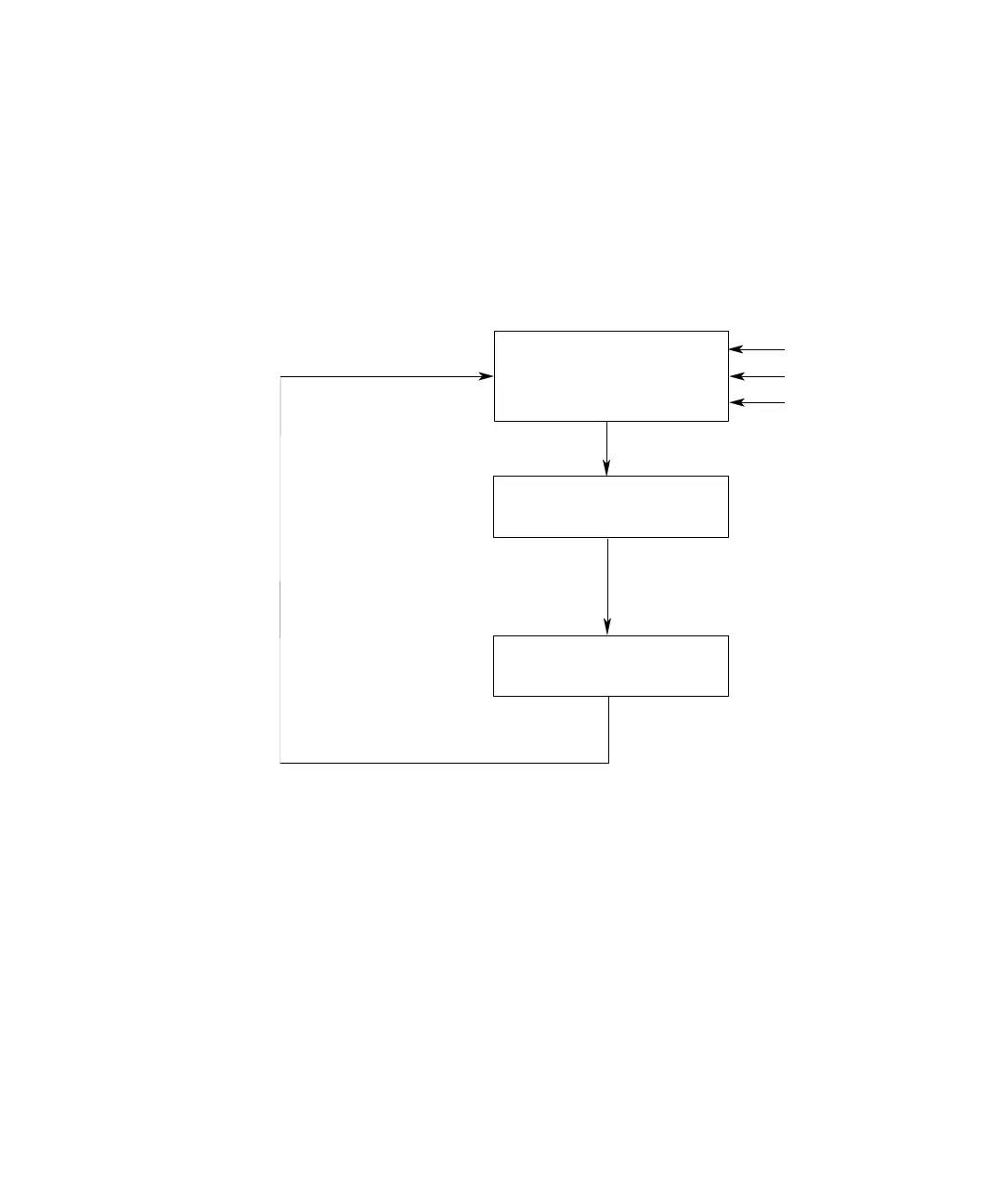

Figure 5-3 is a model of the measurement trigger system. The rectangular boxes
represent states. The arrows show the transitions between states. These are
labeled with the input or event that causes the transition to occur.
Figure 5-3 Model of measurement triggers
DATA ACQUISITION
INITIATED STATE
IDLE STATE
ABOR
*RCL
*RST
TRIGGER RECEIVED
INIT[:IMM]
