Keysight x-series User Reference Guide

9 Strip Chart Measurement
View/Display
Key Path
View/Display, Display
Initial S/W Revision Prior to A.02.00

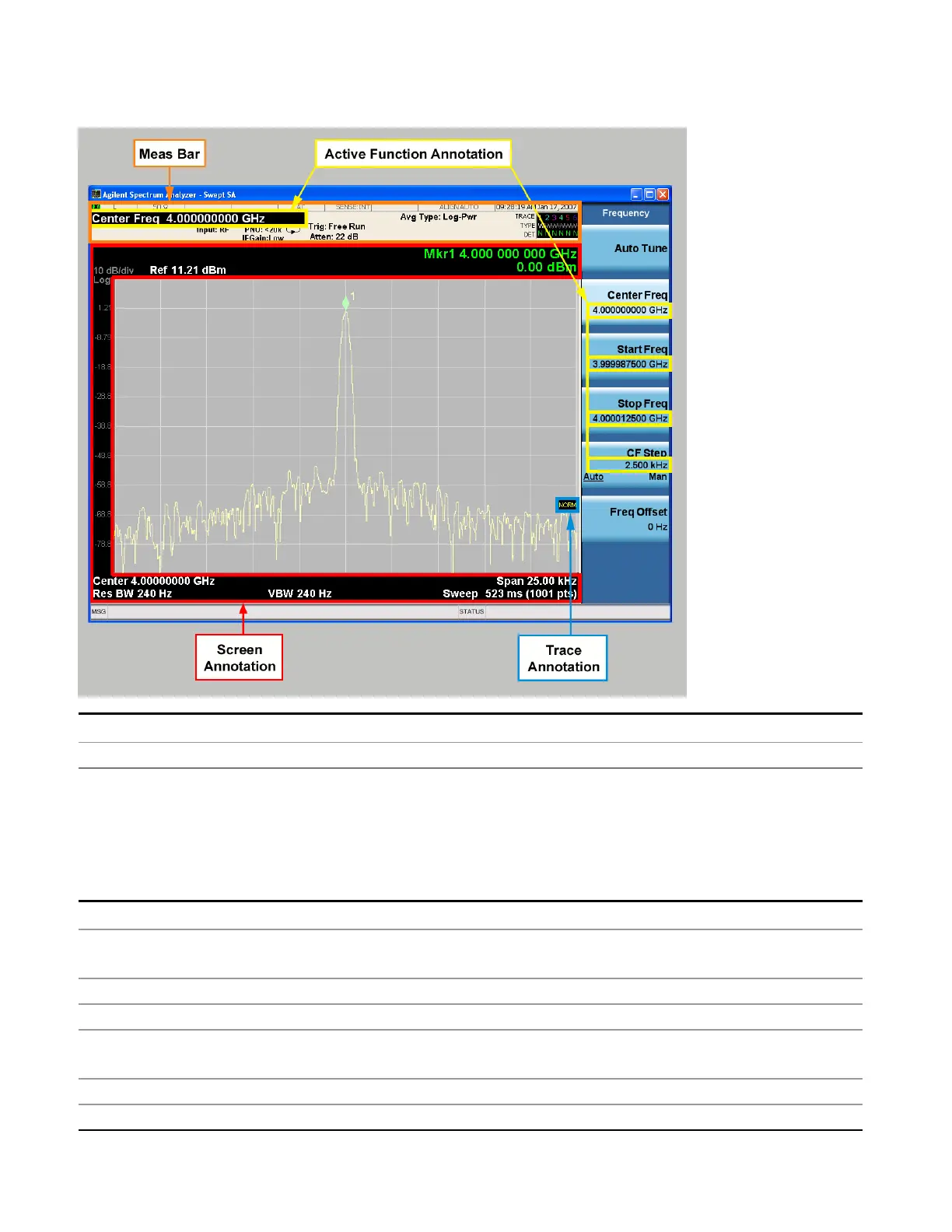

Meas Bar On/Off
This function turns the Measurement Bar on and off, including the settings panel. When off, the graticule
area expands to fill the area formerly occupied by the Measurement Bar.
Key Path
View/Display, Display, Annotation
Remote Command
:DISPlay:ANNotation:MBAR[:STATe] OFF|ON|0|1
:DISPlay:ANNotation:MBAR[:STATe]?
Example DISP:ANN:MBAR OFF
Dependencies Grayed out and forced to OFF when System Display Settings, Annotation is set to Off.
Preset On
This should remain Off through a Preset when System DisplaySettings, Annotation is set to Off.
State Saved Saved in instrument state.
Initial S/W Revision Prior to A.02.00
716 EMI Receiver Mode Reference
