Keysight x-series User Reference Guide

1 About the Analyzer
Window Control Keys
Remote Command
:DISPlay:WINDow:FORMat:TILE
Example :DISP:WIND:FORM:ZOOM sets zoomed
:DISP:WIND:FORM:TILE sets un-zoomed
Preset TILE
Initial S/W Revision Prior to A.02.00
Next Window
Selects the next window of the current view.When the Next Window key is pressed, the next window in the
order of precedencebecomes selected. If the selected window was zoomed, the next window will also be
zoomed.

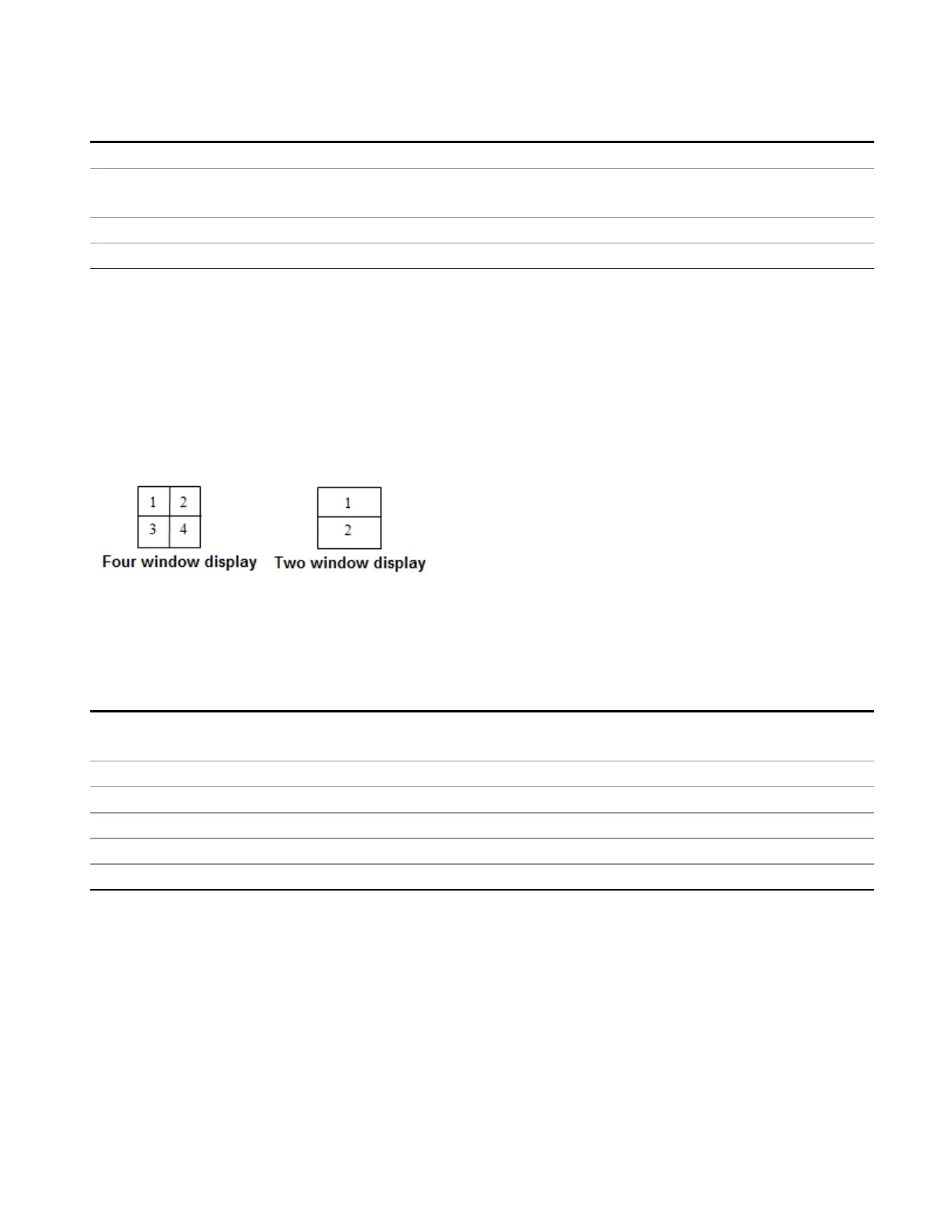

The window numbers are as follows. Note that these numbers also determine the order of precedence
(that is, Next Window goes from 1 to 2, then 2 to 3, etc.):
RTSA measurements:
Only two windows are available in the Spectrogram view under the Spectrum measurement and up to
three windows are available in the Power vs. Time measurement, depending on the view set up.
Remote Command
:DISPlay:WINDow[:SELect] <number>
:DISPlay:WINDow[:SELect]?
Example :DISP:WIND 1
Preset 1
Min 1
Max If <number> is greater than the number of windows, limit to <number of windows>
Initial S/W Revision Prior to A.02.00
One and only one window is always selected. The selected window has the focus; this means that all
window-specific key presses apply only to that window. You can tell which window is selected by the thick
green border around it. If a window is not selected, its boundary is gray.
If a window in a multi-window display is zoomed it is still outlined in green. If there is only one window, the
green outline is not used. This allows the user to distinguish between a zoomed window and a display with
only one window.
EMI Receiver Mode Reference 55

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
