Configuration
7-15
L
EDSVS9332P-D21 EN 3.0
7.3.1 Freely assignable digital inputs
Five freely assignable inputs are available (X5/E1 ... X5/E5). The signals are conditioned and linked
with other FBs via FB DIGIN.
(E 7-192)
Display links:
12 3 4

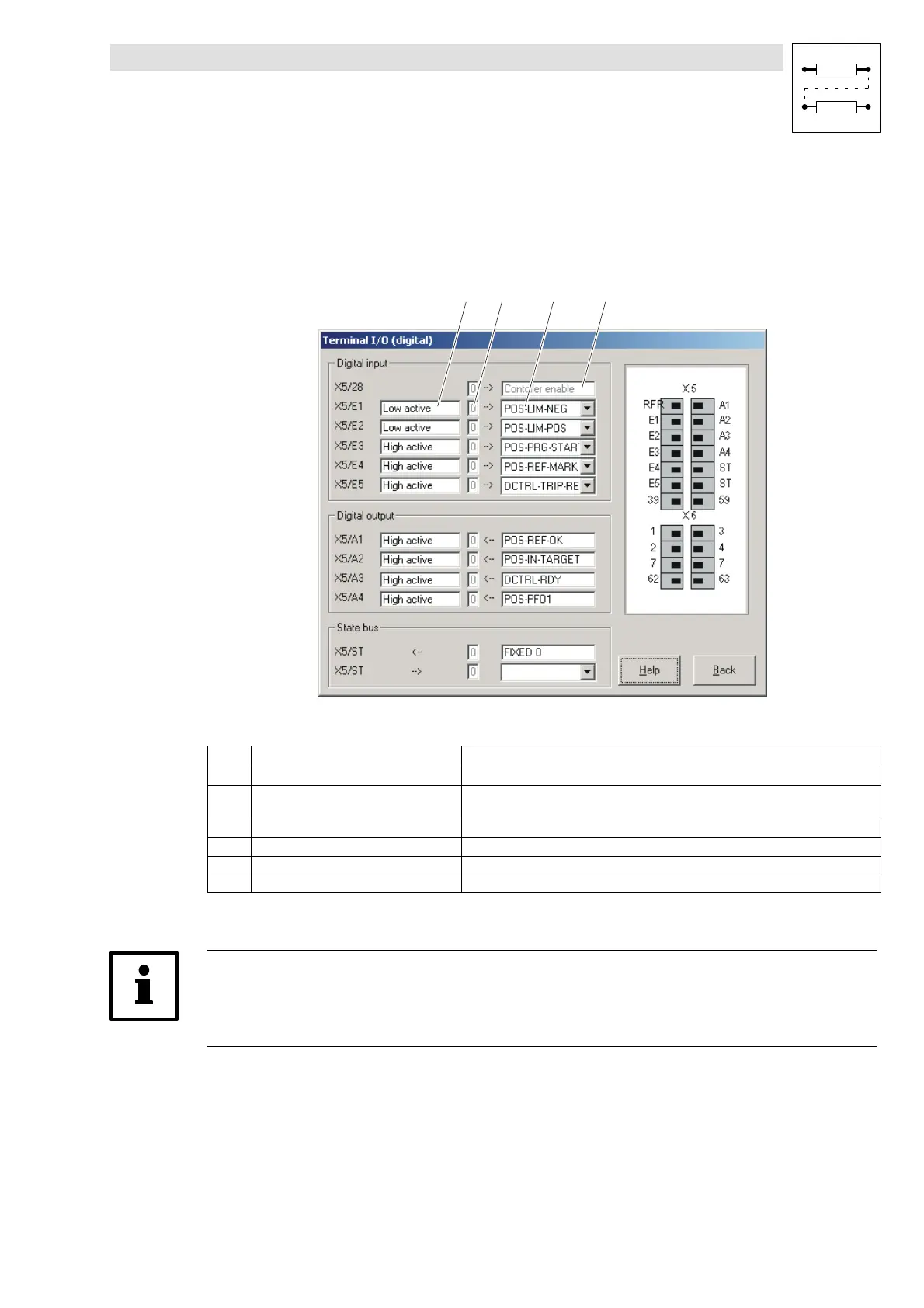

Fig. 7-7 Dialog box “Terminal I/O (digital)”
Field
Command Function
Initiate parameter menu
Click on “Dialog terminal I/O (digital)”
menu.
1 Click on field. Select signal level on which the input X5/E1 has to react.
2 Displays whether the input is triggered with a HIGH (1) or LOW (0) edge.
3 Click on field. A window displays the existing links for the input X5/E1.
4 Input X5/28 is assigned with controller enable. Cannot be changed.
The display of the links of the terminals X5/E2 ... X5/E5 is done in the same way.
Tip!
In the “Dialog signal configuration” menu you can carry out all links to the FB DIGIN.
(E 7-13)
Field 3 (in Fig. 7-7 for terminal X5/E1) shows these links.
