Lenze 9300 - AND Operation (AND)

Function library
7-103
L
EDSVS9332P-D21 EN 3.0

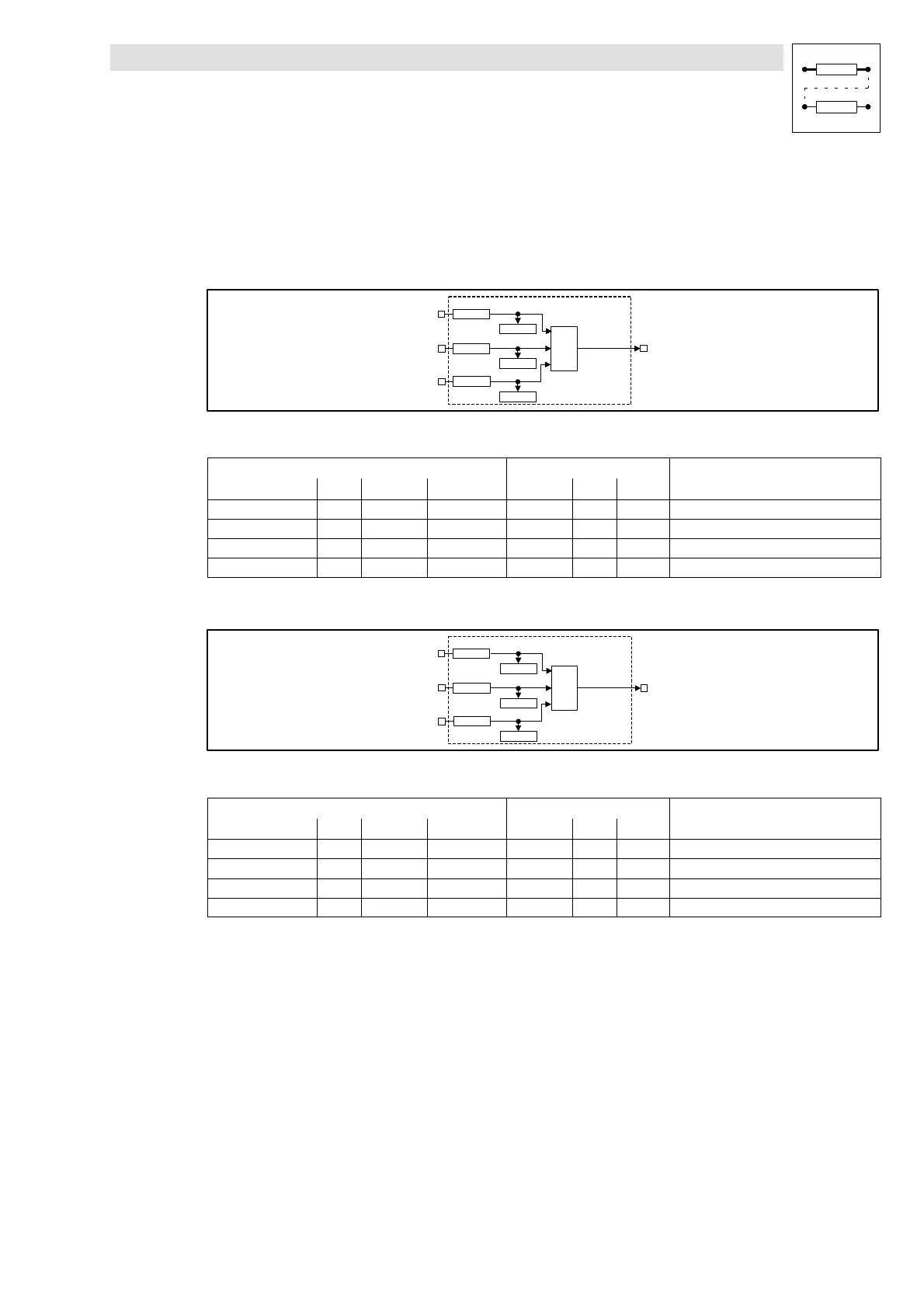

7.5.22 AND operation (AND)
Purpose
With this function digital signals can be linked as an AND function. These links can be used to control
functions or create status information.
AND1
&
AND1-IN1
AND1-IN2
AND1-IN3
AND1-OUT
C0821/1
C0821/2
C0821/3
C0820/1
C0820/2
C0820/3
Fig. 7-56 AND function (AND1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AND1-IN1 d C0821/1 bin C0820/1 2 1000 -
AND1-IN2 d C0821/2 bin C0820/2 2 1000 -
AND1-IN3 d C0821/3 bin C0820/3 2 1000 -
AND1-OUT d - - - - - -
AND2
&
AND2-IN1
AND2-IN2
AND2-IN3
AND2-OUT
C0823/1
C0823/2
C0823/3
C0822/1
C0822/2
C0822/3
Fig. 7-57 AND function (AND2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AND2-IN1 d C0823/1 bin C0822/1 2 1000 -
AND2-IN2 d C0823/2 bin C0822/2 2 1000 -
AND2-IN3 d C0823/3 bin C0822/3 2 1000 -
AND2-OUT d - - - - - -
