7.5.81.1 Evaluate positive edge
t
t
TRANS1-IN
TRANS1-OUT
C0711 C0711

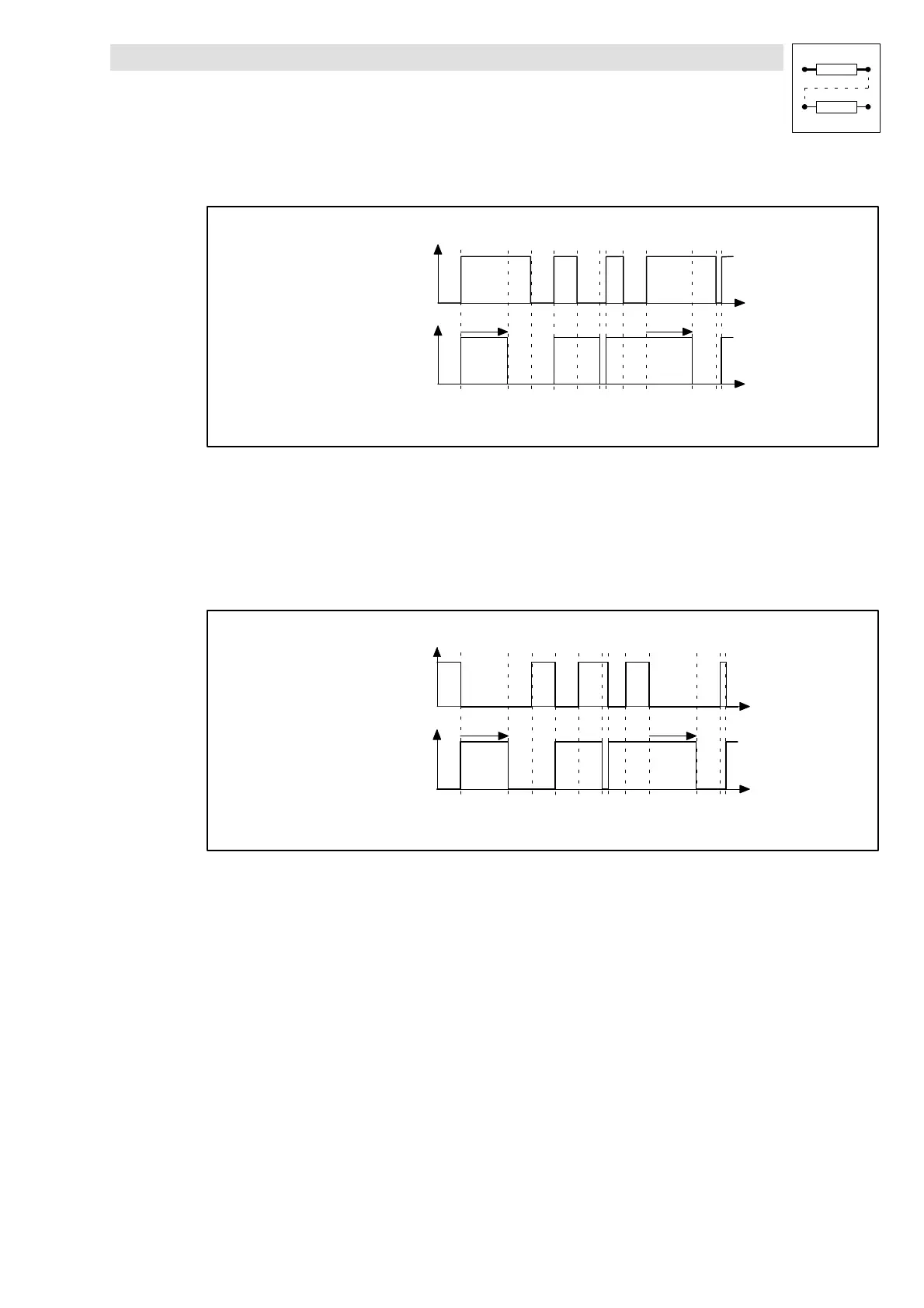

Fig. 7-227 Evaluation of positive edges (TRANS1)
• The output TRANSx-OUT is set to HIGH as soon as a LOW-HIGH edge is sent to the input.
• After the time set under C0711 or C0716 has elapsed, the output changes again to LOW
unless there is another LOW-HIGH edge at the input.
7.5.81.2 Evalute negative edge
t
t
TRANS1-IN
TRANS1-OUT
C0711
C0711
Fig. 7-228 Evaluation of negative edges (TRANS1)
• The output TRANSx-OUT is set to HIGH as soon as a HIGH-LOW edge is sent to the input.
• After the time set under C0711 or C0716 has elapsed, the output changes again to LOW,
unless there is another HIGH-LOW edge at the input.
