7.5.75 Phase value selection (SELPH)
Two FBs (SELPH1, SELPH2) are available.
Purpose
Select one phase value from nine phase values and switch to the output.
SELPH1
SELPH1-IN1
SELPH1
C1662/1
C1664/1
SELPH1-OUT
SELPH1-SELECT
C1661
C1663
SELPH1-IN2
C1662/2
C1664/2
SELPH1-IN3
C1662/3
C1664/3
SELPH1-IN4
C1662/4
C1664/4
SELPH1-IN5
C1662/5
C1664/5
SELPH1-IN6
C1662/6
C1664/6
SELPH1-IN7
C1662/7
C1664/7
SELPH1-IN8
C1662/8
C1664/8
FIXED0INC
1
2
3
4
5
6
7
8
0
8
C1660
0

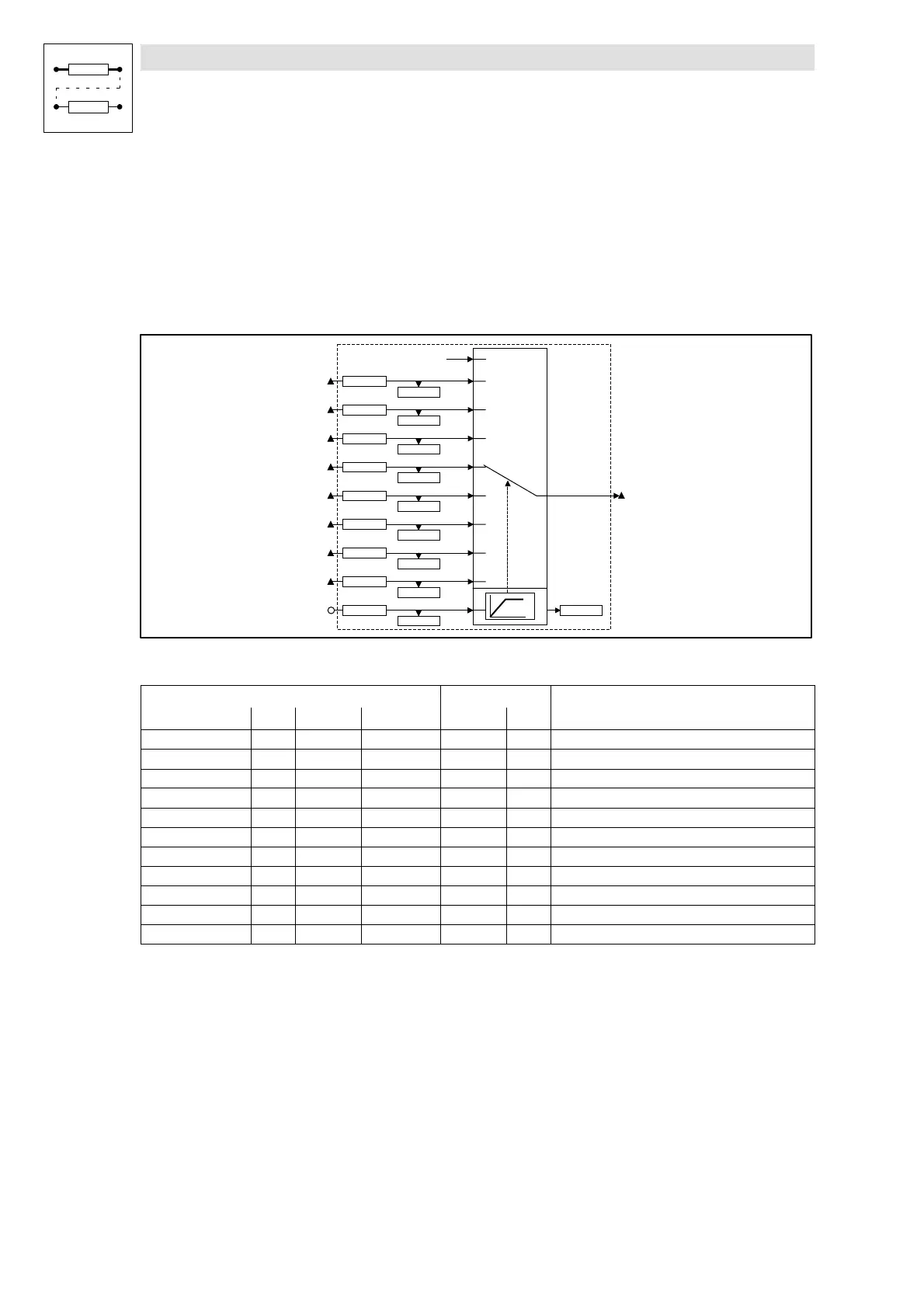

Fig. 7-209 Function block SELPH1
Signal
Source Note
Name Type DIS DIS format CFG List
SELPH1-SELECT a C1663 dec C1661 1 -
SELPH1-IN1 ph C1664/1 dec [inc] C1662/1 3 -
SELPH1-IN2 ph C1664/2 dec [inc] C1662/2 3 -
SELPH1-IN3 ph C1664/3 dec [inc] C1662/3 3 -
SELPH1-IN4 ph C1664/4 dec [inc] C1662/4 3 -
SELPH1-IN5 ph C1664/5 dec [inc] C1662/5 3 -
SELPH1-IN6 ph C1664/6 dec [inc] C1662/6 3 -
SELPH1-IN7 ph C1664/7 dec [inc] C1662/7 3 -
SELPH1-IN8 ph C1664/8 dec [inc] C1662/8 3 -
SELPH1-OUT ph - - - - -
- - C1660 dec - - displays the current selection
