7.5.65.3 Setpoint inversion
The output signal of the JOG function is led via an inverter.
The sign of the setpoint is inverted, if the input NSET-N-INV is triggered with HIGH signal.
Ramp function generator for the main setpoint
The setpoint is then led via a ramp function generator with linear characteristic. Setpoint
step-changes at the input are thus led into a ramp.
100%
0
t
ir
t
if
T
ir
T
if
t
RFG-OUT
[%]
w1
w2
T
ir
= t
ir
100%
w2 − w1
T
if
= t
if
100%
w2 − w1

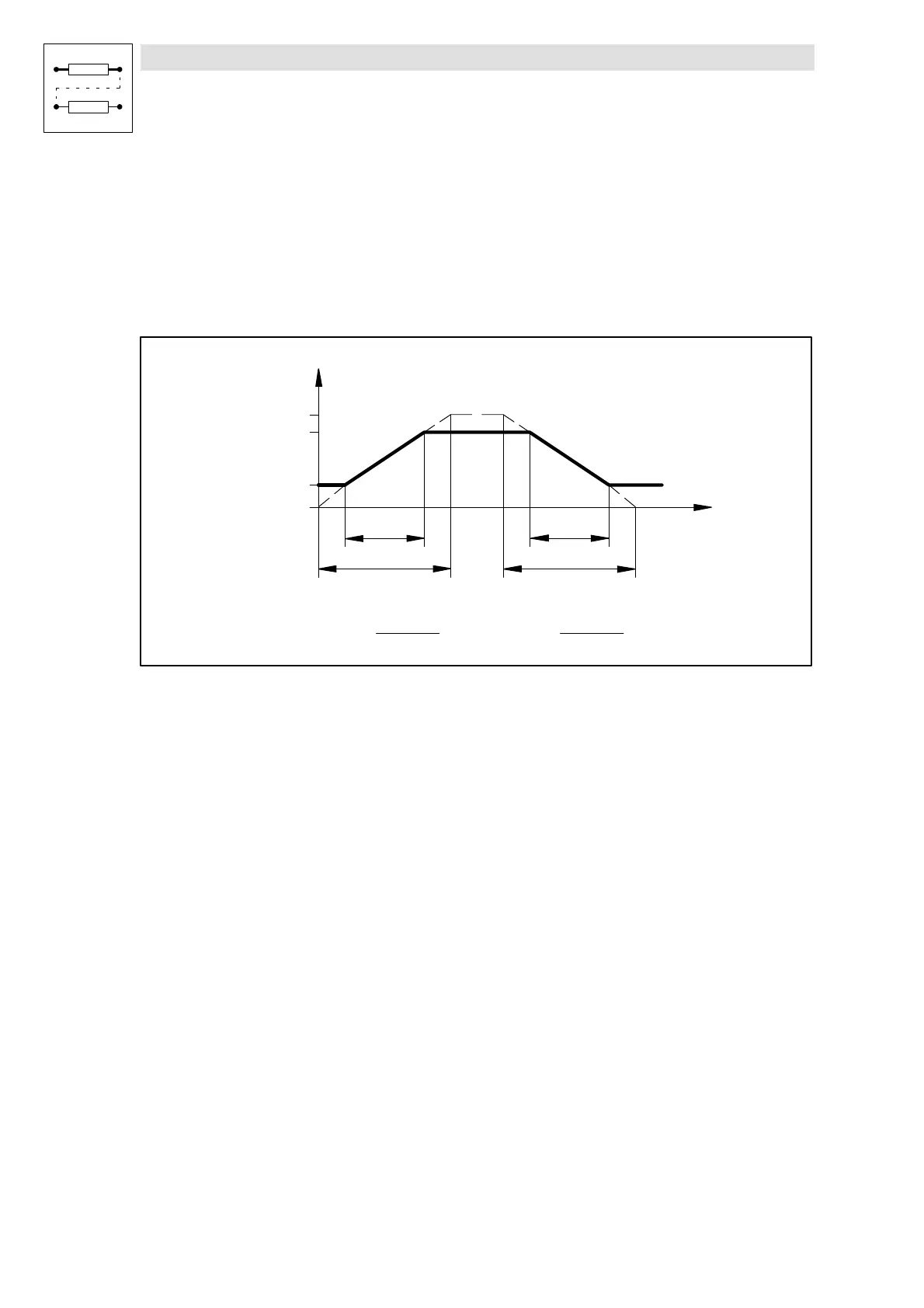

Fig. 7-186 Acceleration and deceleration times of the ramp function generator
• The ramps can be set separately for acceleration and deceleration.
– Different acceleration and deceleration times can be activated via the inputs NSET-TI*x 16
(for table and function see JOG setpoints; the decoding must be done according to the
signal graphic).
– The T
i
times can only be activated in pairs.
• When the controller is inhibited (CINH) the ramp function generator accepts the value that was
applied to the input NSET-CINH-VAL and transmits it to the next function. This function has
priority over all other functions.
• NSET-RFG-STOP = HIGH
– The ramp function generator is stopped. Changes at the input of the ramp function
generator have no effect on the output.
• NSET-RFG-0 = HIGH
– The ramp function generator decelerates to zero along the deceleration ramp.
• It is also possible to load the ramp function generator online with a defined value. For this, the
input NSET-LOAD must be set to HIGH. As long as this input is set, the value at input
NSET-SET is accepted by the ramp function generator and tapped at the output.
