7.5.77 Output of digital status signals (STAT)
Purpose
The FB evaluates digital signals of function blocks and the status of the controller and passes them
on to C0150 and FB AIF-OUT and CAN-OUT1.
C0156/1
STAT.B0
STAT.B2
STAT.B3
STAT.B4
STAT.B5
STAT.B14
STAT.B15
DCTRL-IMP
STAT
DCTRL-WARN
DCTRL-MESS
DCTRL-NACT=0
C0156/2
C0156/3
C0156/4
C0156/5
DCTRL-STAT*1
DCTRL-STAT*2
DCTRL-STAT*4
DCTRL-STAT*8
0
1
2
3
4
5
6
8
9
DCTRL-CINH
7
10
11
12
13
14
15
C0156/6
C0156/7
AIF-
Statusword
C0150
CAN1-
Statusword

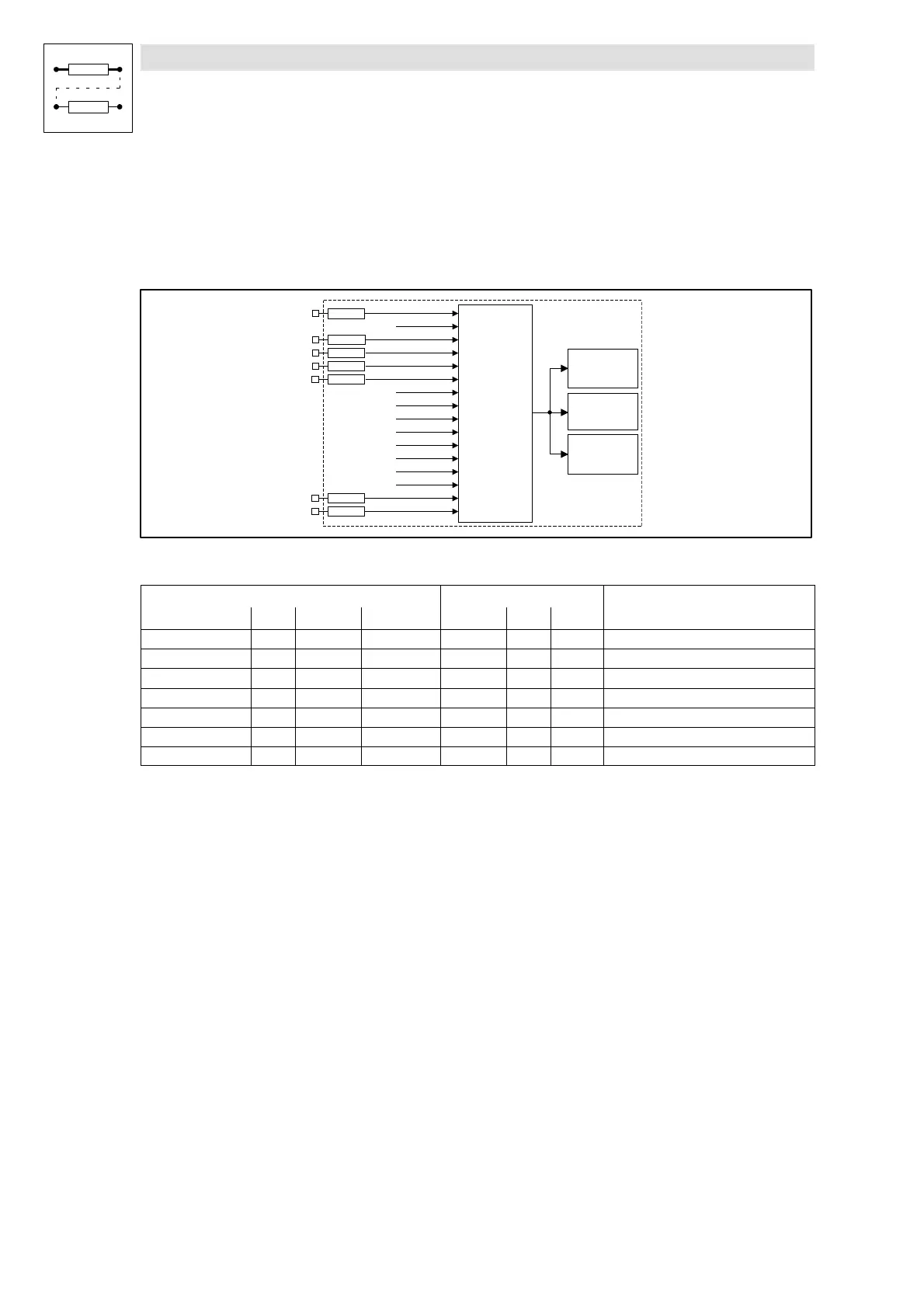

Fig. 7-219 Output of digital status signals (STAT)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
STAT.B0 d - bi n C0156/1 2 2000
STAT.B2 d - bi n C0156/2 2 5002
STAT.B3 d - bi n C0156/3 2 5003
STAT.B4 d - bi n C0156/4 2 5050
STAT.B5 d - bi n C0156/5 2 10650
STAT.B14 d - bin C0156/6 2 505
STAT.B15 d - bin C0156/7 2 500
Function
The status word consists of some linked (DCTRL-xxxx-) and some freely linkable signal inputs
(STAT.Bx).
•
Digital signal sources can be freely assigned to the inputs STAT.Bx.
•
The corresponding bit in the data word is marked with STAT.Bx (e.g. STAT.B0 for the LSB)
•
The Statuswort is transferred to code C0150 and to the function blocks AIF-OUT, CAN-OUT1,
CAN-OUT2, and CAN-OUT1.
•
The inputs with the name DCTRL-xxxx are directly accepted from the function block DCTRL.
(E 7-169)
