Configuration
7-310
L
EDSVS9332P-D21 EN 3.0
7.6.3.16 Overvoltage OU
Purpose
DC bus monitoring. Controller protection.
MONIT
U
G
--VOLTAGE
MONIT--OU
C0053
C0173

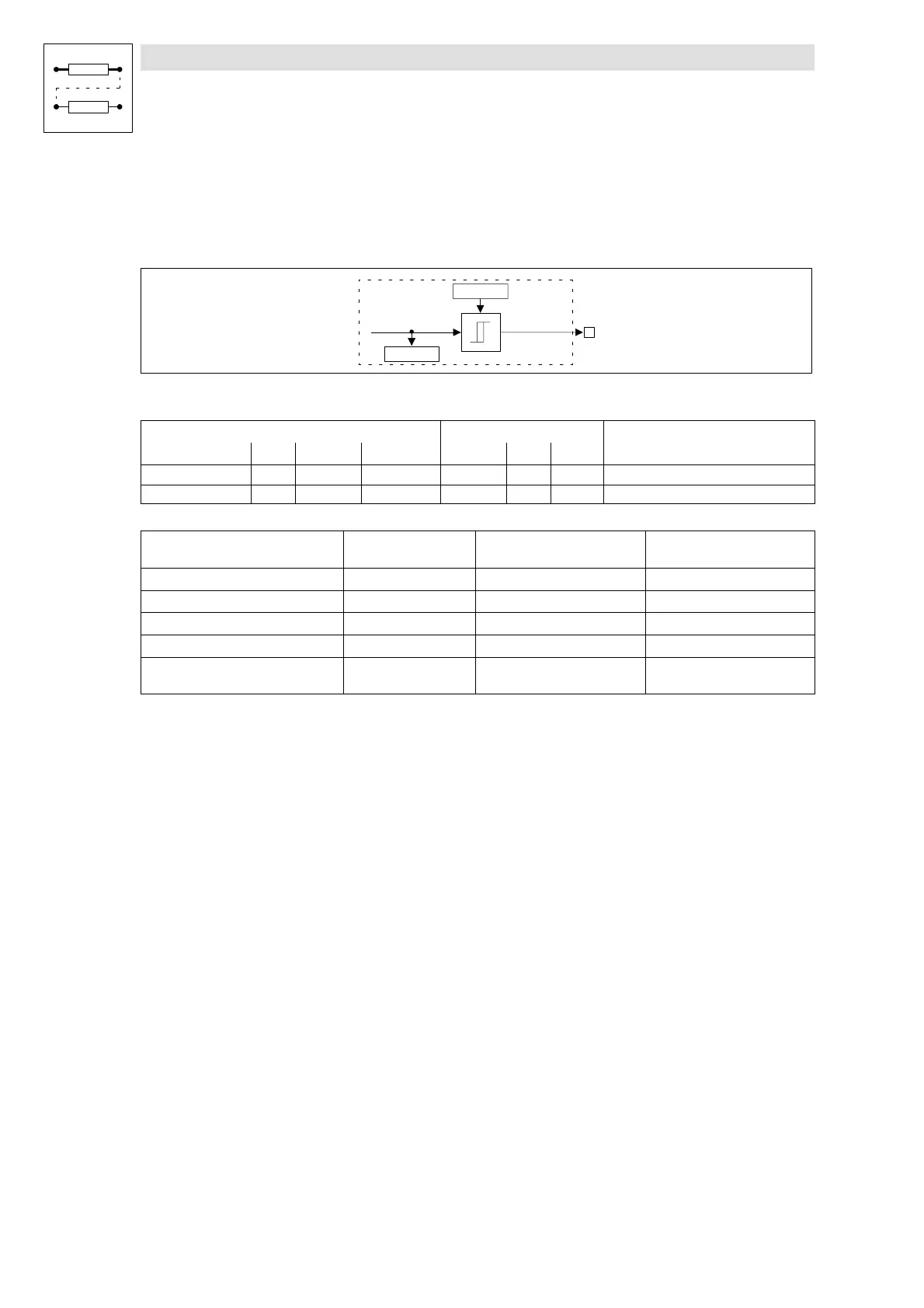

Fig. 7-249 Overvoltage OU
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
U
G
-VOLTAGE - C0053 dec - - - -
MONIT-OU d - - - - - -
Mains voltage range Selection number
(C0173)
Switch-off threshold OU Switch-on threshold OU
< 400 V 0 770 V 755 V
400 V 1 770 V 755 V
400 … 460 V 2 770 V 755 V
480 V without brake chopper 3 770 V 755 V
Operation with brake chopper (up to 480
V)
4 800 V 785 V
Function
The monitoring indicates a message if the DC bus voltage (terminals + U
G
and -U
G
) exceeds the
threshold (switch-off threshold OU) set under C0173.
The message is reset if the voltage falls below the switch-off threshold OU again.
The table above shows the setting of the switching thresholds according to the selection number.
The switch-off threshold OU determines the voltage level of the DC bus voltage, where the pulse
inhibit is activated.
The selection number is also effective for the low voltage monitoring (LU).
Features
• LECOM No.: 1020
• Reaction: MESSAGE (cannot be modified)
