Lenze 9300 - Addition Block (ADD)

Function library
7-95
L
EDSVS9332P-D21 EN 3.0
7.5.18 Addition block (ADD)
Purpose
Adds or subtract ”analog” signal depending on the input used.
9300POSADD1
A D D 1
A D D 1 - O U T
C 0 6 1 1 / 1
± 1 9 9 . 9 9 %
C 0 6 1 1 / 2
A D D 1 - I N 1
A D D 1 - I N 2
C 0 6 1 0 / 1
C 0 6 1 0 / 2
-
+
+
C 0 6 1 1 / 3
A D D 1 - I N 3
C 0 6 1 0 / 3

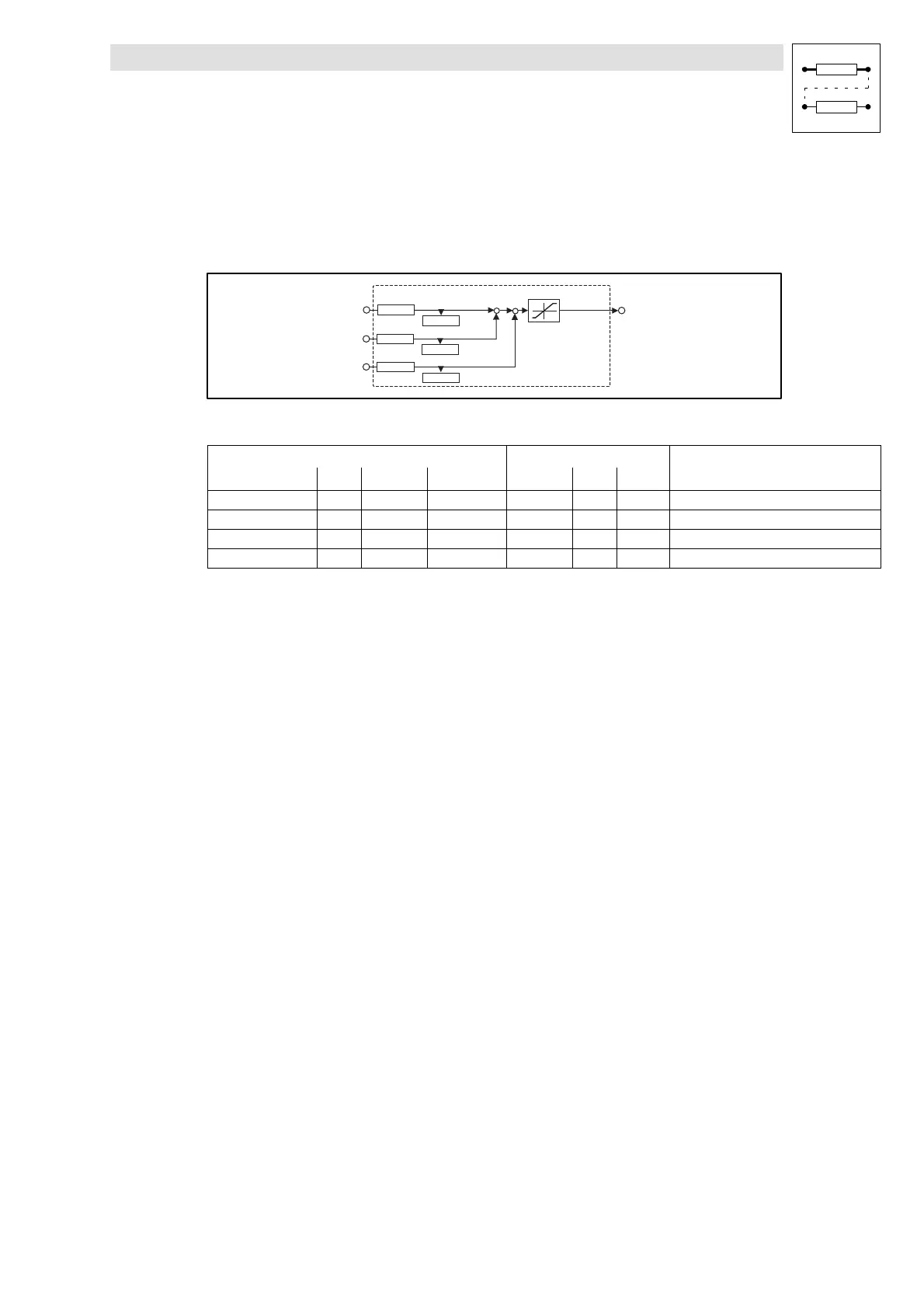

Fig. 7-50 Addition block (ADD1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
ADD1-IN1 a C0611/1 dec [%] C0610/1 1 1000 Addition input
ADD1-IN2 a C0611/2 dec [%] C0610/2 1 1000 Addition input
ADD1-IN3 a C0611/3 dec [%] C0610/3 1 1000 Subtraction input
ADD1-OUT a - - - - - Limited to ±199.99%
Function
• Input ADD1-IN1 is added to input ADD1-IN2.
• The input ADD-IN3 is subtracted from the calculated result.
• Then, the result of the subtraction is limited to ±199.99 %.
