Lenze 9300 - Automation Interface (AIF-OUT)

Function library
7-99
L
EDSVS9332P-D21 EN 3.0
7.5.20 Automation interface (AIF-OUT)
Purpose
Interface for output signals of the plug-on fieldbus modules (e. g. INTERBUS, PROFIBUS) for
setpoints and actual values as binary, analog or phase information. Please observe the
corresponding Operating Instructions for the plug-on fieldbus module.
AIF-OUT
A I F - O U T
S t a t u s w o r d
B i t 0
B i t 1 5
B i t 0
B i t 3 1
B y t e 7 , 8
B y t e 5 , 6
A u t o m a t i o n
i n t e r f a c e
X 1
B y t e 3 , 4
1
0
2
C 0 8 5 3
1
0
2
C 0 8 5 2
A I F - O U T . D 1
1 6 B i t
L o w W o r d
1 6 B i t
H i g h W o r d
C 0 8 5 1
1 6 B i t
L o w W o r d
1 6 B i t
H i g h W o r d
C 0 8 5 9
F D O - 0
A I F - O U T . W 1
C 0 8 5 0 / 1
C 0 8 5 8 / 1
F D O - 1 5
. . .
A I F - O U T . W 2
C 0 8 5 0 / 2
A I F - O U T . W 3
C 0 8 5 0 / 3
C 0 8 5 8 / 2
C 0 8 5 8 / 3
S T A T . B 0
D C T R L - I M P
. . .
S T A T . B 1 5
S T A T . B 1 4
1 6 B i t
F D O
C 0 1 1 6 / 1
C 0 1 1 6 / 1 6
F D O - 1 6
F D O - 3 1
. . .
C 0 1 1 6 / 1 7
C 0 1 1 6 / 3 2
B i t 0
B i t 1 5
C 0 1 5 6 / 1
S T A T
C 0 1 5 6 / 6
C 0 1 5 6 / 7
0
3
C 0 8 5 4
3
A I F - O U T . D 2
C 1 1 9 5
C 1 1 9 6
1 6 B i t
L o w W o r d
1 6 B i t
H i g h W o r d

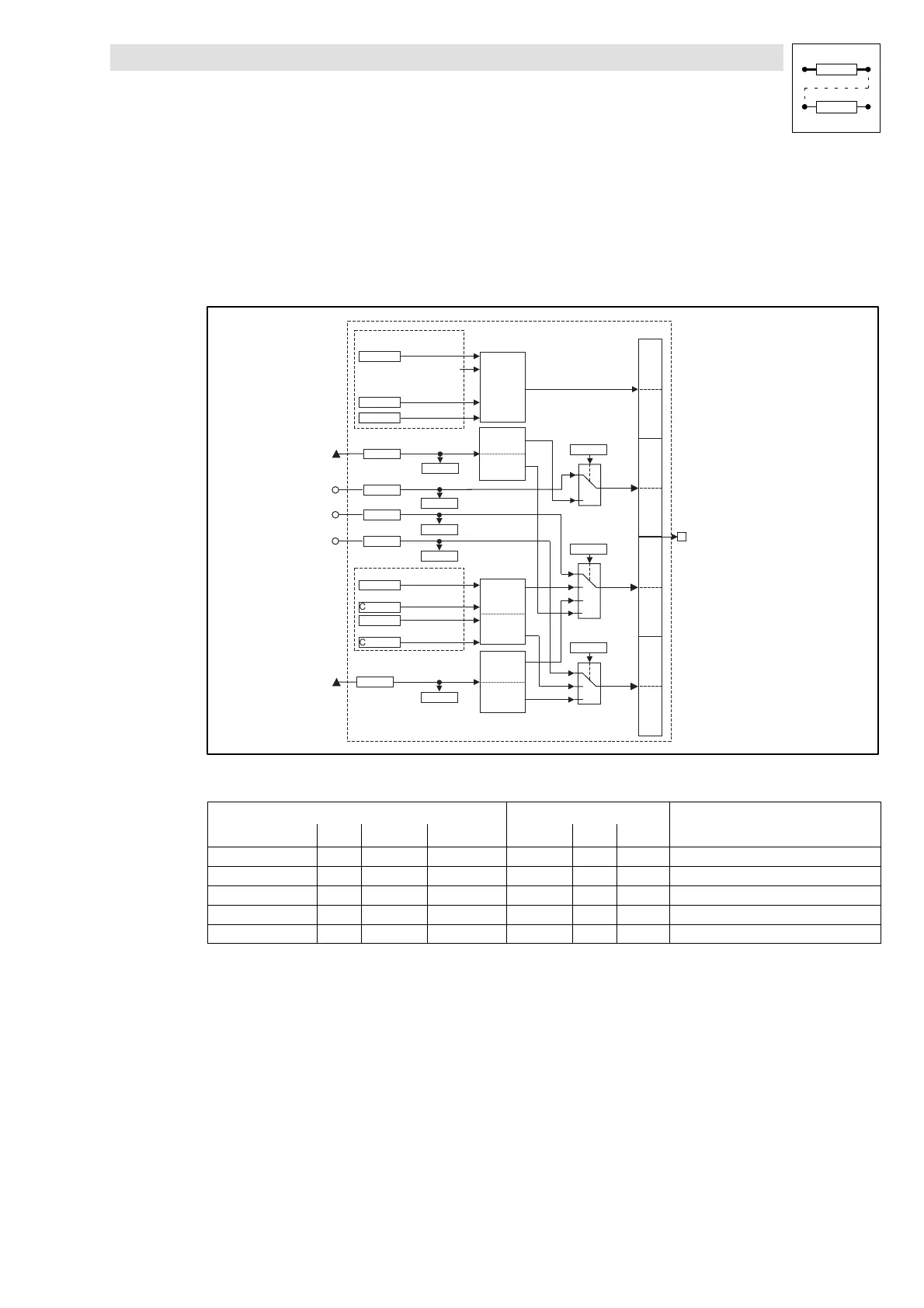

Fig. 7-52 Automation interface (AIF-OUT)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
AIF-OUT.W1 a C0858/1 dec [%] C0850/1 1 1000 +100 % = +16384
AIF-OUT.W2 a C0858/2 dec [%] C0850/2 1 1000 +100 % = +16384
AIF-OUT.W3 a C0858/3 dec [%] C0850/3 1 1000 +100 % = +16384
AIF-OUT.D1 ph C0859 abs [inc] C0851 4 1000 1 rev. = 65536
AIF-OUT.D2 ph C1196 abs [inc] C1195 4 1000 1 rev. = 65536
