Configuration
7-16
L
EDSVS9332P-D21 EN 3.0
7.3.2 Freely assignable digital outputs
Four freely assignable outputs are available (X5/A1 ... X5/A5). The signals are conditioned and linked
with other FBs via FB DIGOUT.
(E 7-193)
Change assignment:
12 3

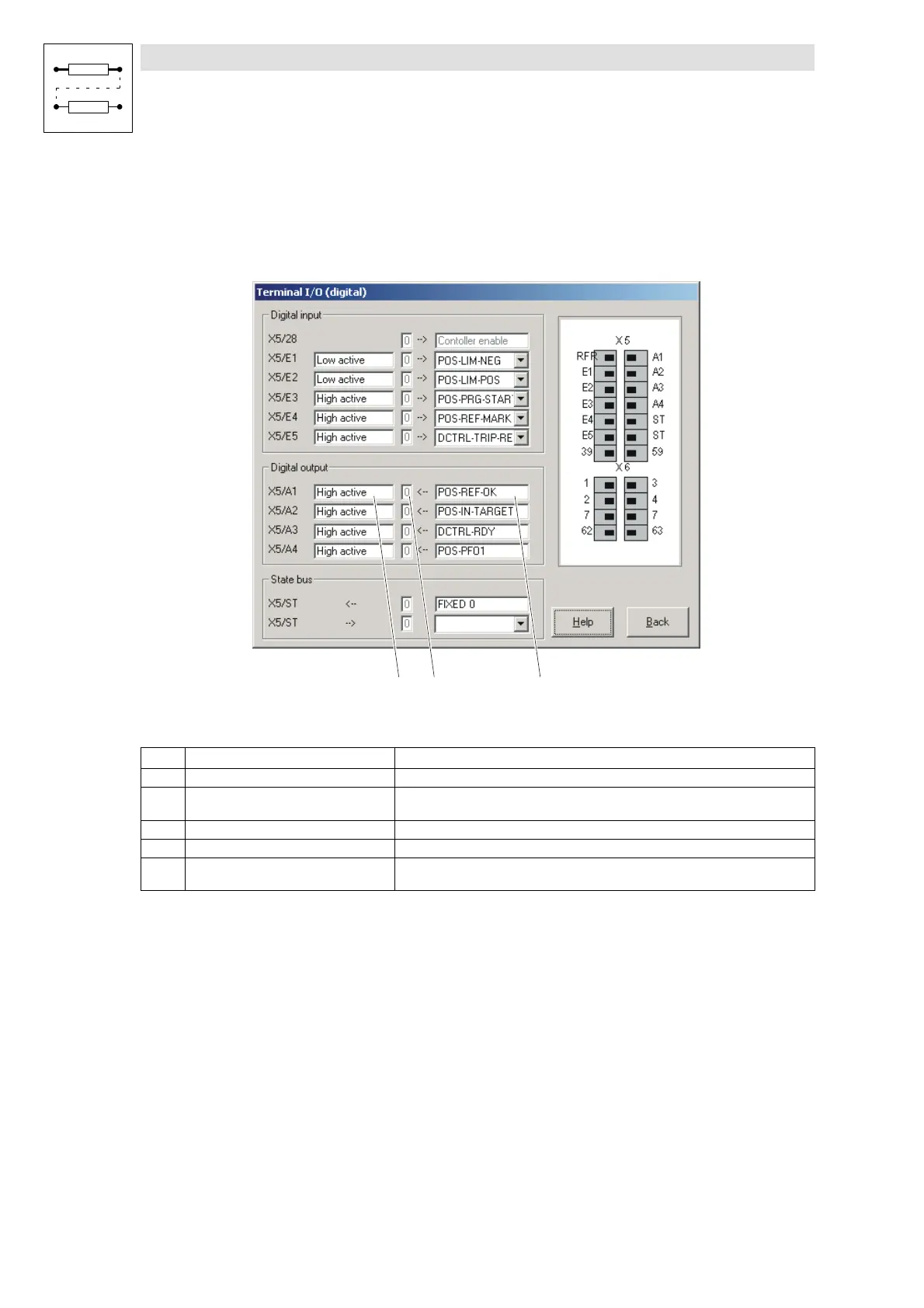

Fig. 7-8 Dialog box “Terminal I/O (digital)”
Field
Command Function
Initiate parameter menu
Click on “Dialog terminal I/O (digital)”
menu.
1 Click on field. Select signal level on which the output X5/A1 has to switch when it is triggered.
2 Displays whether the output is triggered with a HIGH (1) or LOW (0) edge.
3 Click on field. A window displays all available li nks of the output X5/A 1.
•
Select link.
The assignment of the terminals X5/A2 ... X5/A4 is changed in the same way.
