7.5.45.6 Start via touch probe initiator (terminal X5/E5)
Stop!
In the default setting the terminal X5/E5 is assigned to another function.
Function
•
Set C0757 = 1.
•
The function is activated by simultaneously setting the inputs:
– DFRFG-QSP and DFRFG-RESET = HIGH.
•
Starting procedure:
– Signals at DFRFG-QSP and DFRFG-RESET = LOW.
– Otherwise touch probe signals are ignored.
•
A LOW-HIGH edge at terminal X5/E5 starts the process:
t
DFRFG-RESET
DFRFG-QSP
Touch-Probe X5/E5
DFRFG-OUT
DFRFG-IN

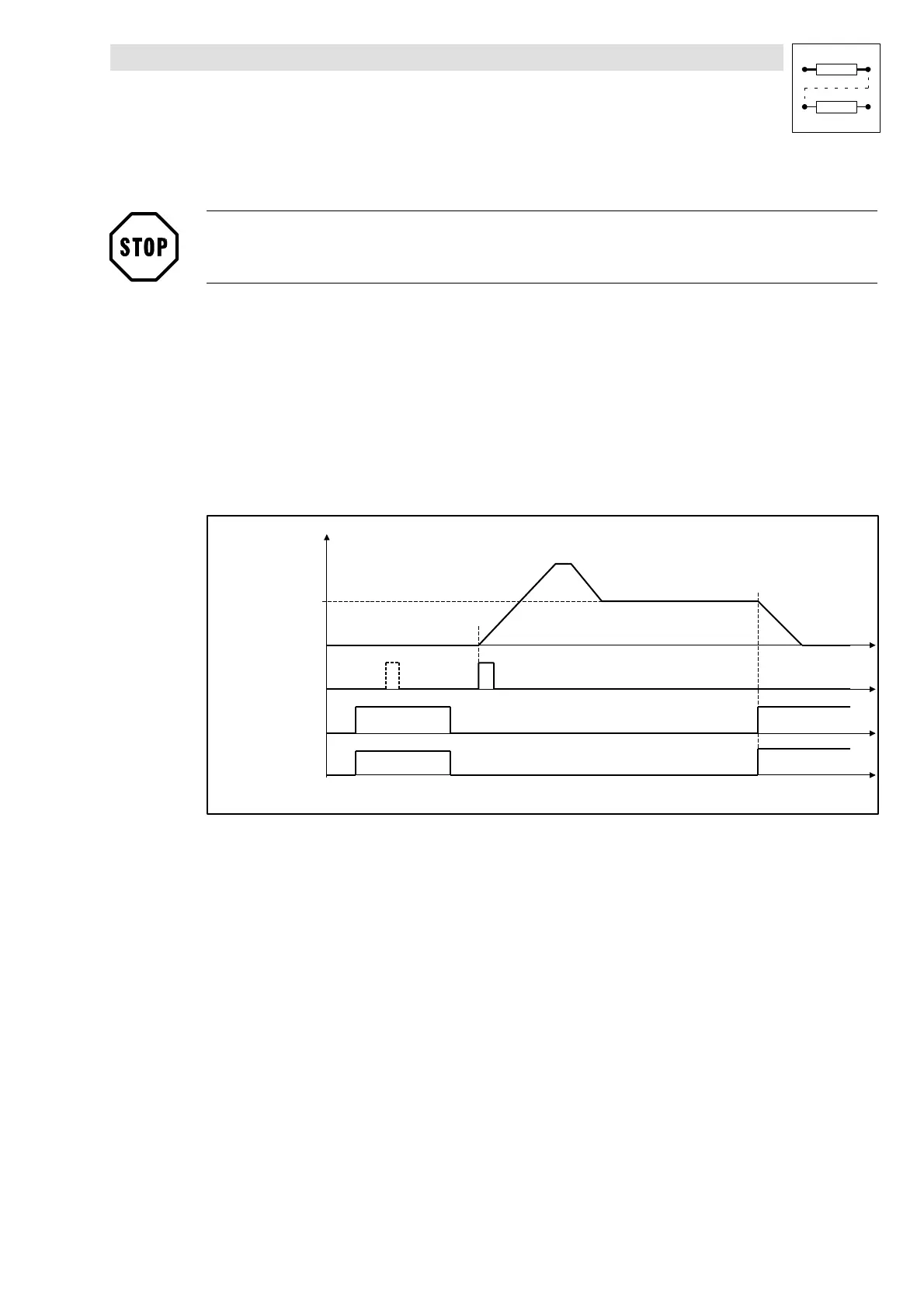

Fig. 7-140 Start via touch probe initiator (terminal X5/E5)
