7.3.4 Freely assignable analog inputs
Two freely assignable analog inputs are available (X6/1,2 and X6/3,4). The signals are conditioned
and linked with other FBs via FB AIN.
(E 7-101)
Display links:
1324

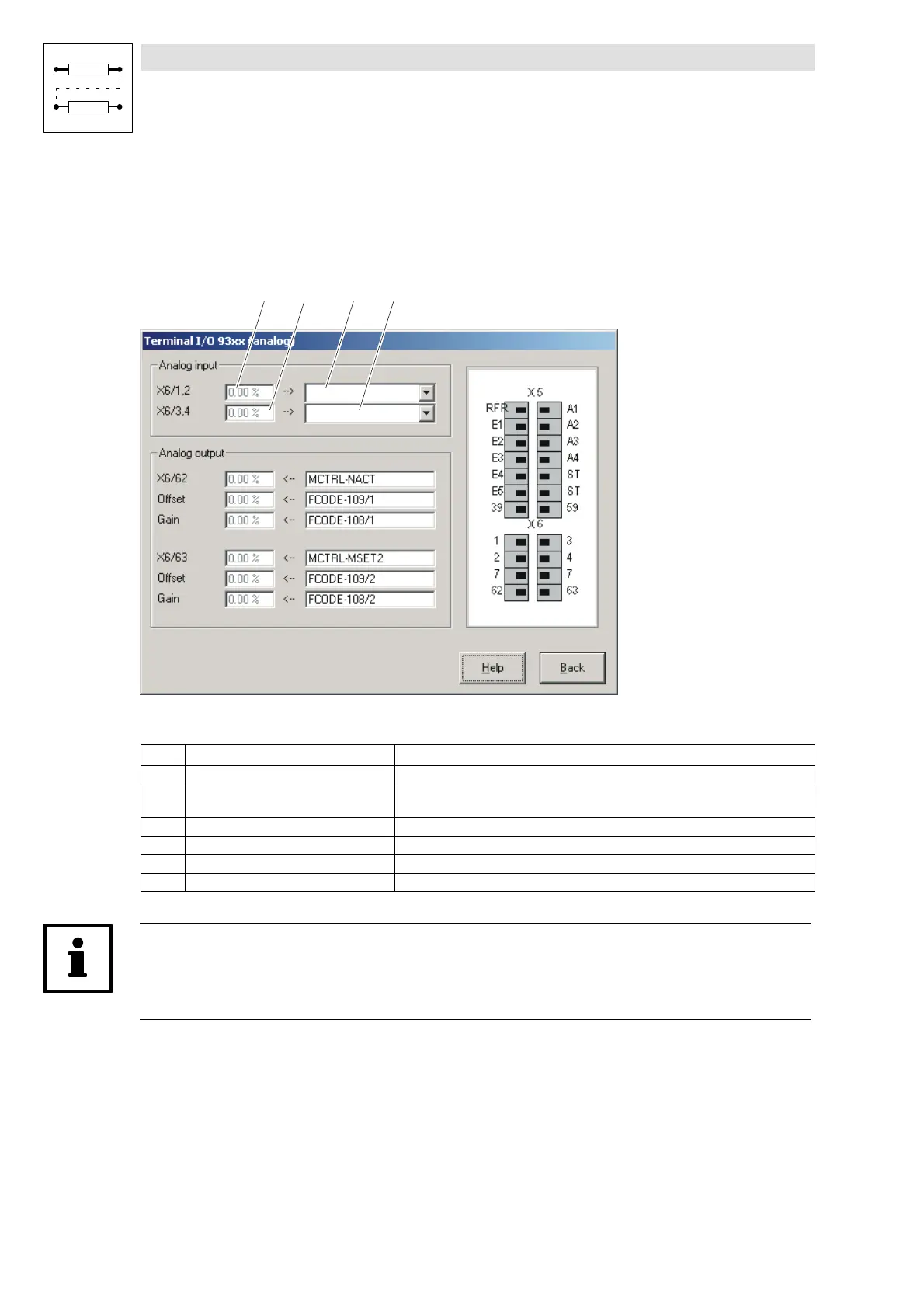

Fig. 7-10 Dialog box “Terminal I/O 93xx (analog)”
Field
Command Function
Initiate parameter menu
Click on “Dialog terminal I/O 93xx (analog)”
menu.
1 Displays the input value at terminal X6/1,2.
2 Displays the input value at terminal X6/3,4.
3 Click on field. A window displays the existing links for the input X6/1,2.
4 Click on field. A window displays the existing links for the input X6/3,4.
Tip!
In the “Dialog signal configuration” menu you can carry out all links to the FB AIN. (E 7-13)
Field 1 or field 2 diplays these links.
