Configuration
7-307
L
EDSVS9332P-D21 EN 3.0
7.6.3.13 Heatsink monitoring OH4 (adjustable)
Purpose
Controller protection
This monitoring is designed as a warning before the disconnection of the controller via the OH-TRIP.
Thus, the process can be influenced to avoid a switch-off of the controller at an inconvenient time.
For example, fans which would cause an inacceptable noise in continuous operation, can also be
triggered.
MONIT
TEMP-COOLER
MONIT-OH4
C0061
C0122

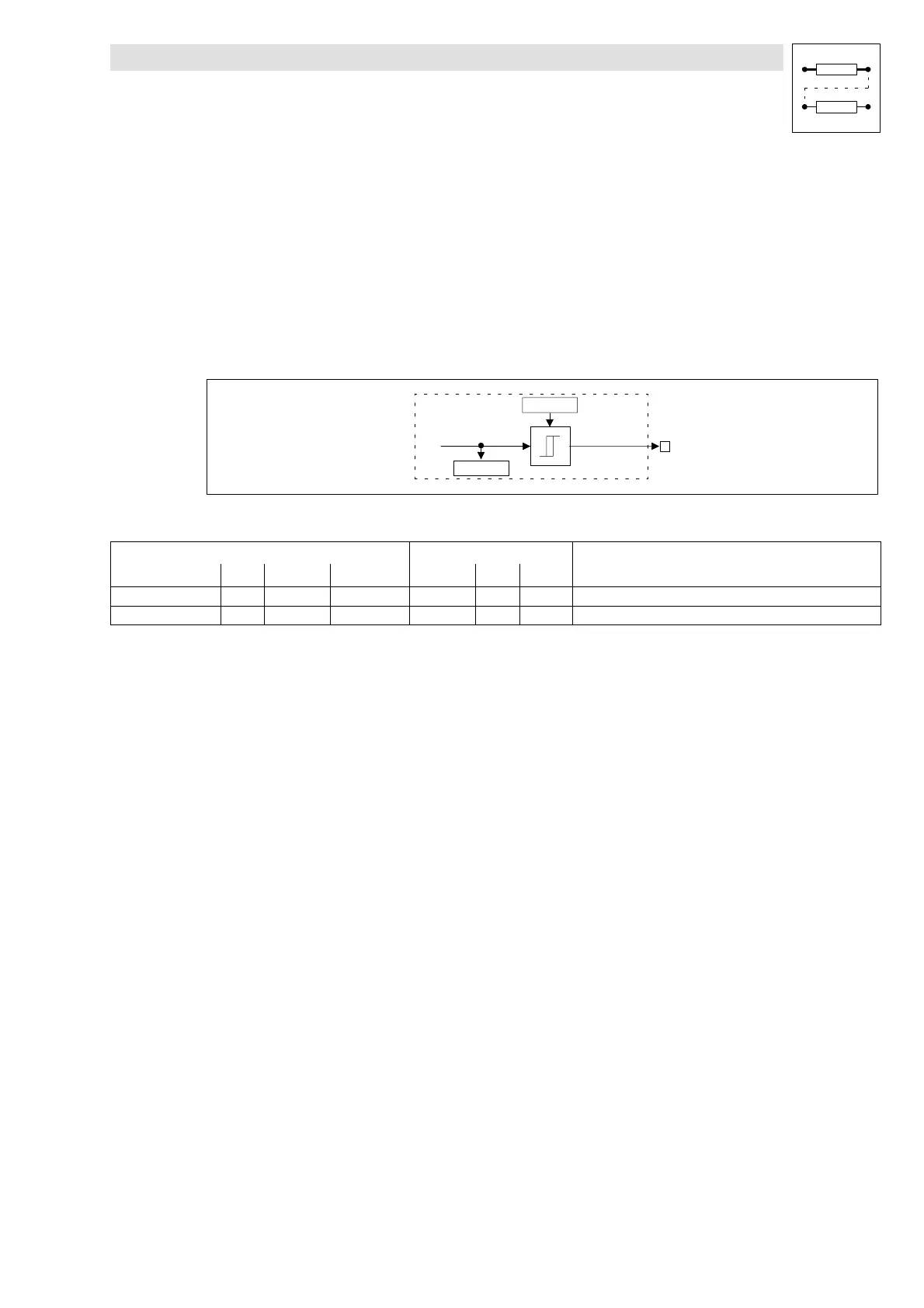

Fig. 7-246 Heatsink monitoring OH4 with adjustable threshold
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
TEMP-COOLER - C0061 dec - - - cannot be reassi gned
MONIT-OH4 d - - - - - -
Function
The signal OH4 is derived from a comparator with hysteresis.The threshold can be set under code
C0122. The hysteresis is fixed and amounts to 5 K. The signal is thus reset below a threshold of 5 K.
Features:
•
LECOM no.: 2054
•
Reaction: WARNING or OFF
