Function library
7-52
L
EDSVS9332P-D21 EN 3.0
7.5.8.4 Homing mode 0 and 1
Purpose
•
Simple homing in all positioning modes (C1210 = 0, 1, 2).
•
The homing switch (POS-REF-MARK) must be in direction of the movement.
Move to reference point via homing switch
Mode 0: Traversing direction to positive end of travel range limit switch
Set C1213 = 0.
9300pos052
H o m i n g s w i t c h ( P O S - R E F - M A R K )
Z e r o p u l s e / z e r o p o s i t i o n
H o m e p o s i t i o n
D i r e c t i o n

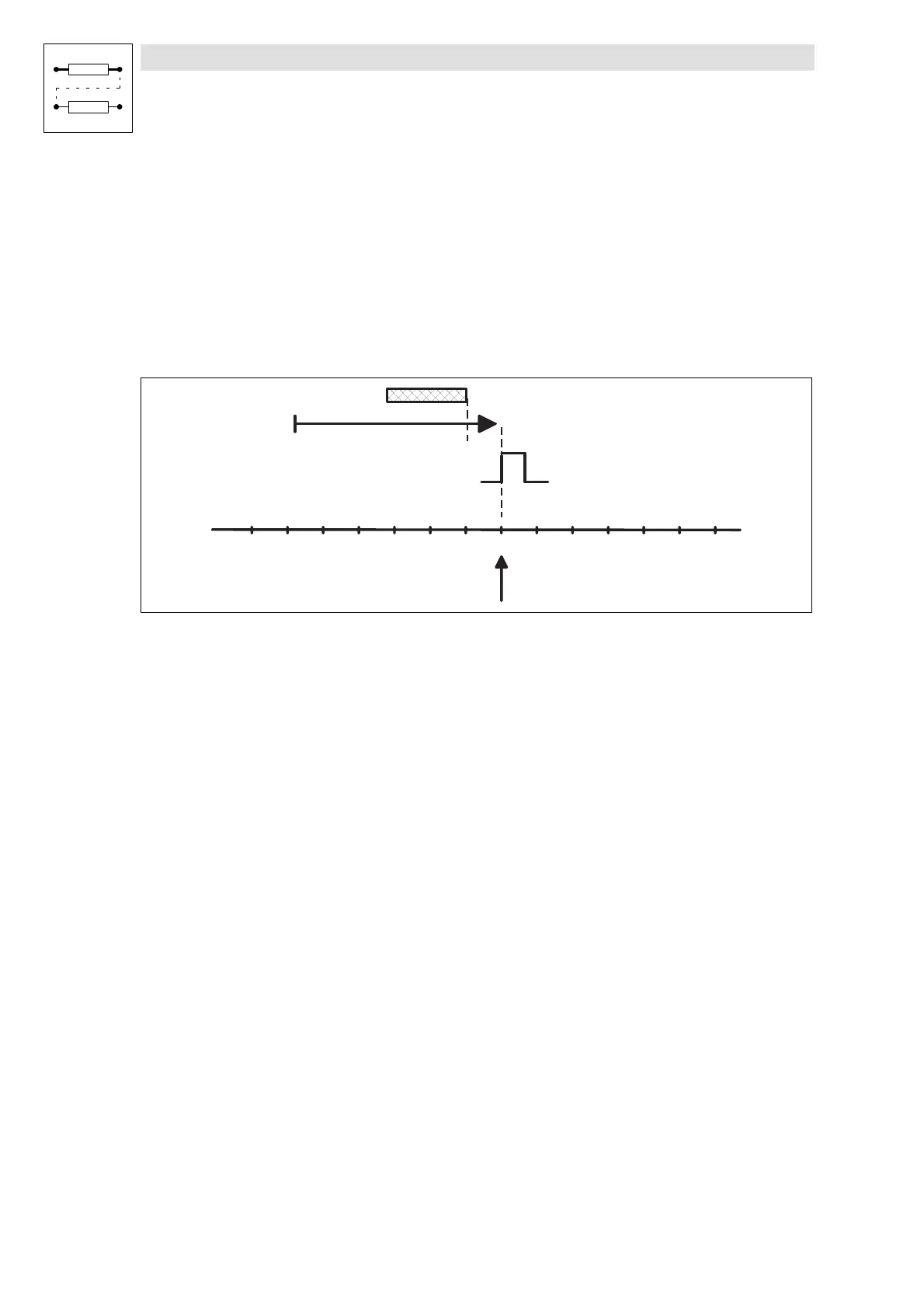

Fig. 7-22 Move to reference point via homing switch
Function procedure
•
Move to the reference point with homing speed (C1242) towards positive end of travel range
limit switch overriding the homing switch.
•
The reference point is at the first zero pulse / zero position of the position encoder after leaving
the homing switch.
The drive can be on the homing switch before homing.
Mode 1: Traversing direction to negative end of travel range limit switch
Set C1213 = 1.
Function procedure
•
Like mode 0, but the drive traverses in negative direction to travel range limit switch.
