Function library
7-86
L
EDSVS9332P-D21 EN 3.0
7.5.13.9 Prg. fct. “Switch output after positioning”
Purpose
Like “Switch output before positioning”.
Function
•
Selection of any PFO under C1322/x. It is also possible to switch all PFO at the same time or
in groups of 8.
•
Selection of the signal level (setting or resetting) under C1323/x.
•
32PFOareavailable(seePOS-PFO).
•
GDC input: Dialog “Programming”
•
Default setting: not active
Tip!
If an output is to be set and reset before a positioning process, the output will not be switched , if no
positioning has taken place or the target position has been reached in the same cycle. For remedy
reset the output in one of the following PS’s. The output will then be switched for at least one cycle.
7.5.13.10 Prg. fct. “Waiting time”
Purpose
Continue program only after waiting time is over.
9300POS011
W a i t i n g
t i m e
V T T I M E - N o
o v e r ?
N
V T T I M E - I N 1
V T T I M E
C 1 3 5 8 / 1
C 1 3 5 9 / 1
V T T I M E - I N 2
C 1 3 5 8 / 2
C 1 3 5 9 / 2
V T T I M E - I N 3
C 1 3 5 8 / 3
C 1 3 5 9 / 3
V T T I M E - I N 4
C 1 3 5 8 / 4
C 1 3 5 9 / 4
C 1 3 0 5 / 1
V T T I M E - O U T 1
C 1 3 0 5 / 2
V T T I M E - O U T 2
C 1 3 0 5 / 3
V T T I M E - O U T 3
C 1 3 0 5 / 4
V T T I M E - O U T 4
C 1 3 0 5 / 5
. . .
C 1 3 0 5 / 3 0
V T T I M E - N o 1
V T T I M E - N o 2
V T T I M E - N o 3
V T T I M E - N o 4
V T T I M E - N o 5
V T T I M E - N o 3 0
V T T I M E - N o 3 1
V T T I M E - N o 3 2
V T T I M E - N o 3 3
V T T I M E - N o 3 4
C 1 3 8 7 / x
. . .

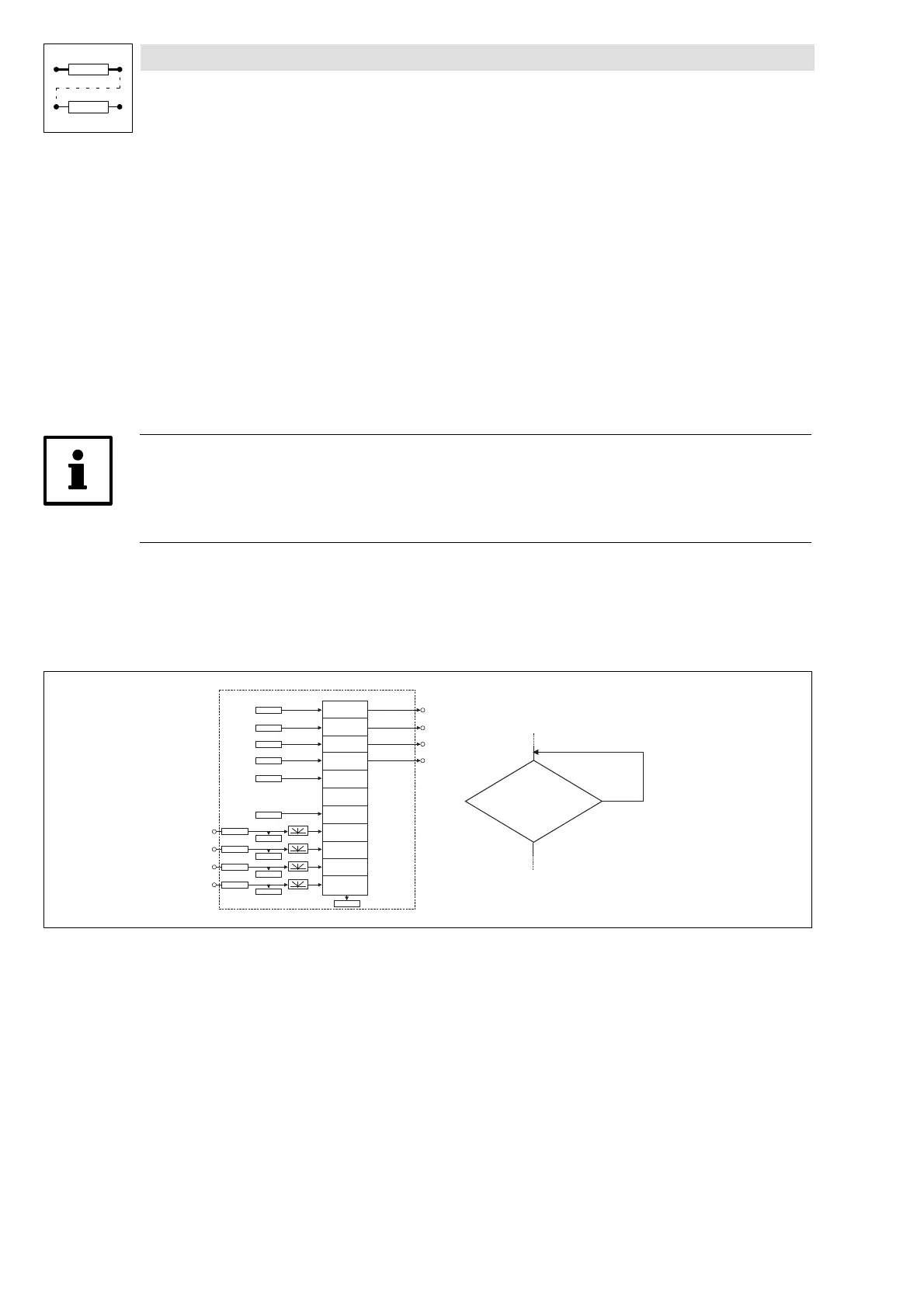

Fig. 7-42 Scheme - Waiting time
Function
•
Waiting time selection from VTTIME under C1324/x.
•
GDC input: Dialog “Programming”
•
Default setting: not active
