Function library
7-102
L
EDSVS9332P-D21 EN 3.0
Function
•
The analog input value is added to the value at input AINx-OFFSET.
•
The result of the subtraction is limited to ±200 %.
•
The limited value is multiplied by the value which is applied to input AINx-GAIN.
•
Then the signal is limited to ±200%.
•
The signal is output at AINx-OUT.
AIN -- OFFSET
AIN --GAIN
iN
AIN --OUT

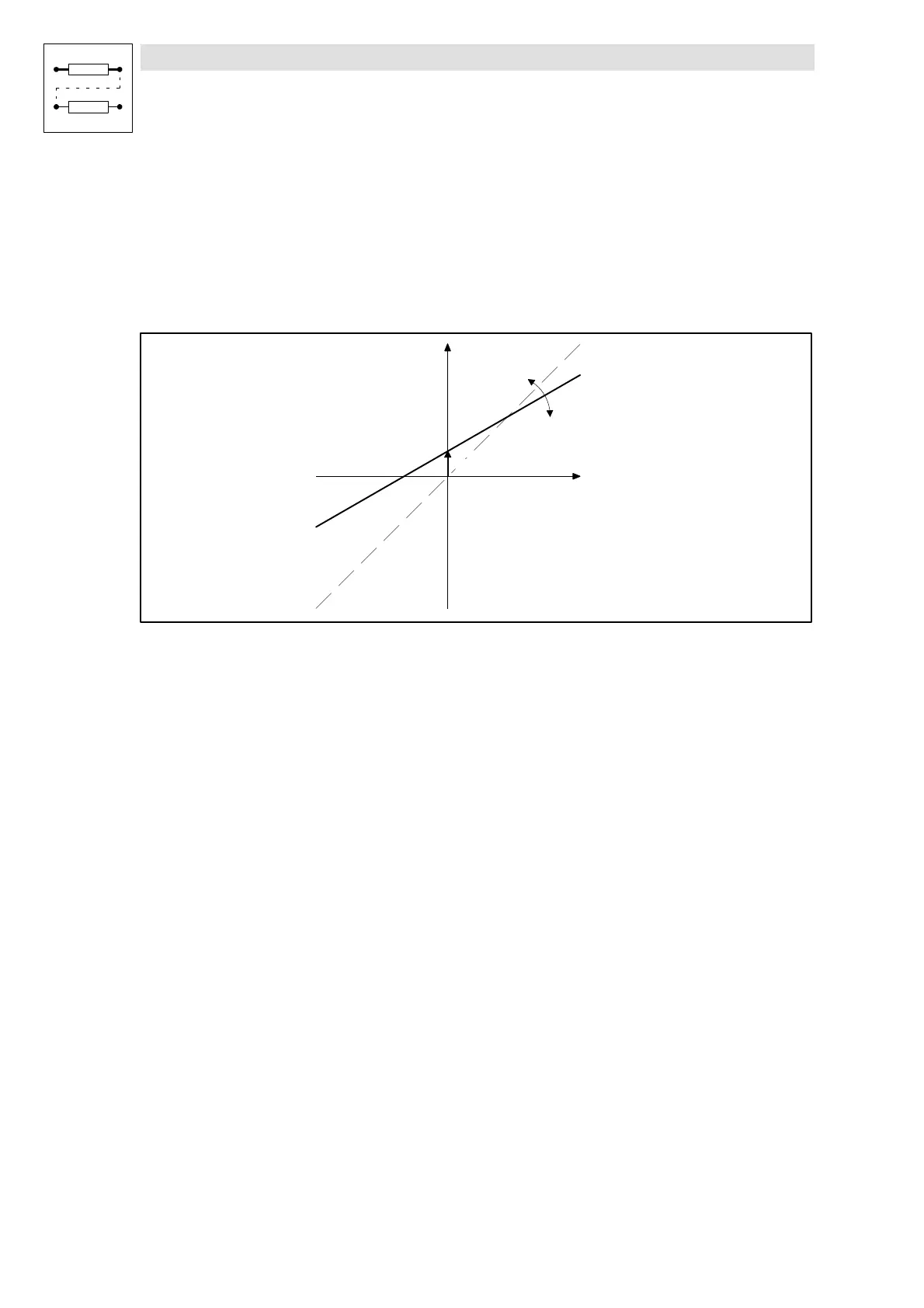

Fig. 7-55 Offset and gain of the analog input
