Function
ANDx-IN1 ANDx-IN2 ANDx-IN3 ANDx-OUT
0 0 0 0
1 0 0 0
0 1 0 0
1 1 0 0
0 0 1 0
1 0 1 0
0 1 1 0
1 1 1 1
The function corresponds to a series connection of normally-open contacts in a contactor control.
ANDx-IN1
ANDx-IN2
ANDx-IN3
ANDx-OUT

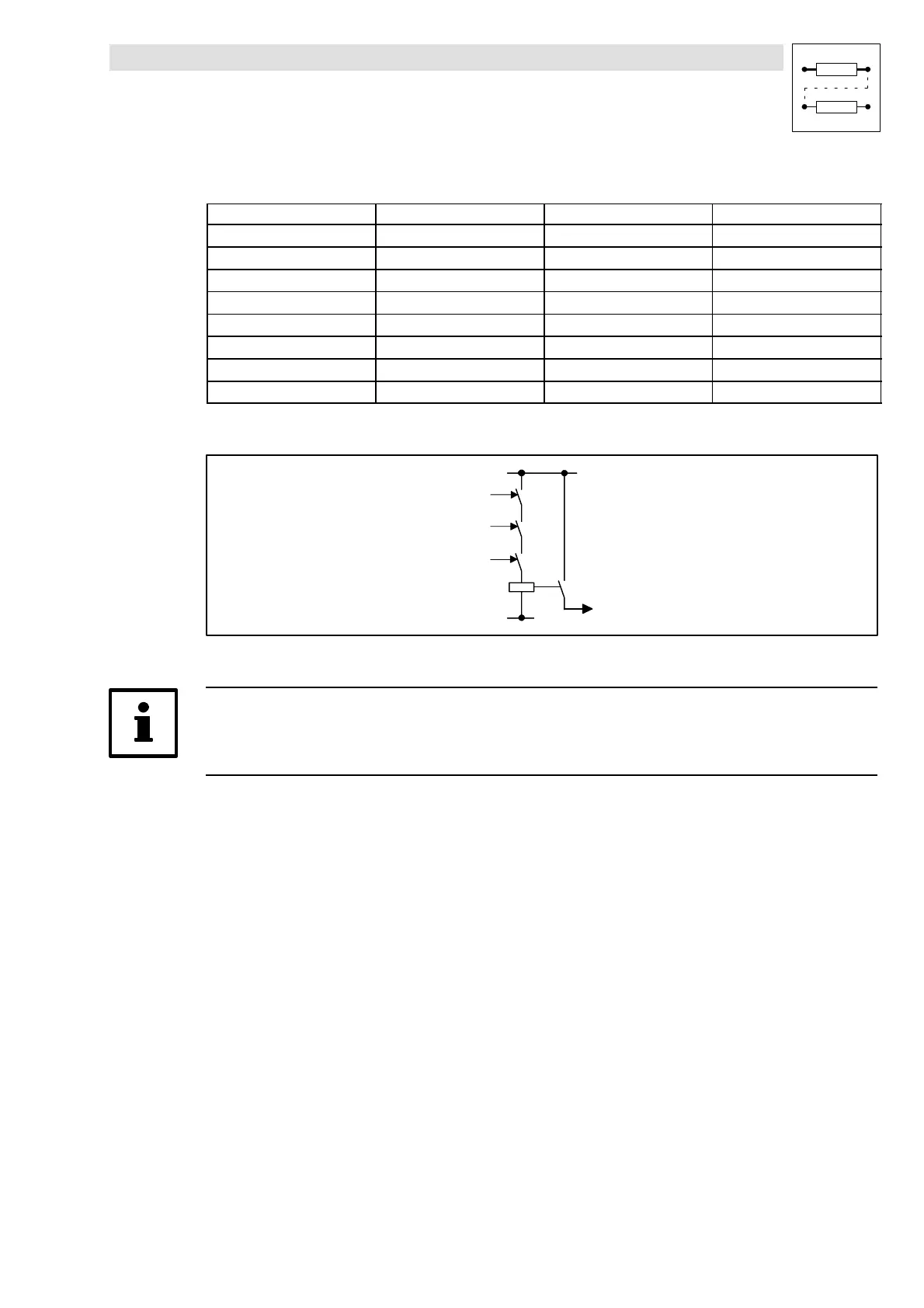

Fig. 7-61 AND function as a series connection of normally-open contacts
Tip!
If only two inputs are required, use the inputs ANDx-IN1 and ANDx-IN2. Assign the input ANDx-IN3
to the signal source FIXED1 via the configuration code.
