Function library
7-199
L EDSVS9332P-D21 EN 3.0
FCNT2-CLKUP
C1107/1
FCNT2-CLKDWN
C1107/2
C1109/1
C1109/2
FCNT2-LD-VAL
C1106/1
C1108/1
FCNT2-LOAD
C1107/3
C1109/3
FCNT2-OUT
FCNT2-EQUAL
C1106/2
C1108/2
FCNT2-CMP-VAL
C1105
CTRL
FCNT2
FCNT-Modus

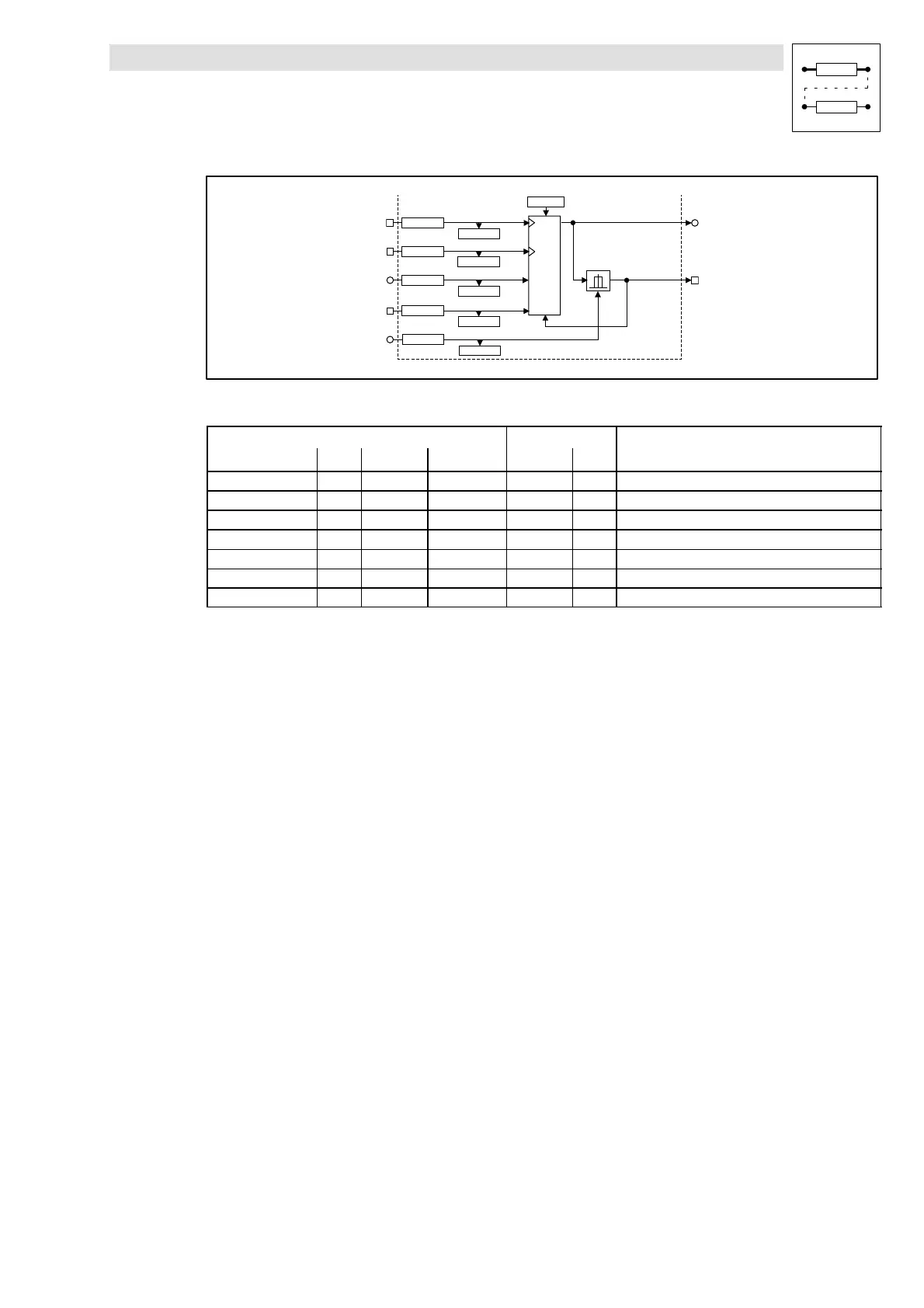

Fig. 7-154 Free piece counter (FCNT2)
Signal
Source Note
Name Type DIS DIS format CFG List
FCNT2-CLKUP d C1109/1 bin C1107/1 2 LOW-HIGH edge = Increment counter by 1
FCNT2-CLKDWN d C1109/2 bin C1107/2 2 LOW-HIGH edge = Decrement counter by 1
FCNT2-LD-VAL a C1108/1 dec C1106/1 1 Start value
FCNT2-LOAD d C1109/3 bin C1107/3 2 HIGH = Accept start value
FCNT2-CMP-VAL a C1108/2 dec C1106/2 1 Comparison value
FCNT2-OUT a - - - - Count limit ed to 199.99% corresponds to 32767
FCNT2-EQUAL d - - - - HIGH = comparison value reached
