Function
ORx-IN1 ORx-IN2 ORx-IN3 ORx-OUT
0 0 0 0
1 0 0 1
0 1 0 1
1 1 0 1
0 0 1 1
1 0 1 1
0 1 1 1
1 1 1 1
The function corresponds to a connection in parallel of NO contacts in a contactor control.
ORx-IN2
ORx-IN1
ORx-IN3
ORx-OUT

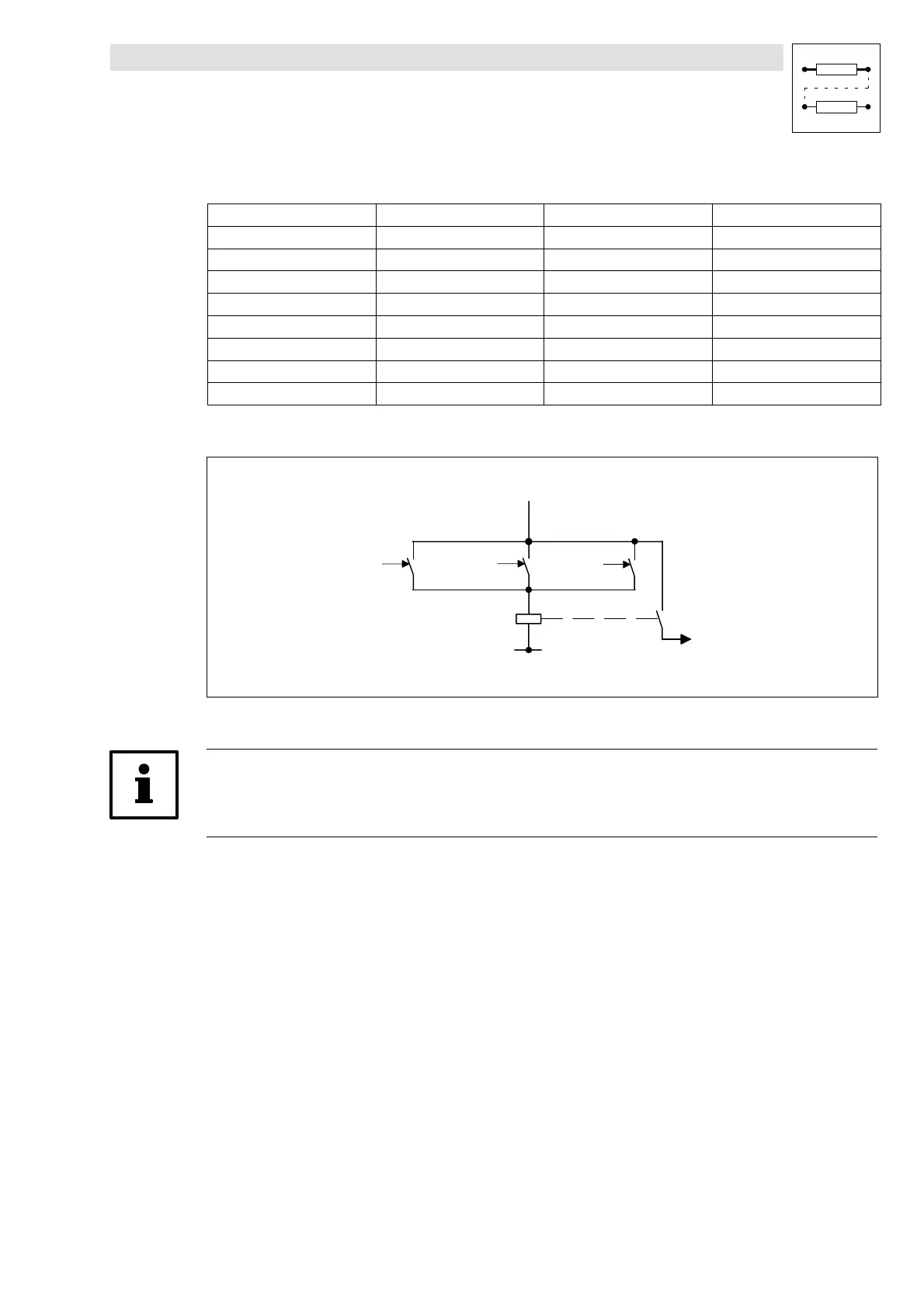

Fig. 7-192 Function of the OR operation as a parallel connection of NO contacts.
Tip!
If only two inputs are needed, use the inputs ORx-IN1 and ORx-IN2. Assign the input ORx-IN3 with
thesignalsourceFIXED0.
