7.6.3.7 System speed monitoring N
Max
Purpose
Process monitoring
MONIT
MONIT-N
MAX
MCTRL-N
ACT
C0596

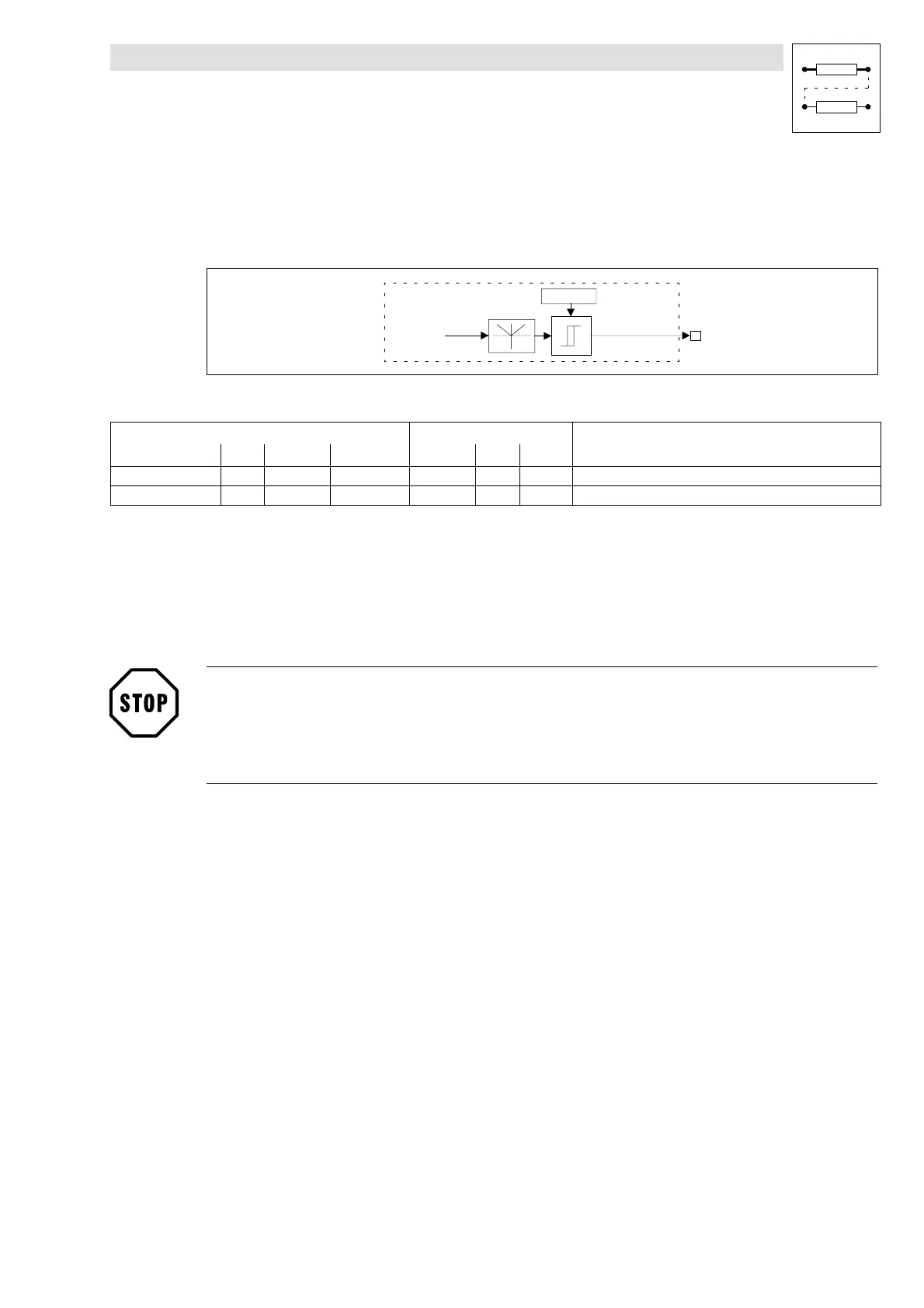

Fig. 7-240 System speed monitoring N
Max
Signal Source Note
Name Type DIS DIS format CFG List Lenze
MCTRL-N
ACT
- - - - - - cannot be reassigned
MONIT-N
MAX
d - - - - - -
Function
A maximum system speed can be entered under code C0596, independent of the direction of
rotation. The monitoring is released, if:
•
the actual speed exceeds the limit C0596
•
the actual speed exceeds the double value of (n
max
).
Stop!
•
For active loads (e.g. hoists) make sure that no torque is applied at the drive. Special,
system-specific measures are required.
•
If the actual speed encoder fails, it is not ensured that this monitoring reacts.
Features:
•
LECOM no.: 200
•
Reaction: TRIP (cannot be modified)
