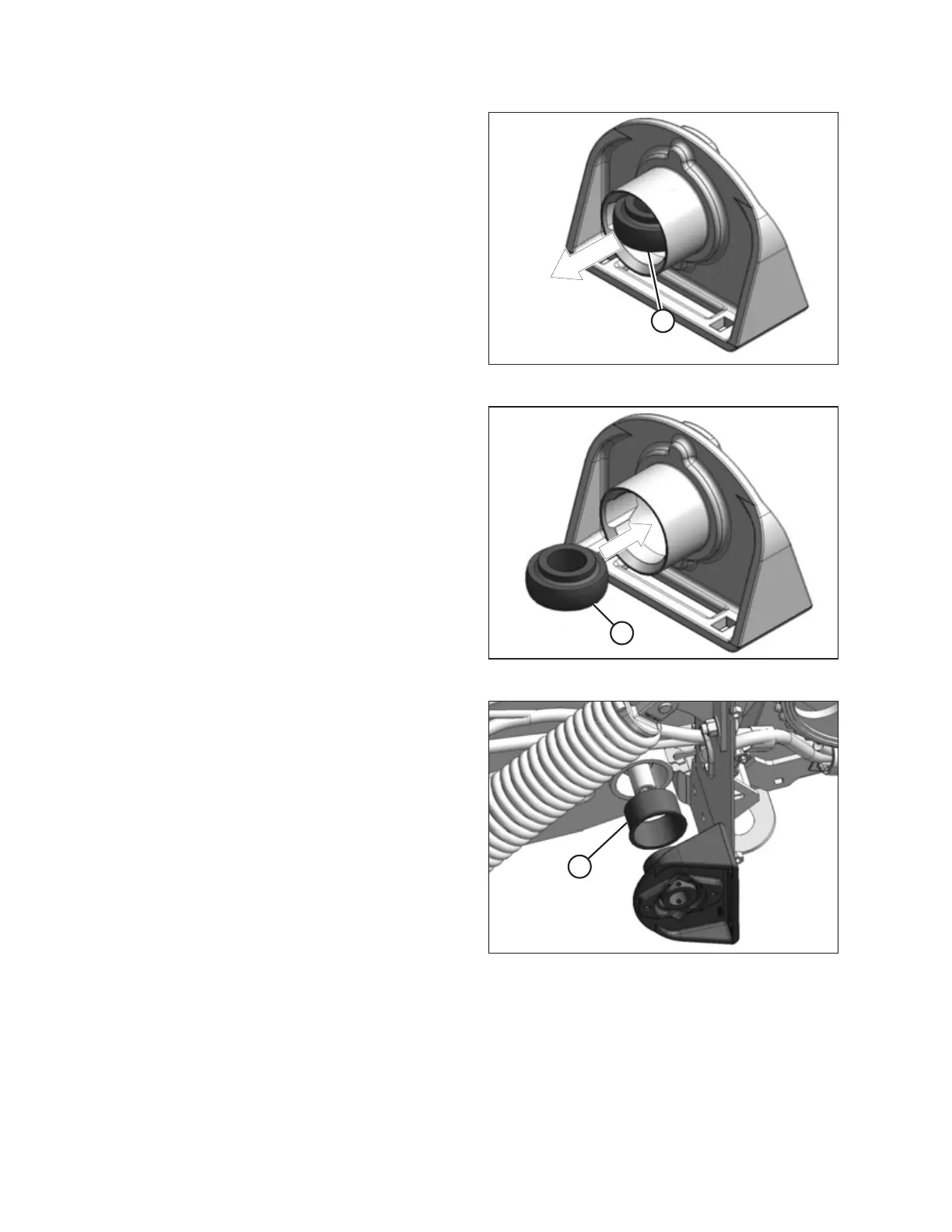

Figure 5.118: Bearing Support
13. Swivel bearing (A) 90 degrees in the support until the outer
race lines up with the slots in the bearing support.
14. Push out bearing (A).
$
Figure 5.119: Bearing Support
15. Line up new bearing (A) with the slots in the bearing
support, and push the bearing into the bearing support.
16. Swivel the bearing 90 degrees and slide it into the groove
inside the bearing support.
$
Figure 5.120: Left Rear Deck
17. Replace bushing (A), if necessary.
MAINTENANCE AND SERVICING
