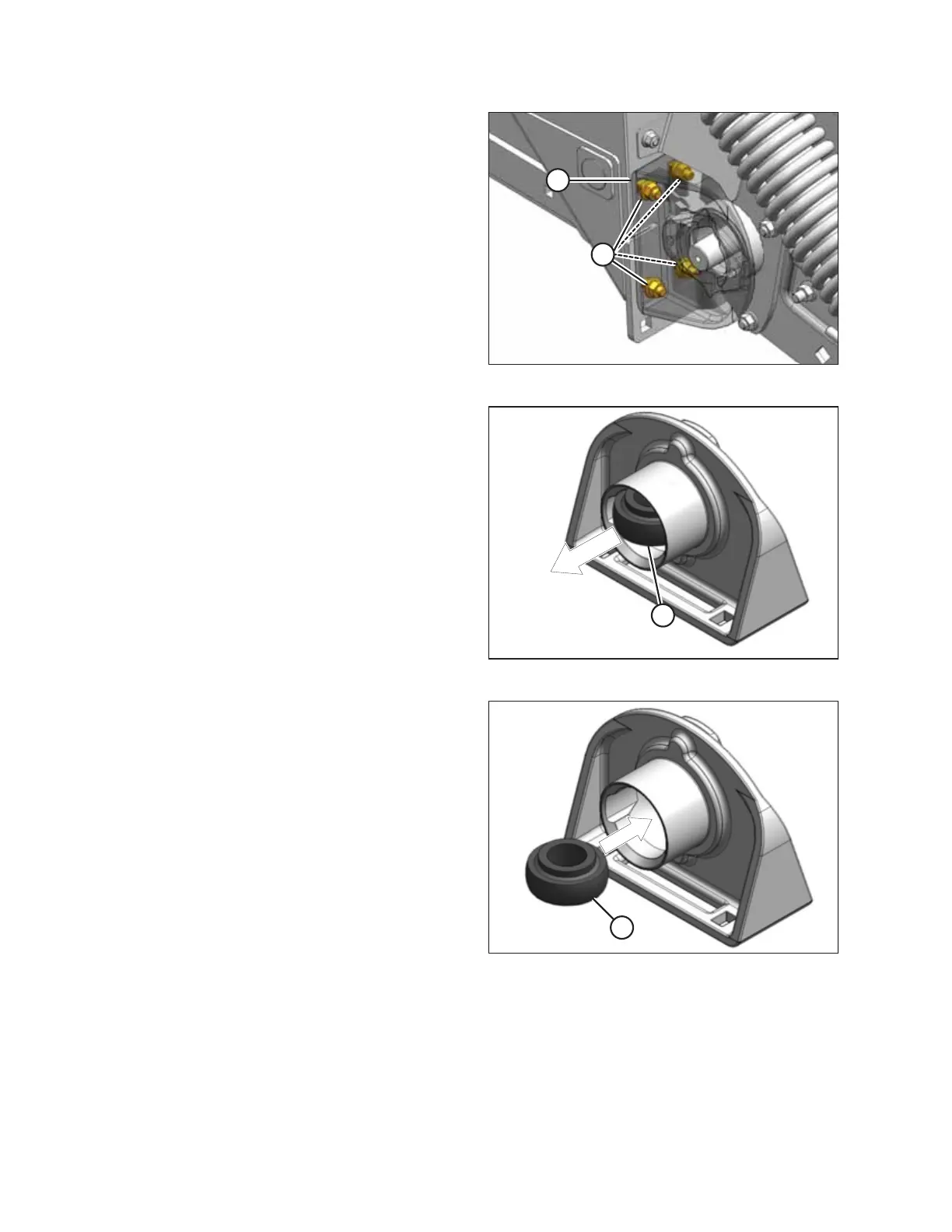

Figure 5.129: Right Rear Deck
13. Ensure that the deck is fully supported and check that the
float spring assembly is loose. You may need to raise the
deck slightly to loosen the assembly.
14. Remove four nuts (A) attaching bearing support (B) to
the frame.
NOTE:
Ensure that the height controller is not damaged when
removing the bolts.
15. Pull bearing support (B) off of the roller shaft.
$
Figure 5.130: Bearing Support
16. Swivel bearing (A) 90 degrees in the support until the outer
race lines up with the slots in the bearing support.
17. Push out bearing (A).
$
Figure 5.131: Bearing Support
18. Line up new bearing (A) with the slots in the bearing
support and push the bearing into the bearing support.
19. Swivel the bearing 90 degrees and slide it into the groove
inside the bearing support.
