Manitowoc Grove GMK 5250L

Additional pages MAXbase 3 302 801 en-us 1
24.08.2018
In addition to the information in the supplied Operating manual there are lifting
capacity tables for further outrigger spans. These additional pages only show the
additional outrigger spans.
Outrigger span type
Three / One
Three outrigger beams are extended the same distance and one outrigger beam
has a smaller outrigger span.
GMK5180-1 / GMK5200-1 / GMK5250L
– One outrigger span smaller – Left
– One outrigger span smaller – Right
There are no separate lifting capacity tables
for this type. The lifting capacities for the
type One outrigger span smaller – left are ena-
bled in a correspondingly mirrored slewing
range;
à Supplied operating manual.

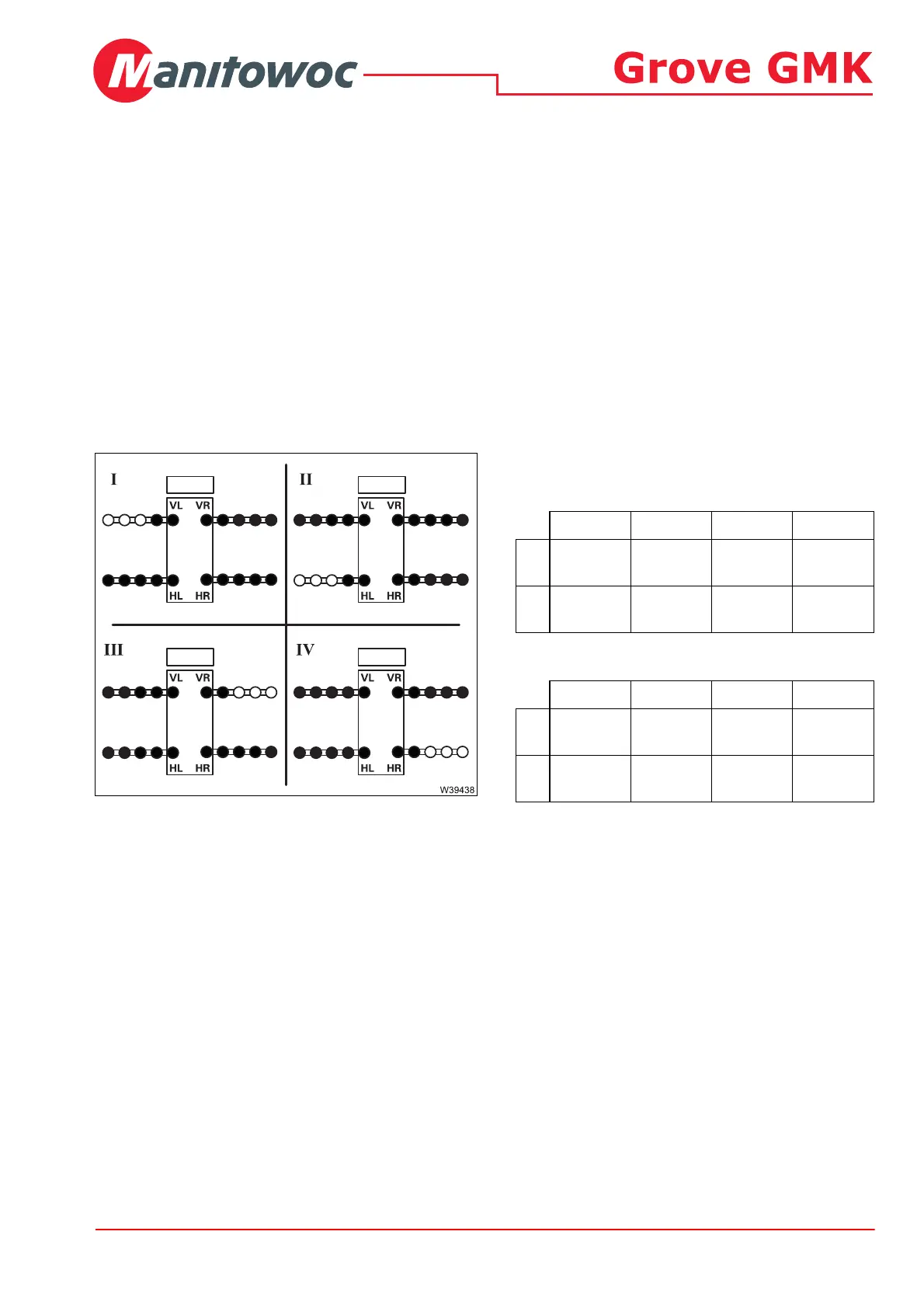

MAXbase
Additional outrigger spans
FR FL RR RL
I
3.900 m
(12.8 ft)
2.155 m
(7.1 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
II
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
2.155 m
(7.1 ft)
FR FL RR RL
III
2.155 m
(7.1 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
IV
3.900 m
(12.8 ft)
3.900 m
(12.8 ft)
2.155 m
(7.1 ft)
3.900 m
(12.8 ft)
