Rigging work
11.9 Rigging/unrigging the counterweight
Operating Instructions GMK5250L 3 302 633 en 11 - 71
27.09.2017
11.9.3 Identification
The truck crane and its corresponding counterweight sections are labelled
with the same serial number.

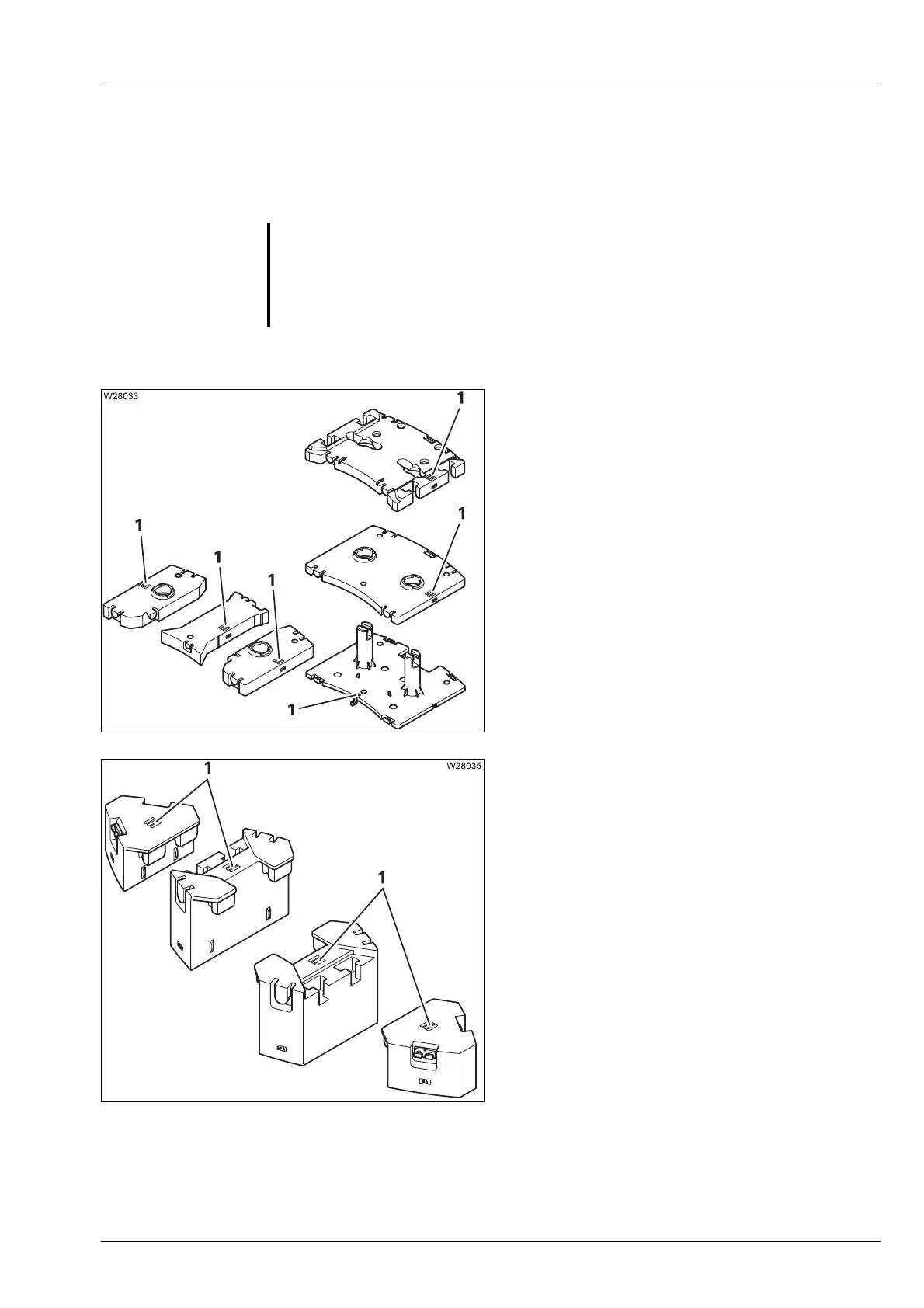

The base plate and the counterweight sections
are labelled with the serial number (1).
Depending on the version, other counter-
weight sections, e.g. blocks, are labelled with
a serial number (1).
S
Danger if counterweight sections are interchanged!
Operate the truck crane only with the counterweight sections that belong to
it. The truck crane and counterweight sections are labelled with the same
serial number.
Other or additional counterweight sections may not be rigged.
