Rigging work
11.9 Rigging/unrigging the counterweight
11 - 72 3 302 633 en Operating Instructions GMK5250L
27.09.2017
11.9.4 Slinging points on the counterweight sections
•
Only use lifting gear of sufficient load bearing capacity.
Weights;
à Counterweight sections, p. 1 - 13.

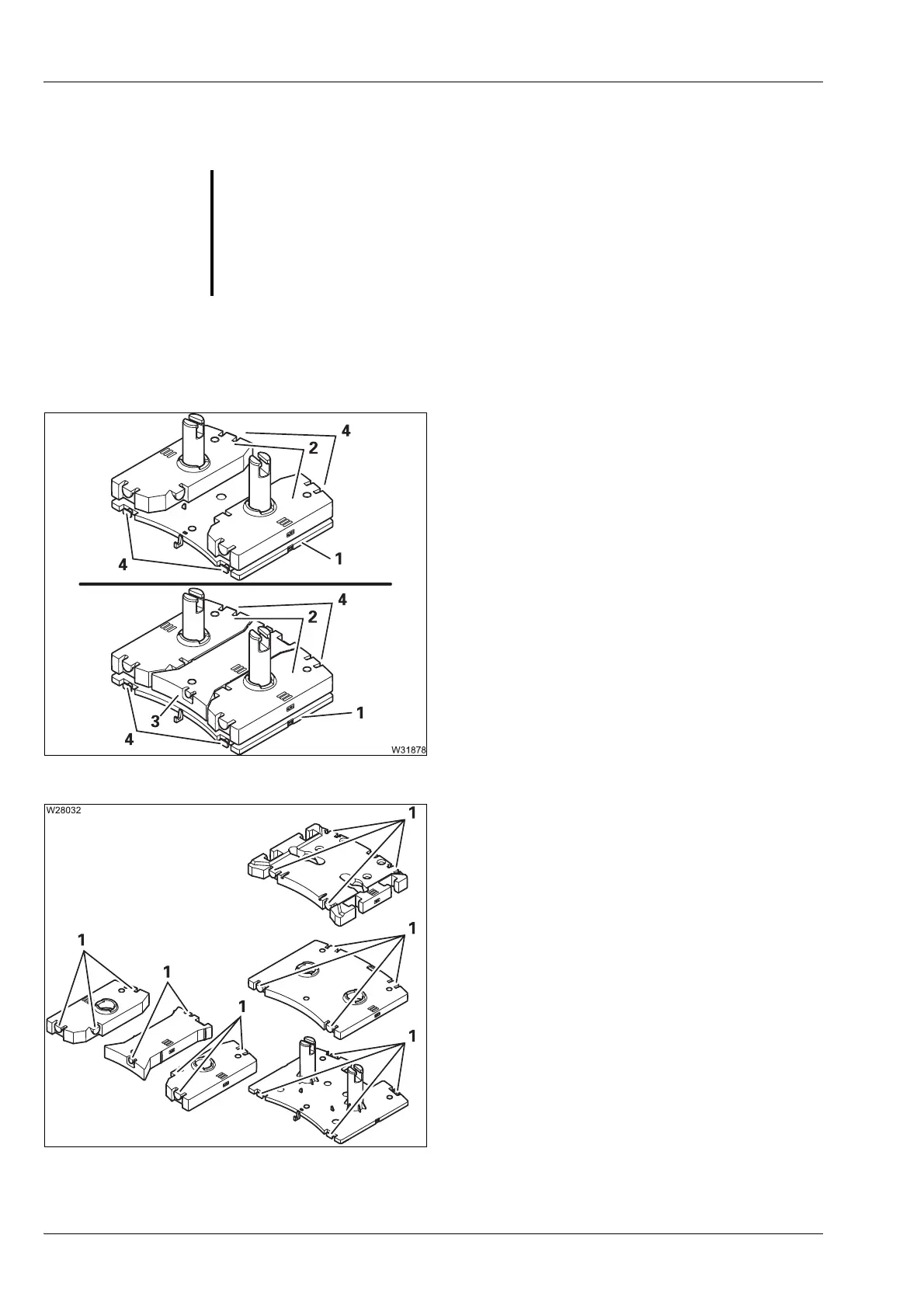

Base plate
• Sling the base plate (1) at the slinging
points (4).
To rig the 16.5 t or 21 t counterweight combi-
nation, the counterweight plates (2) and (3)
can be lifted together with the base plate.
Sections
• Attach the counterweight sections at the
slinging points (1).
G
Risk of accidents if used improperly!
Attach the various counterweight sections only to the intended slinging
points and use lifting gear of sufficient lifting capacity.
Only the slinging points of the base plate are designed for lifting specific
counterweight combinations. Always lift the counterweight sections and
counterweight blocks one at a time.
