Driving modes and rigging for on-road driving
6.5 Installing/removing the outrigger beams
6 - 38 3 302 633 en Operating Instructions GMK5250L
27.09.2017

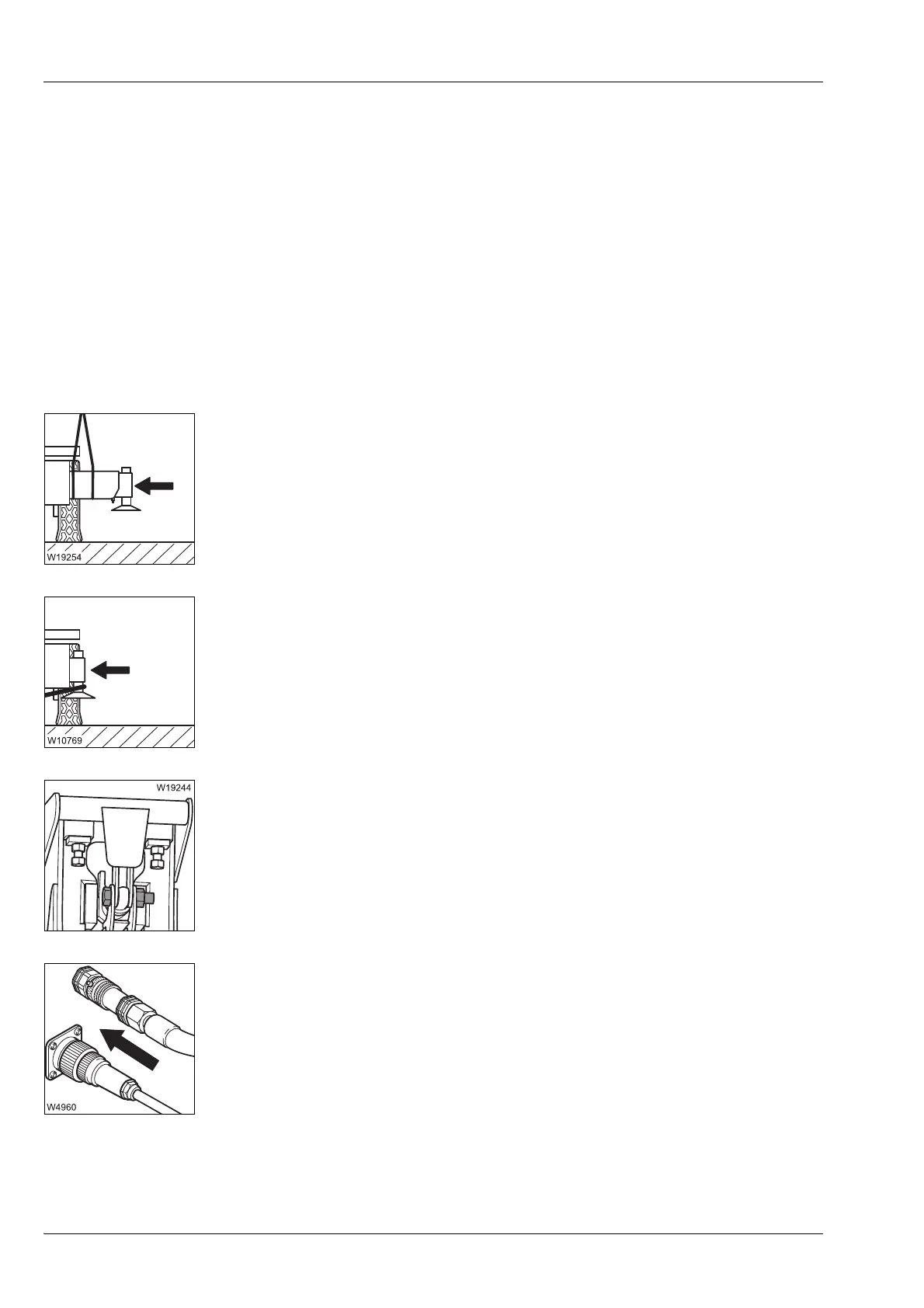

6.5.2 CHECKLIST: Installing the outrigger beams
H
This checklist is not a complete operating manual. There are accompanying
instructions, which are indicated by cross-references.
Observe the warnings and safety instructions there!
1. Preparing the truck crane
– For installation using an auxiliary crane;
à p. 6 - 40.
– For installation using the truck crane;
à p. 6 - 41.
2. – Remove the connection elements from the outrigger box.
– Sling the outrigger beams at their centre of gravity.
– Lift the outrigger beams into the outrigger boxes and remove the
lifting gear.
à Inserting the outrigger beam, p. 6 - 51
3. Sling the outrigger beams and pull into the outrigger boxes until the
connection points align;
à p. 6 - 51.
4. Establish the connection to the support box;
à p. 6 - 49.
5. – Establish the hydraulic connections;
à p. 6 - 45.
– Establish the electrical connection if necessary;
à p. 6 - 46.
