Operating elements for driving
3.2 Brief description of the operating elements
3 - 72 3 302 633 en Operating Instructions GMK5250L
27.09.2017
3.2.16 Level adjustment system
à Operating the level adjustment system, p. 5 - 52.

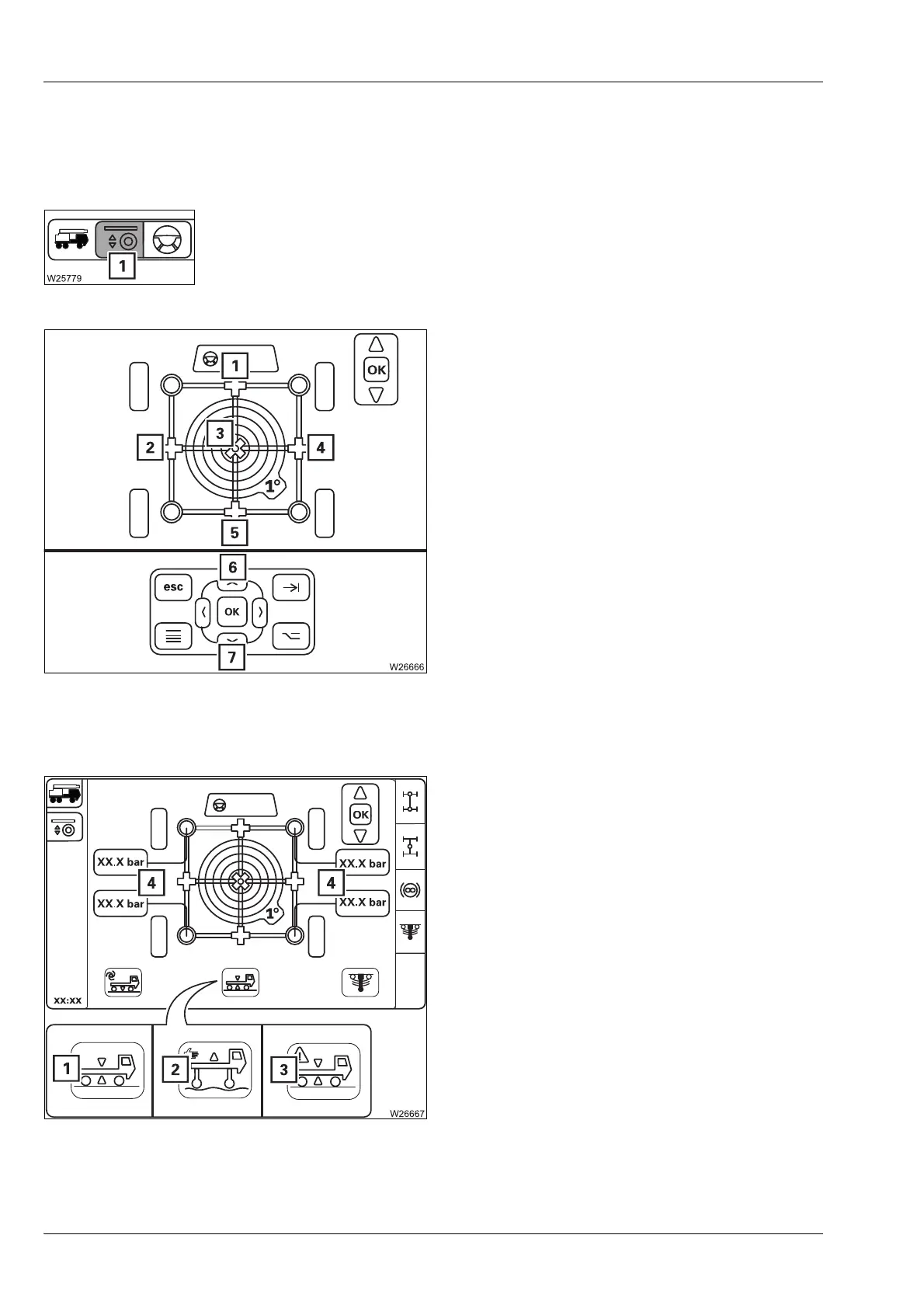

Suspension/level adjustment menu
Lift/lower preselection level
The suspension is switched on
.
Select and confirm the corresponding symbol.
Level change
Movement stops after the button is released and when an end position is
reached.
Vehicle level display
The current status is shown using different
symbols:
– To open: Select symbol (1) and confirm – menu is opened
2 Left level
1 Front level
4 Right level
5 Rear level
3 Overall level
6 Raise the level
7 Lower the level
1 On-road driving level
2 Off-road driving level
3 Error
4 Operation pressure in the suspension
struts
à p. 5 - 52
