Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 94 3 302 633 en Operating Instructions GMK5250L
27.09.2017

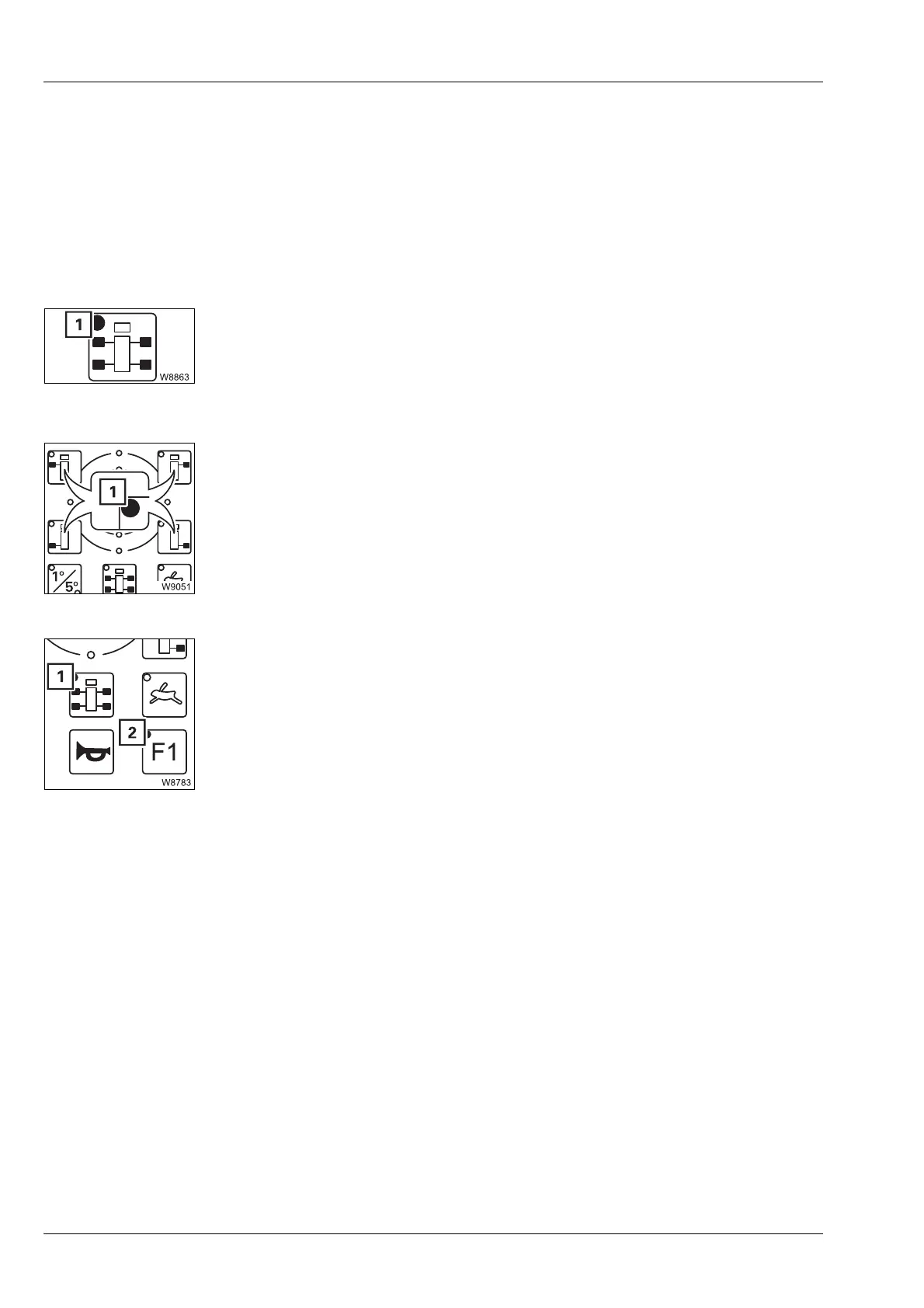

8.2.7 Outrigger – hand-held control
à Extending/retracting outrigger beams, p. 11 - 45
à Extending/retracting supporting cylinders, p. 11 - 53
All directional information refers to the carrier;
à p. 8 - 83.
Pre-select all supporting cylinders
The following functions are pre-selected in the same way:
– Front left outrigger
– Front right outrigger
– Rear left outrigger
– Rear right outrigger
As long as the lamp (1) is on, you can pre-select additional outriggers
Pre-select automatic alignment
– Pre-select: Press button once – lamp (1) lights up – pre-selection on
After 10 seconds – lamp (1) goes out – pre-selection off
– Pre-select: Press
@ button once, press J button once,
Lamps (1) and (2) light up – pre-selection on
After 10 seconds – lamps go out – pre-selection off
