Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 111
27.09.2017

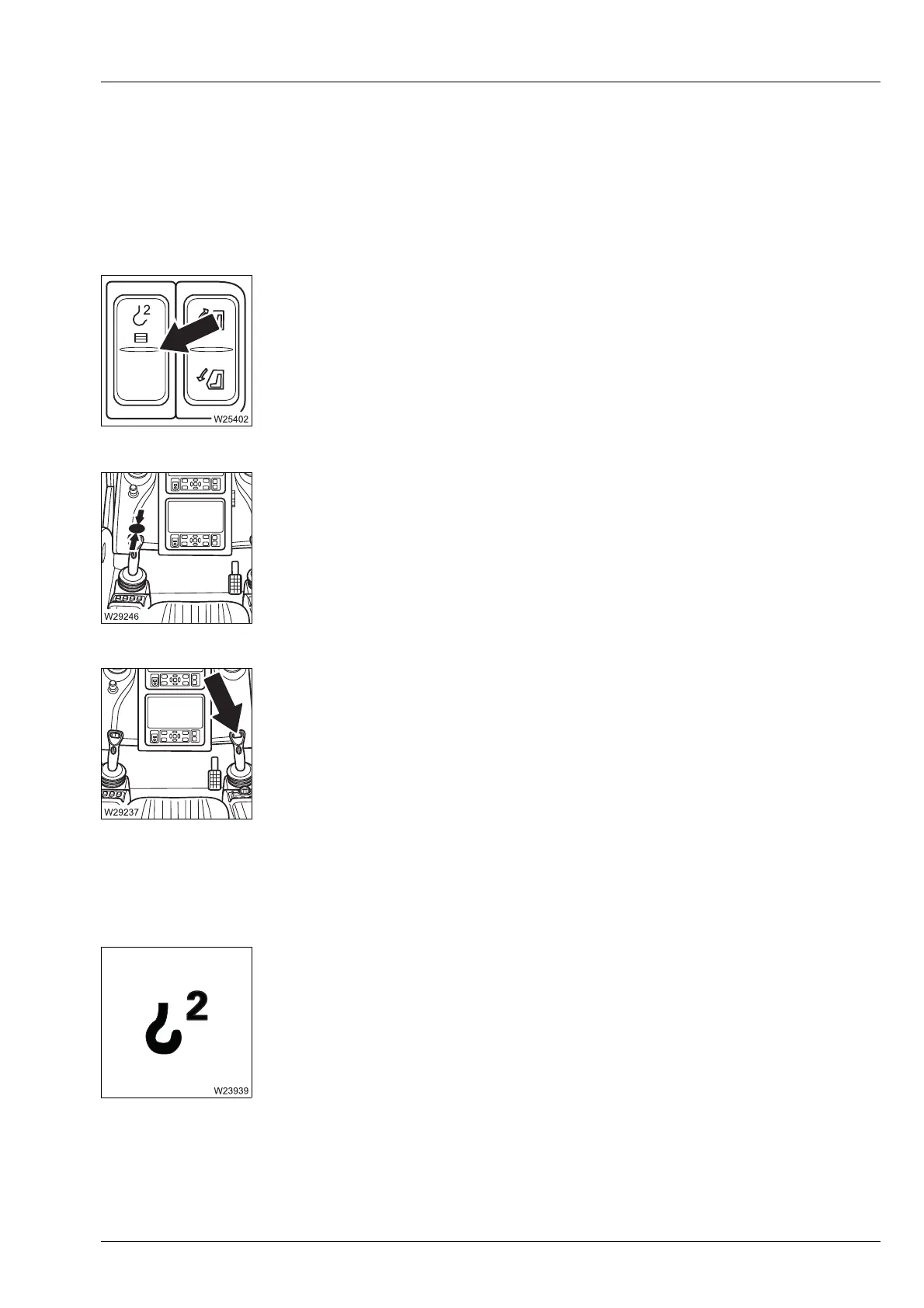

8.2.16 Auxiliary hoist
à Auxiliary hoist, p. 10 - 79.
Control panels
Auxiliary hoist on/off
There is a lamp in the button.
Left control lever
Hoist high-speed mode on/off
The parking brake must be applied.
CCS display
Power units display
s
– Press once: – Lamp bright – auxiliary hoist on
– Lamp dim – auxiliary hoist off
à p. 10 - 79
– Back: Lifting
–Forward: Lowering
à p. 10 - 80
–Left: High-speed mode on, off when released
– Once to the right: High-speed mode on – continuous operation
– Once to right
or once to left:
High-speed mode off
à p. 10 - 114
– Green: Auxiliary hoist on
–Red: Auxiliary hoist off
