Driving modes and rigging for on-road driving
6.4 Rigging the main boom
6 - 34 3 302 633 en Operating Instructions GMK5250L
27.09.2017
6.4.10 Inspections after main boom mounting
• Switch on the ignition.

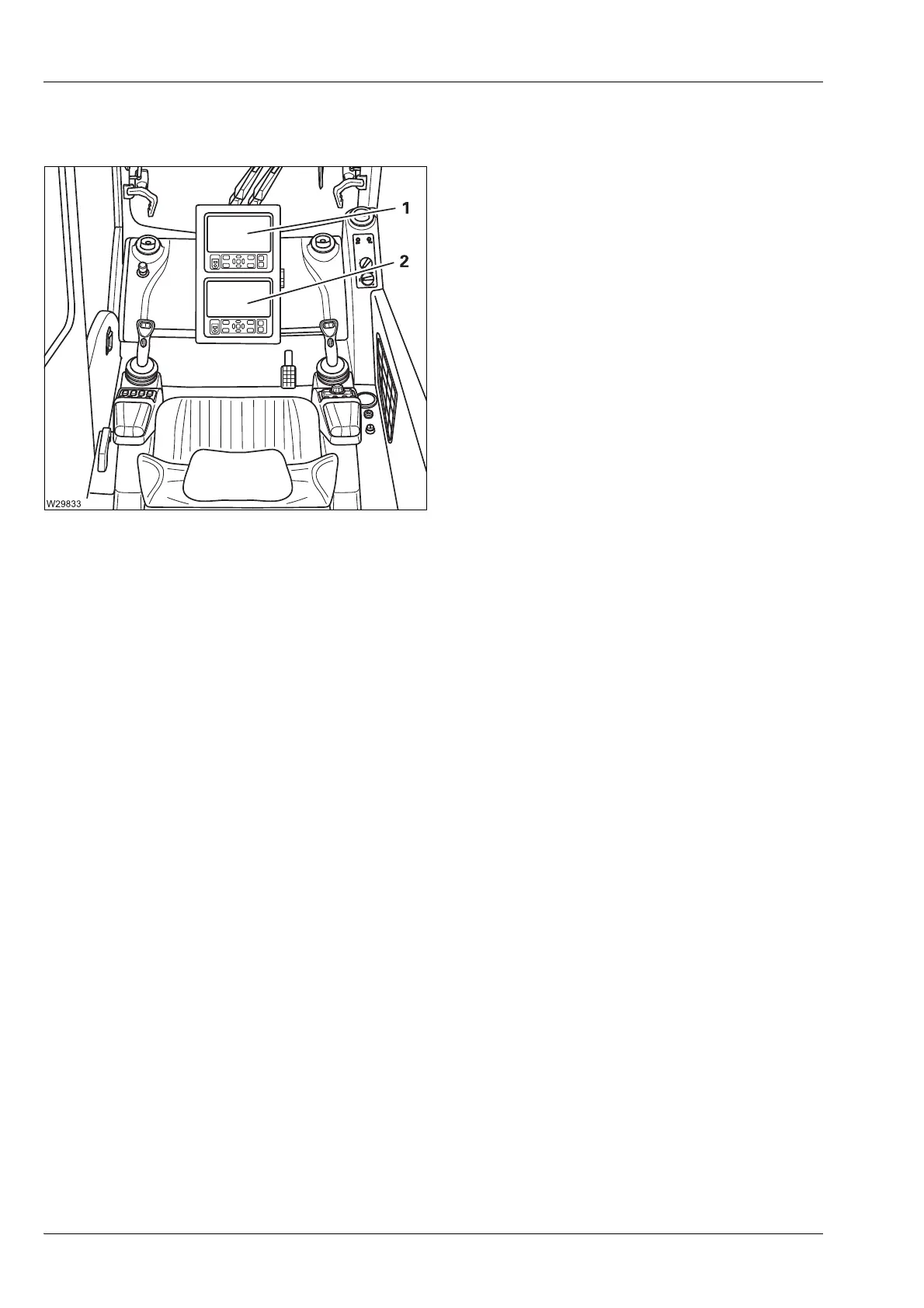

• Check if the RCL (1) or CCS (2) control unit
shows an error message.
• If an error message is displayed, check that
all electrical connections are established;
à p. 6 - 29.
The following requirements must be met for the subsequent inspection:
– The truck crane is on outriggers.
– The main boom must be resting in the boom rest.
– The current rigging mode is shown on the
RCL display.
• Telescope the telescopic section approx. 1 m out and back in.
• Retract the telescoping cylinder into another telescopic section and
mechanically lock it there.
• Check to see if the hydraulic connections in the turntable are sealed.
H
Before operating for the first time, carry out the movement Incline lattice
extension
with the hydraulically derricking lattice extension and check if
the corresponding connections in the turntable are sealed.
