Crane operation
10.4 Operation of the rated capacity limiter
Operating Instructions GMK5250L 3 302 633 en 10 - 59
27.09.2017
The crane movements are released when you have left the shutdown area
– lamps (1) and (2) go out.
10.4.9 Displaying the lifting capacity tables
Open menu
• Open the lifting capacity table menu (1) on the CCS control unit.
Exiting the menu
• Press the button (1) or press the button (2) on the CCS control unit once –
the Start menu opens.
Standard slewing
range type
If the MAXbase slewing range type has been entered; Ã p. 10 - 61.

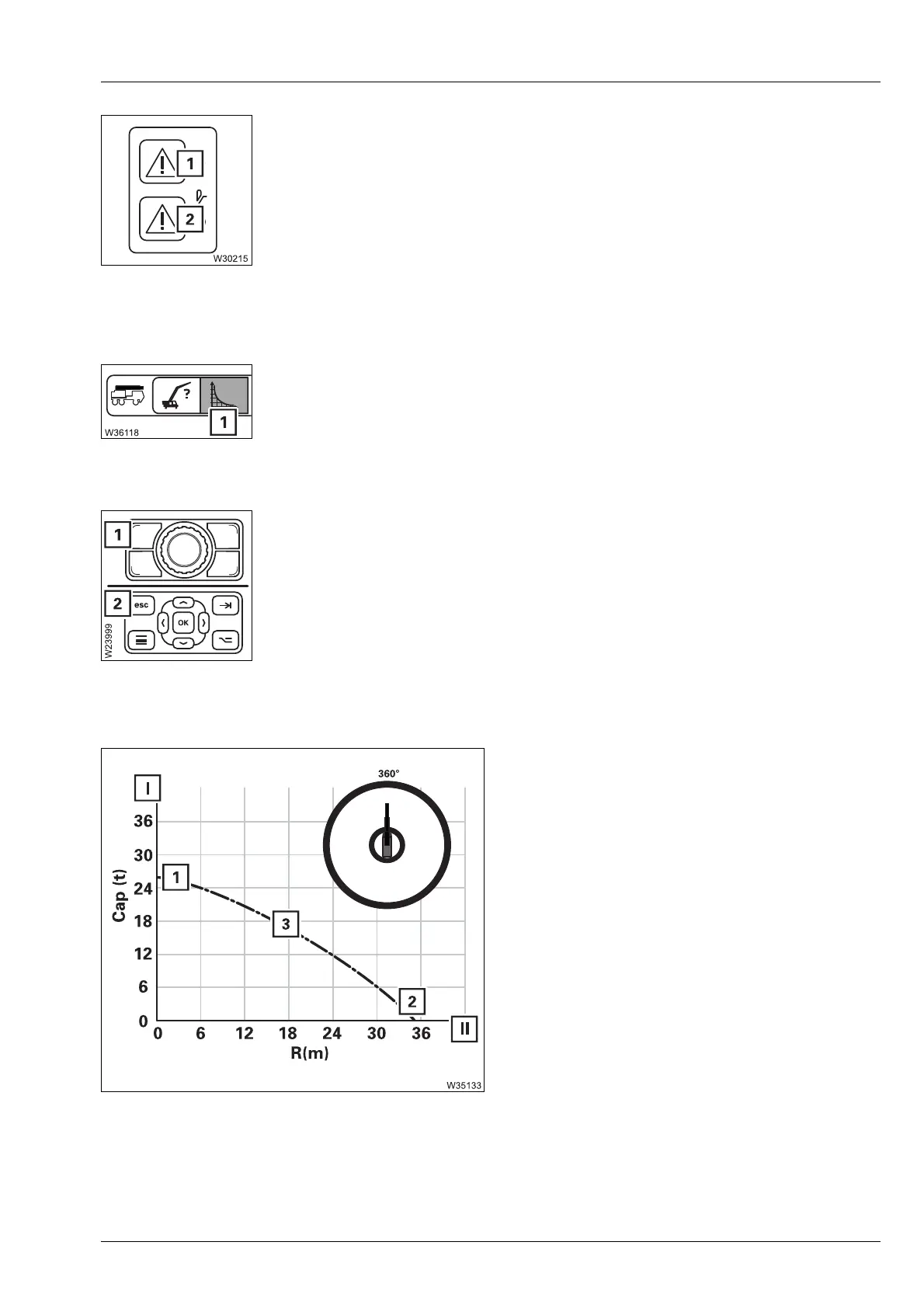

Permissible working range display
The curve (3) applies to the displayed RCL
code and the displayed telescope status.
The working range ends at the maximum
possible working radius (2). Reduction of the
working radius increases the enabled load
along the curve (3) up to the maximum
possible load (1).
s
I Lifting capacity axis – in tons (t) or in
kilopounds (klbs)
II Working radius axis – in metres (m) or
feet (ft)
