Rigging work
11.8 Outrigger operation
Operating Instructions GMK5250L 3 302 633 en 11 - 65
27.09.2017
11.8.11 Outrigger pressure display
H
Especially with asymmetrical outrigger spans, the outrigger pressure dis-
plays do not provide useful information on correct alignment. Horizontal
alignment is the decisive factor for correctly supporting the truck crane;
à p. 11 - 58.
After switching on the ignition, the outrigger pressure displays indicate the
current outrigger pressure for all supporting cylinders.
The set unit (t or klbs) is shown next to the displays.
H
Outrigger cylinders retracted or extended as far as possible will lead to an
incorrect outrigger pressure display.
The display will show the most accurate reading if the movement performed
last was
Extend outrigger cylinders.

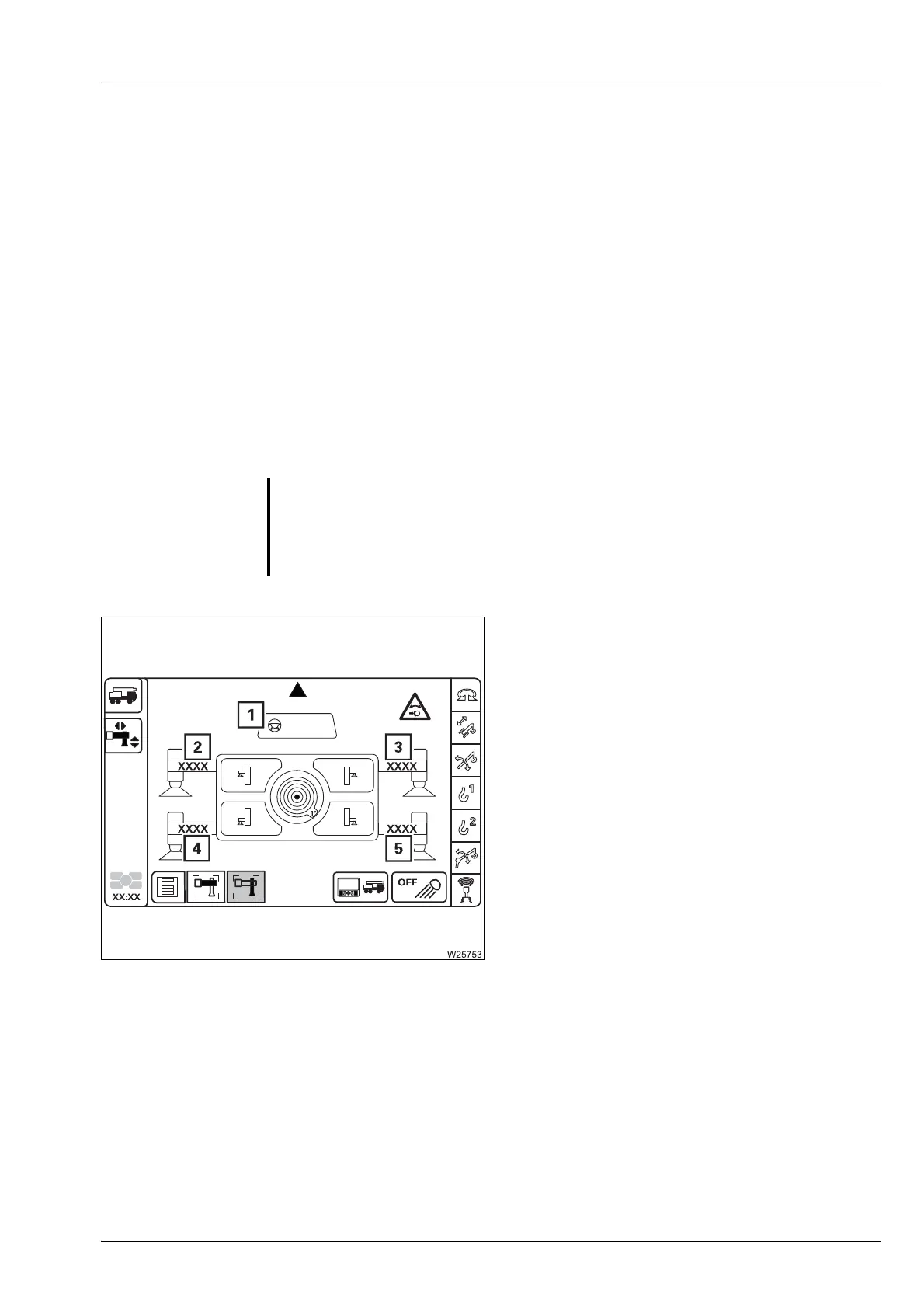

In the Outriggers submenu
The assignment of the displays to the carrier is
given by the directional indicator (1).
s
G
Risk of accidents when misused!
A displayed outrigger pressure over 0 t does nor guarantee protection
against overturning or overloading. For this reason, never override the RCL.
2 Front left outrigger pressure
3 Front right outrigger pressure
4 Rear left outrigger pressure
5 Rear right outrigger pressure
