Driving modes and rigging for on-road driving
6.5 Installing/removing the outrigger beams
Operating Instructions GMK5250L 3 302 633 en 6 - 53
27.09.2017

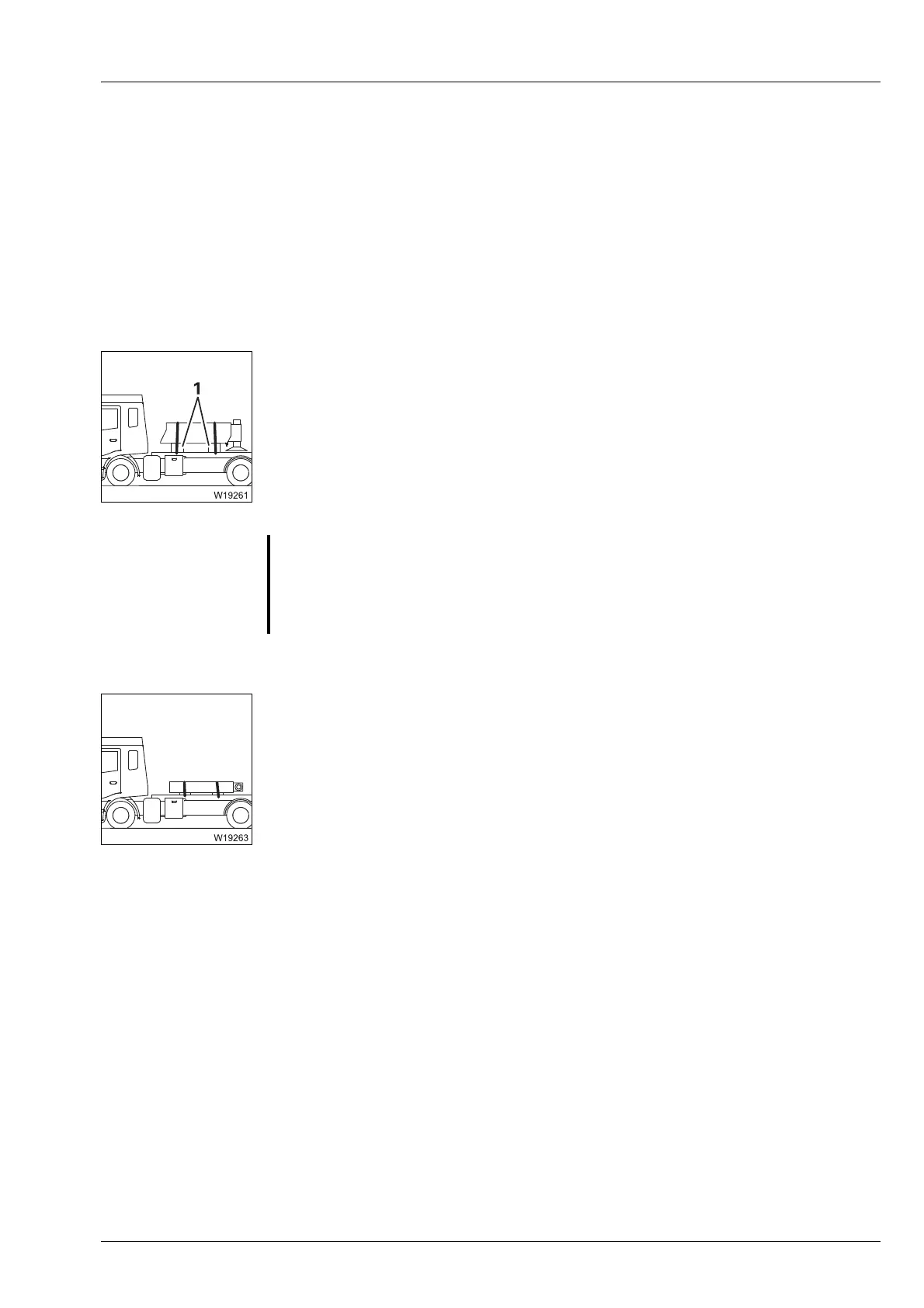

6.5.12 Transporting the outrigger beams
•
For transportation, be sure to use a separate vehicle with sufficient load
bearing capacity. Transport dimensions and weight;
à p. 1 - 10.
• Load the separate vehicle in such a way that the weight is evenly
distributed.
• Load the outrigger beam so that it that does not endanger other traffic.
When the outrigger pads are mounted
• Place the outrigger beam onto a suitable fixture (1).
• Secure the outrigger beam from slipping.
When the outrigger pads are dismounted:
• Lay the outrigger beam onto the side.
• Secure the outrigger beam from slipping.
• Lay the outrigger pads onto the separate vehicle and secure them for
transportation.
S
Risk of damage to the outrigger beams and outrigger pads!
When outrigger pads are mounted, always use a device to set them down.
If you lay the outrigger beams onto the side, connections may tilt and
become damaged.
