Rigging work
11.10 Rigging work on the main boom
11 - 102 3 302 633 en Operating Instructions GMK5250L
27.09.2017
11.10.4 Hook block, separable
The hook block can be separated for on-road driving. The block hook
remains reeved and can be attached to the bumper. The hook can be
transported separately, e.g. on a separate vehicle.
Rigging for
on-road driving

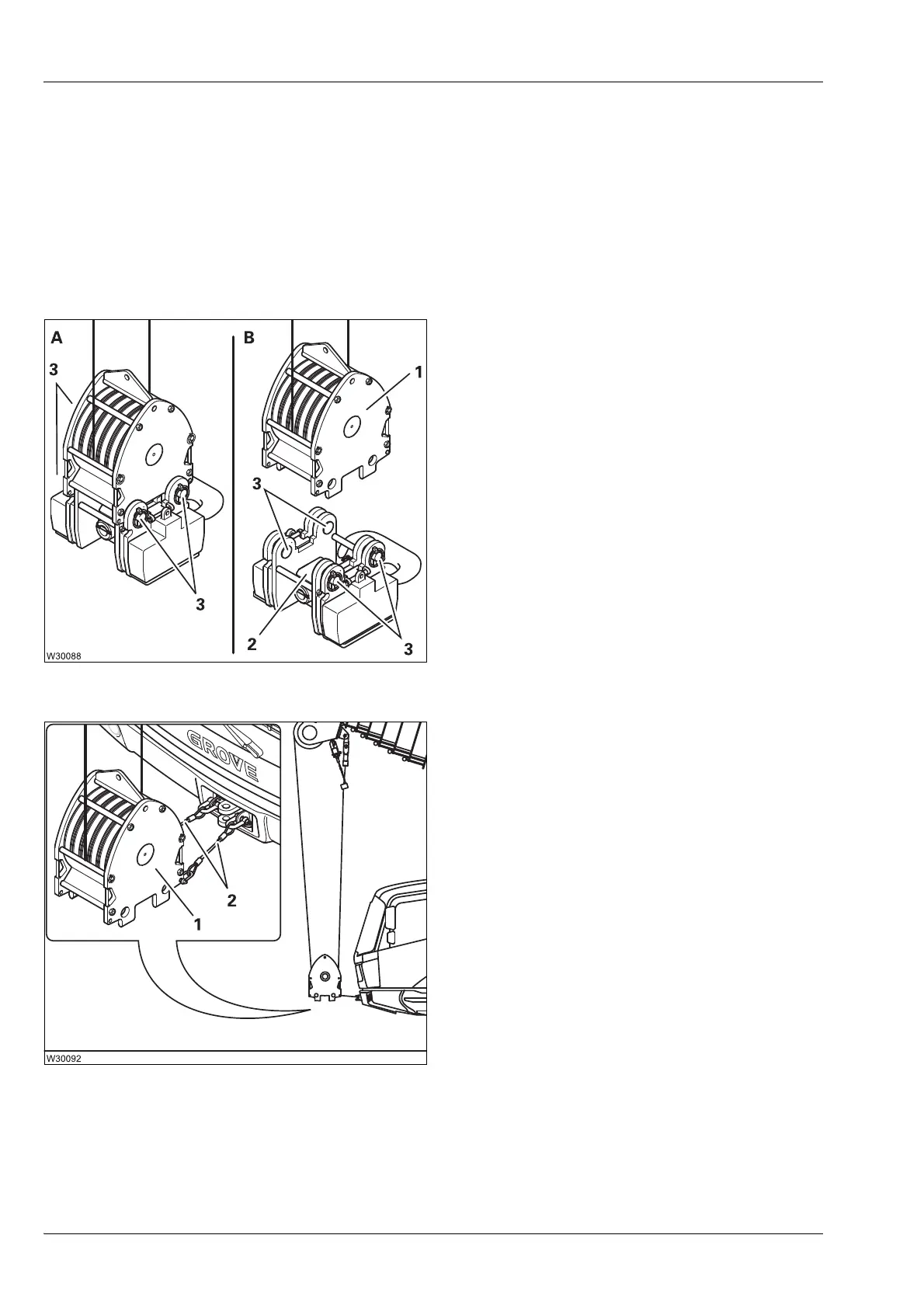

• (A) – Remove the retaining pin and pull out
the pin (3).
• (B) – Raise the block hook (1). Insert the
pins (3) and secure them in the hook.
Stow away the hook (2) so that it is safe for
transportation.
• Raise the block hook (1) vertically above the
holding ropes (2).
• Lower the block hook (1) and fasten it using
the holding ropes (2).
Set down the main boom onto the boom rest
and pull the hoist rope tight only to the extent
that the block hook is stabilised in its position.
