Driving modes and rigging for on-road driving
6.6 Rigging the auxiliary hoist
Operating Instructions GMK5250L 3 302 633 en 6 - 61
27.09.2017
6.6.7 Establishing/disconnecting the hydraulic connection

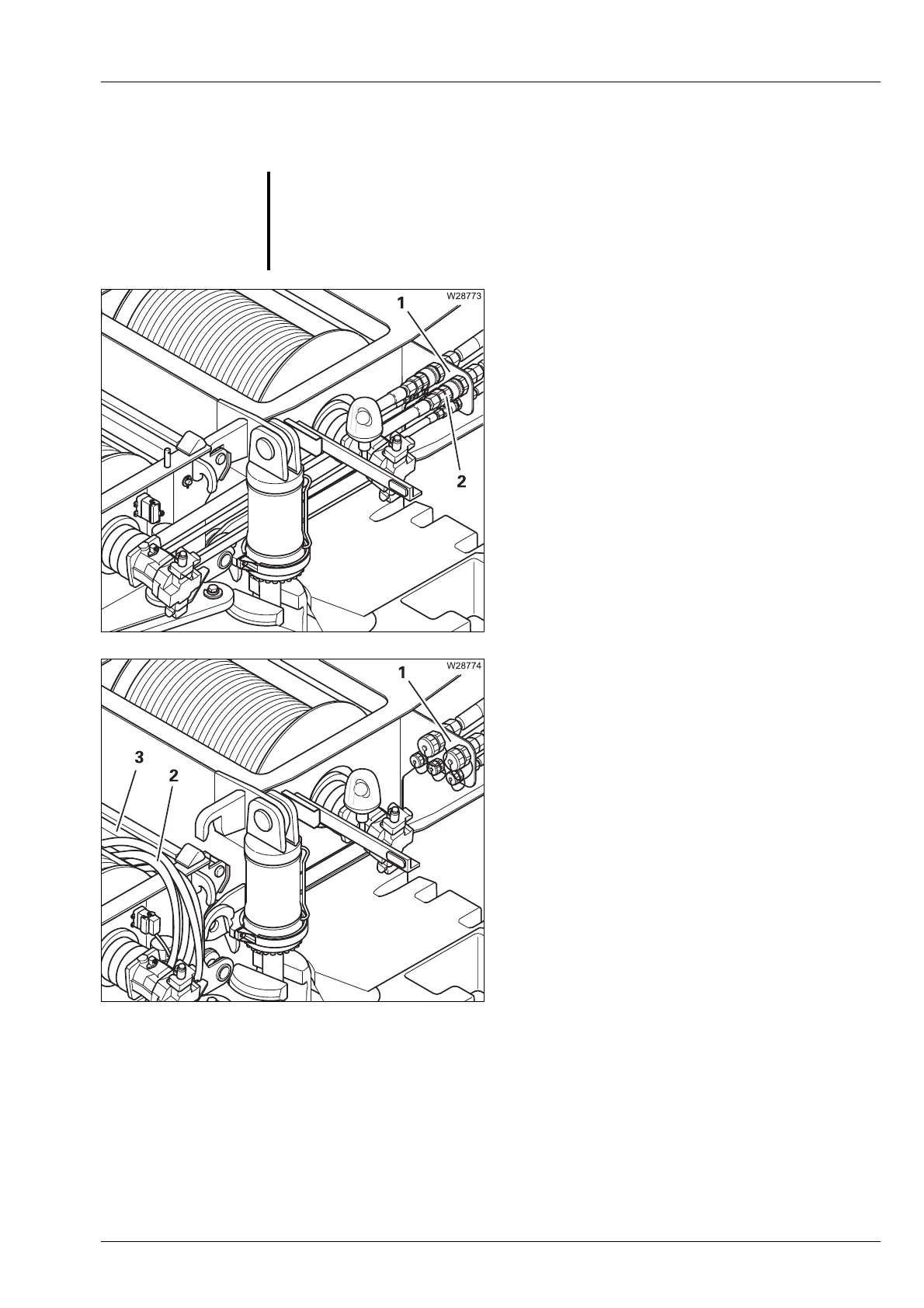

Establishing a connection
The assignment is given by the size and colour
designations.
• Connect the hoses (2) to the connections (1).
Disconnecting a connection
• Remove the hoses (2) from the connec-
tions (1).
• Close all the hoses and connections with the
protective caps.
• Insert the hoses into the hoist frame (3).
S
Risk of damage to hydraulic lines!
Lay the hydraulic hoses so that they will not be damaged during rigging
and crane operation.
