Operating elements for crane operation
8.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 123
27.09.2017

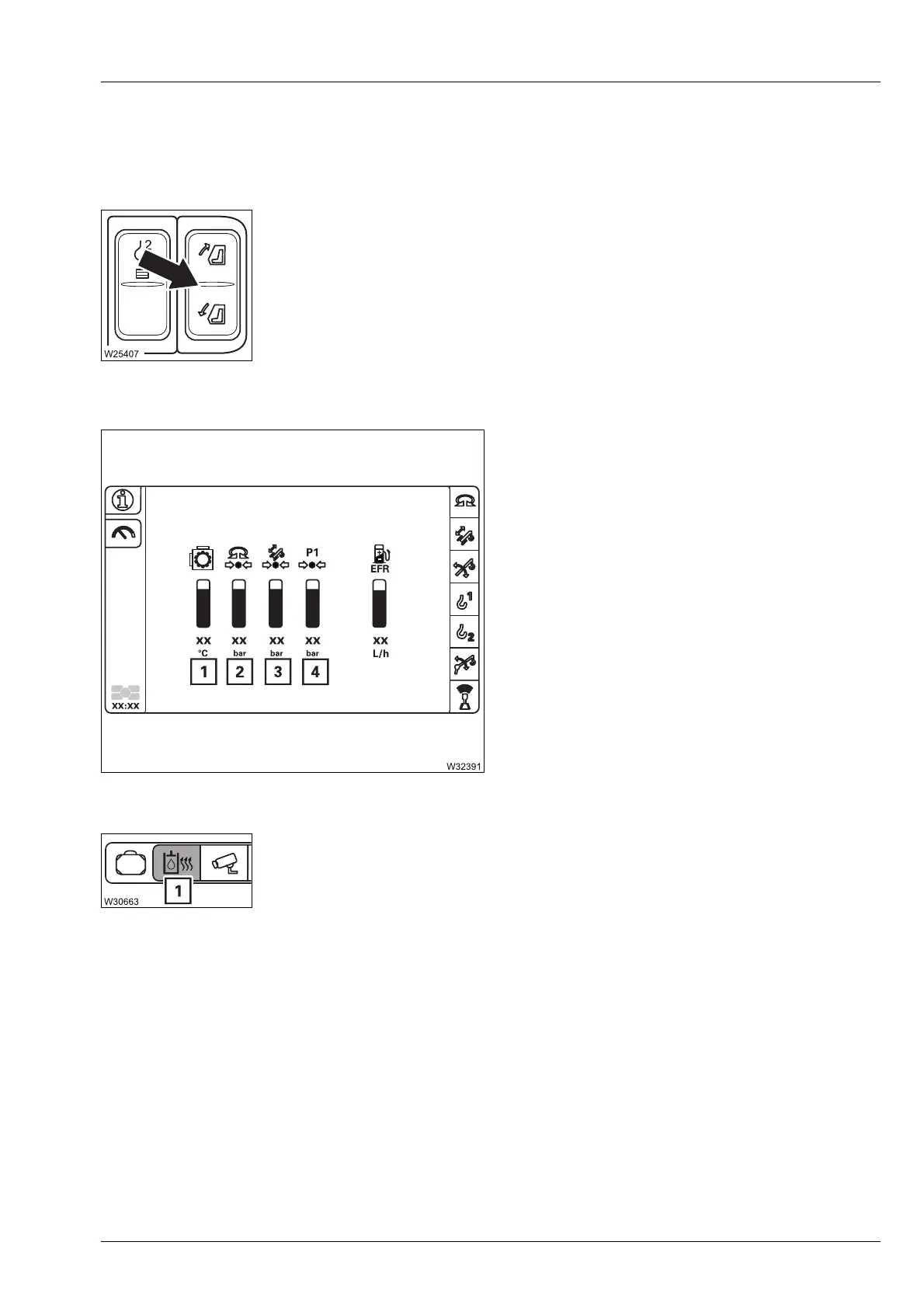

8.2.20 Hydraulic system
Inclining the crane cab
In Information menu
Current pressure in bar for movements of:
Preheating the hydraulic oil
– Press down: incline to the front
– Press up: incline to the rear
à p. 10 - 121
1 Angle gear oil temperature
2 Slewing gear
3 Telescoping mechanism
4 –Hoist
– Derricking gear
– Counterweight hoist unit
– Inclining the crane cab
– Locking units
– To switch on: Select symbol (1) and confirm – symbol is red
– To switch off: Select symbol (1) and confirm – symbol is grey
à p. 10 - 14
