Operating elements for driving
3.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 3 - 67
27.09.2017
3.2.14 Suspension
à Switching the suspension on/off, p. 5 - 15.

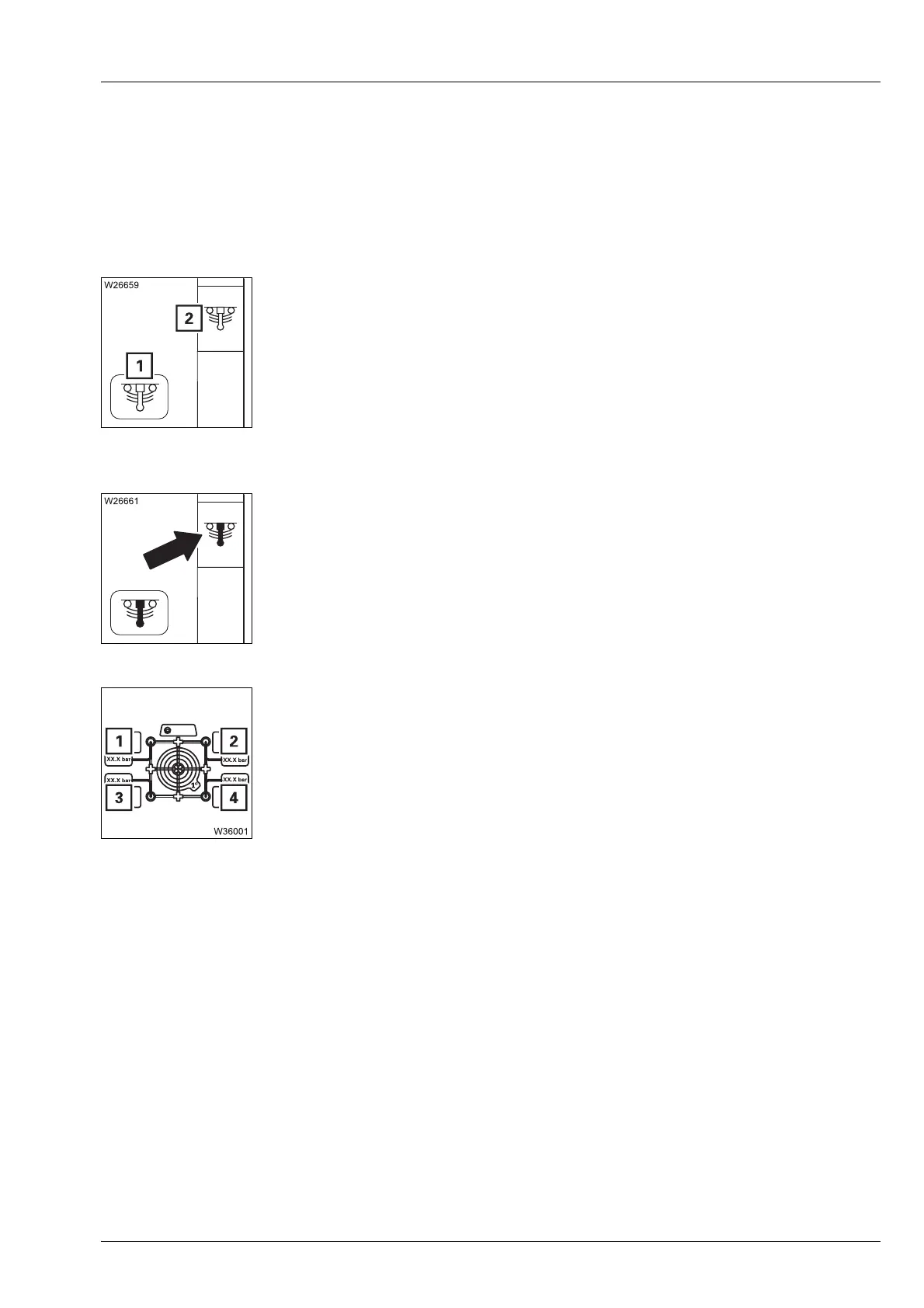

CCS display
Suspension on/off
Suspension display
Suspension operation pressure gauge
– Switch on: Select symbol (1) and confirm – Symbol (2) green
(on-road driving)
– Switching off Select symbol (1) and confirm – Symbol (2) red
(crane operation)
à p. 5 - 15
–Red: Suspension off – blocked for crane operation
– Green: Suspension on – enabled for on-road driving
à p. 5 - 15
1 Suspension pressure for 1st and 2nd axle line to the left
2 Suspension pressure for 1st and 2nd axle line to the right
3 Suspension pressure for 3rd to 5th axle line to the left
4 Suspension pressure for 3rd to 5th axle line to the right
