Operating elements for driving
3.2 Brief description of the operating elements
Operating Instructions GMK5250L 3 302 633 en 3 - 51
27.09.2017
3.2.7 CCS Crane control
The GMK5250L truck crane is equipped with the CCS electronic crane con-
trol system (Crane Control System). CCS includes a control unit in the
driver's cab and several control units (MWSCM and MWCCM) distributed
over the superstructure and carrier.

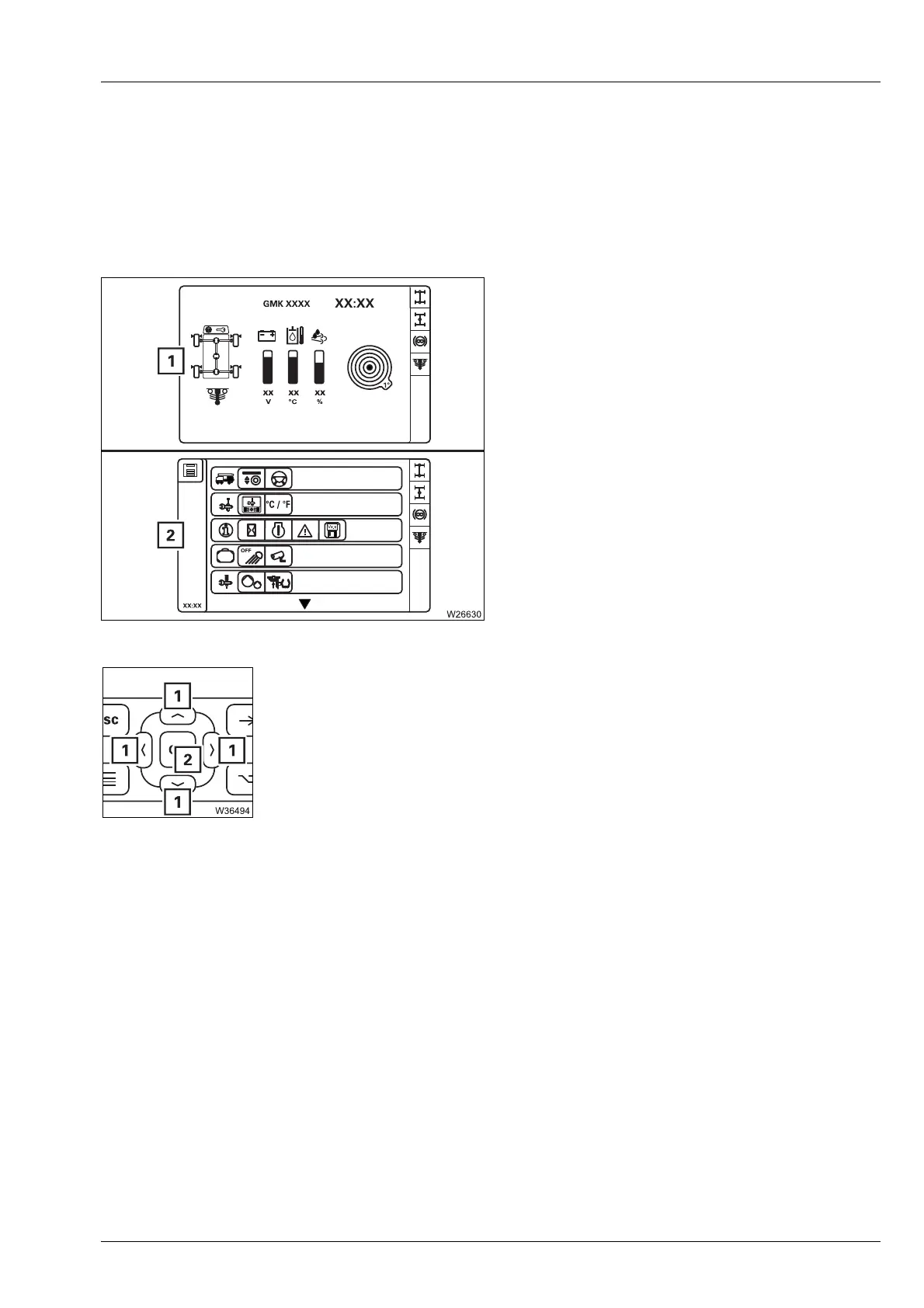

CCS display
The start menu (1) appears after switching on
the ignition.
After pressing a button on the
CCS control
panel, the overview of the menu groups (2)
appears.
A symbol is selected with the arrow buttons in
order to call up a menu. The selected symbol
is shown in red.
The OK button on the control panel is pressed
in order to open a menu.
Menu control
Buttons for selecting, activating and confirming areas on the
CCS display.
–Select
– Activate / confirm
The function of the buttons is different depending on the area.
There are three areas, described in more detail in chapter
Operating elements
for crane operation
.
à In the Menu area, p. 8 - 90
à In the Input area, p. 8 - 90
à In the Operating area, p. 8 - 90
s
1Press
– The selected range is marked.
2Press
– The marked area is activated.
– The entry is confirmed.
