Manitowoc Grove GMK 5250L User Manual

Operating elements for crane operation
8.1 Overview of the operating elements
Operating Instructions GMK5250L 3 302 633 en 8 - 77
27.09.2017

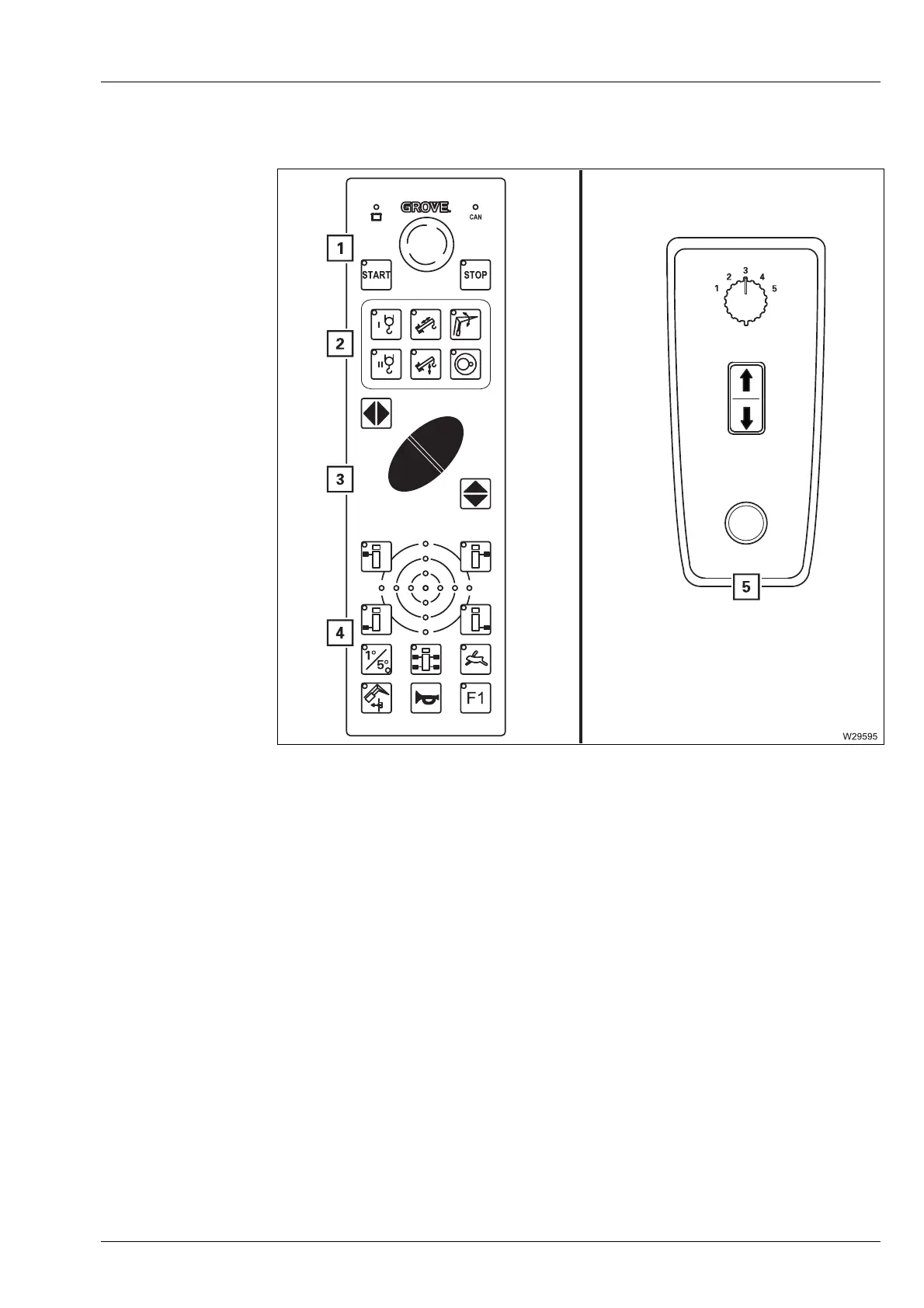

8.1.22 Hand-held controls
H
Required connections for the different movements; à p. 8 - 143.
s
1 Engine control panel à p. 8 - 144
2 Pre-select emergency operation
à p. 8 - 145
3 Function buttons
à p. 8 - 145
4 Outriggers control panel
à p. 8 - 78
5 Rigging lattice extension
1), 2)
1)
Additional equipment
2)
à Operating Instructions Lattice Extension
