Operating elements for crane operation
8.2 Brief description of the operating elements
8 - 144 3 302 633 en Operating Instructions GMK5250L
27.09.2017

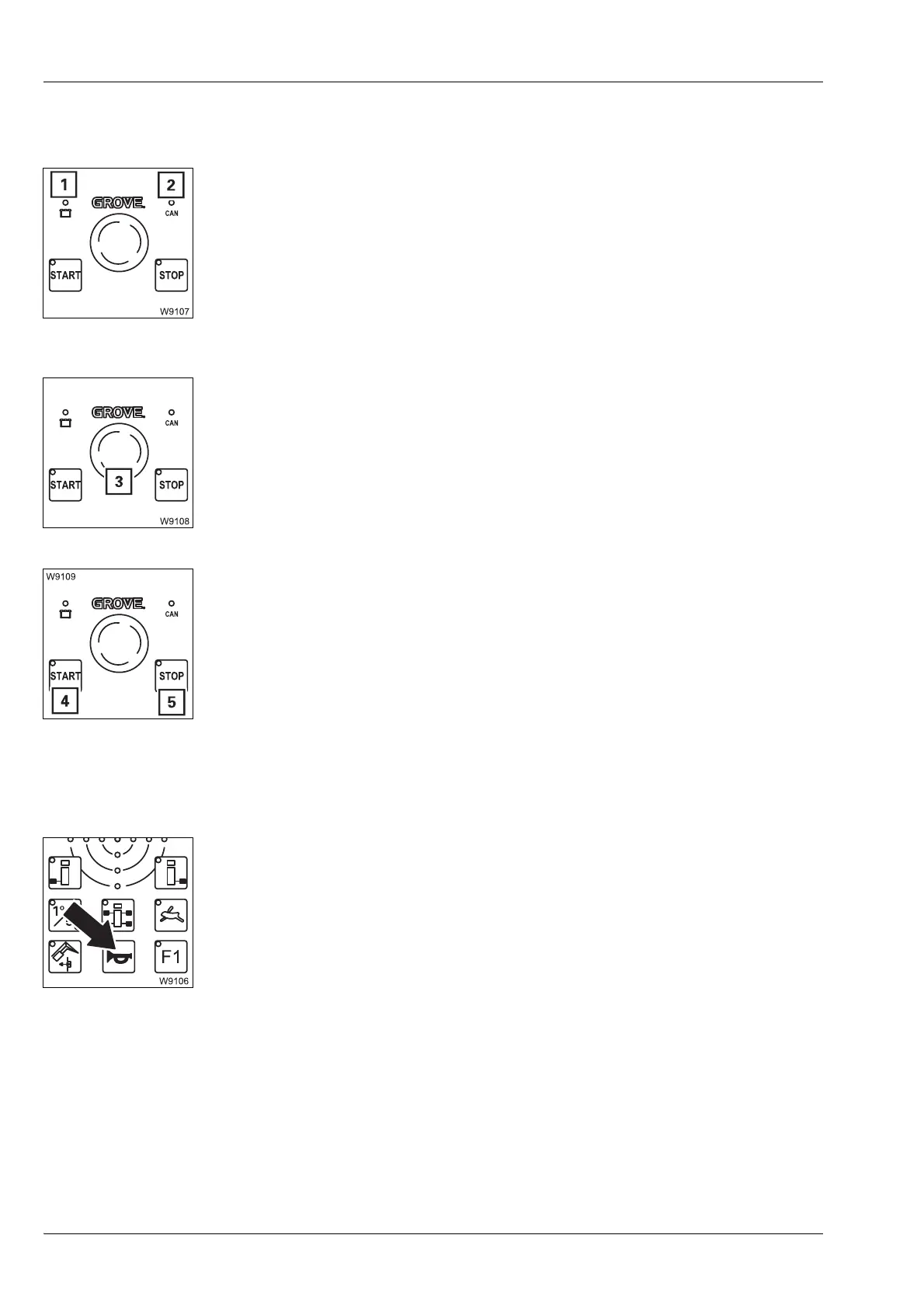

Engine control
panel
à Starting the engine – with the hand-held control, p. 9 - 8
Horn The ignition must be switched on.
1 Voltage monitoring
–On: Ignition on
– Off: Switch the ignition off
2 CAN monitoring
–On: Hand-held control connected – no malfunction –
goes out after 20 seconds
– Flashing: Hand-held control connected – malfunction
3 Emergency stop switch
May only be used in an emergency
–Press: Engine off – crane functions stop immediately,
Switch latches
– Turn engaged
switch:
Switch returns to initial position – crane
functions released
4 Engine START
– Press once: Engine on
5 Engine STOP
– Press once: Engine off
– Press once: – Hand-held control on the superstructure socket –
superstructure horn on
– Hand-held control on the carrier socket –
carrier horn on
