Rigging work
11.10 Rigging work on the main boom
11 - 104 3 302 633 en Operating Instructions GMK5250L
27.09.2017
11.10.5 Reeving and unreeving the hoist rope
You must reeve a certain number of rope lines, depending on the required
load bearing capacity. Four reeved rope lines correspond, for example, to
4-fall reeving;
à Possible reeving on the main boom, p. 11 - 113.
To reeve and unreeve the hoisting rope, you must remove the pocket lock.
After reeving you must reattach the pocket lock.

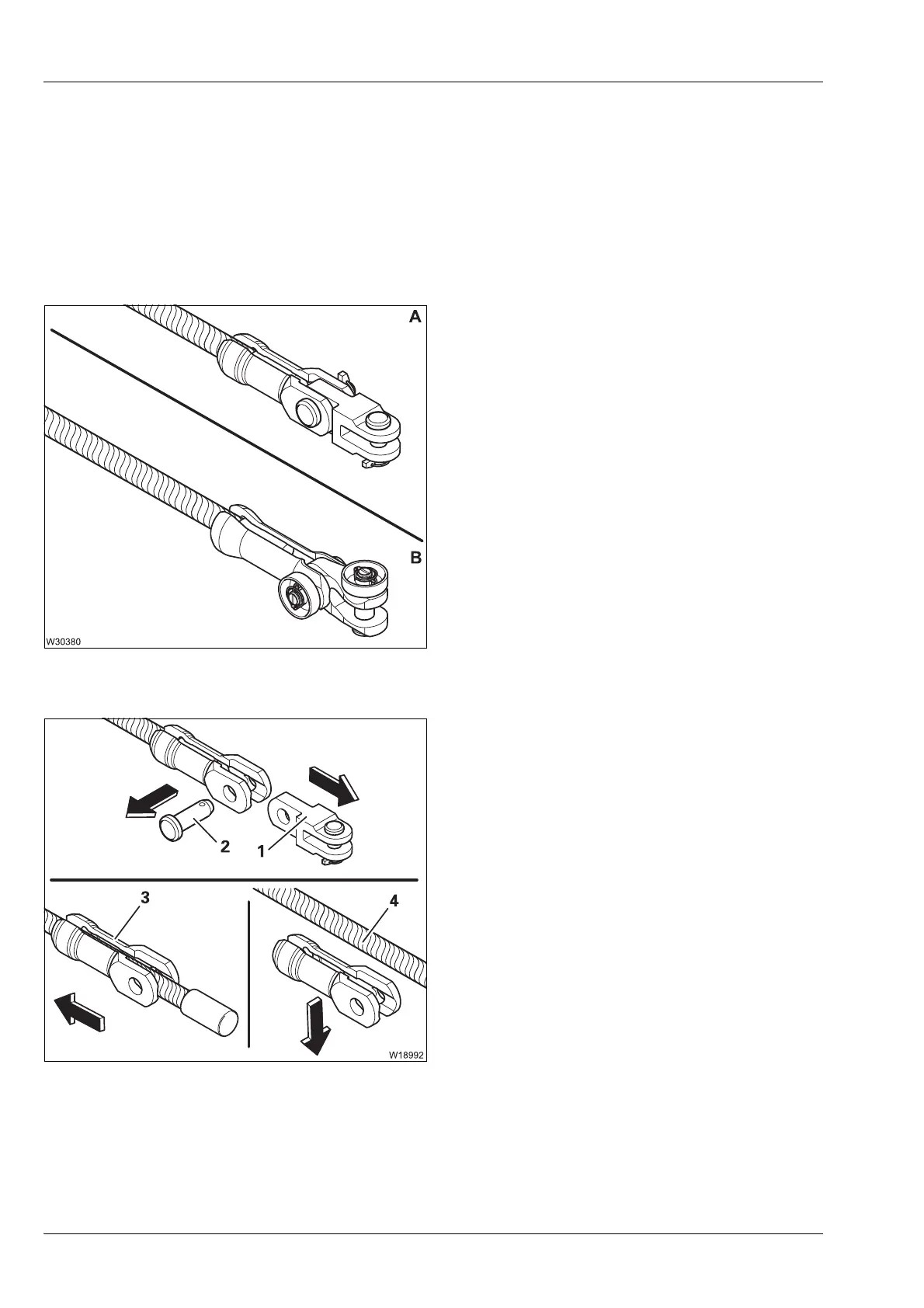

There are A or B versions.
Version A
Removing
• Pull the pin (2) and remove the fork
element (1).
• Slide the holder (3) back and remove it
from the hoist rope (4).
