Rigging work
11.10 Rigging work on the main boom
Operating Instructions GMK5250L 3 302 633 en 11 - 105
27.09.2017

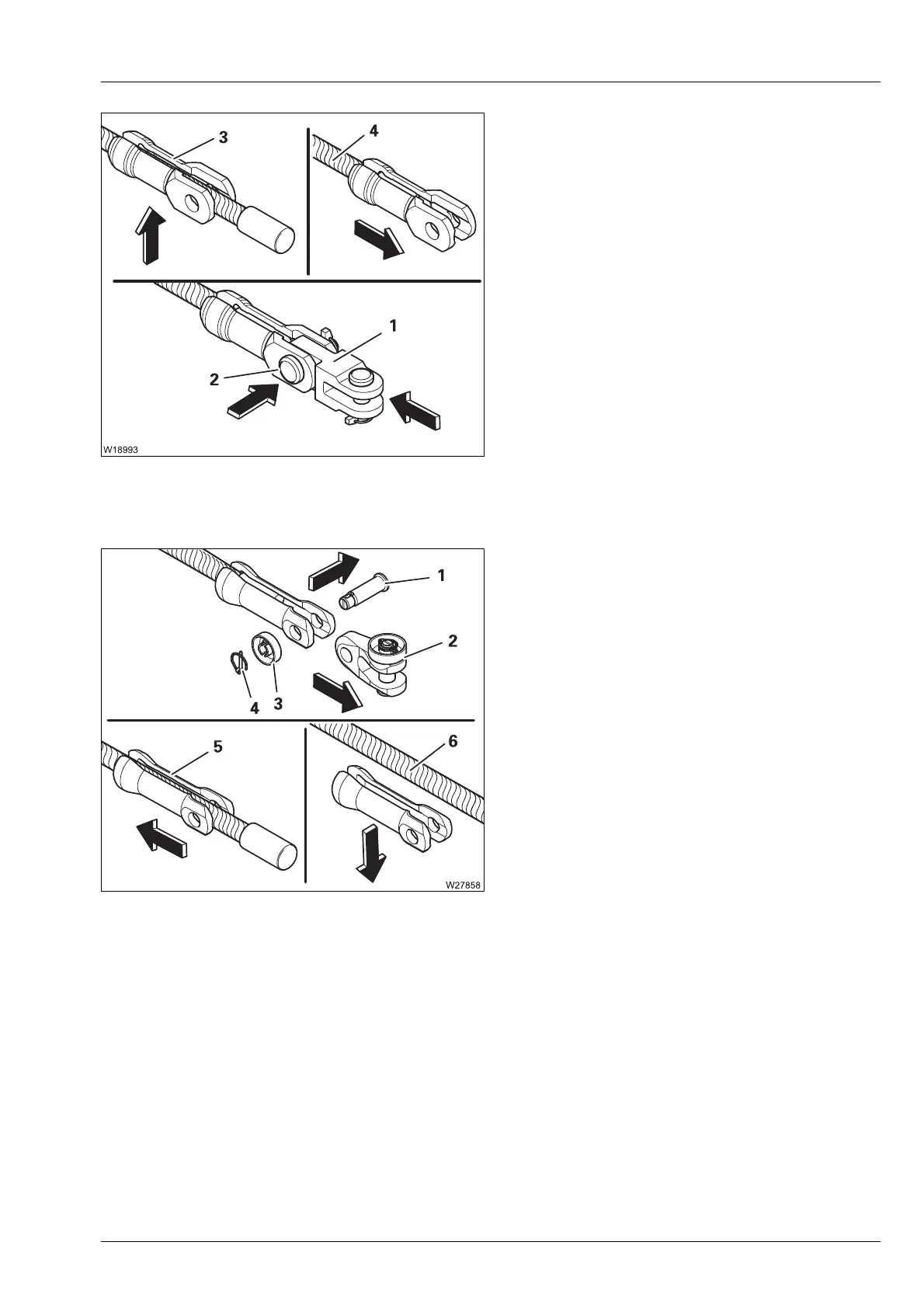

Positioning
• Insert the holder (3) and slide it onto the
hoist rope (4) as far as it will go.
• Fasten the fork (1) using the pin (2).
• Secure the pin using the linchpin.
Version B
Removing
• Remove the linchpin (4).
• Release the locknut (3) and pull out the
pin (1). Remove the bracket (2).
• Slide the padlock (5) back and remove it
from the hoist rope (6).
